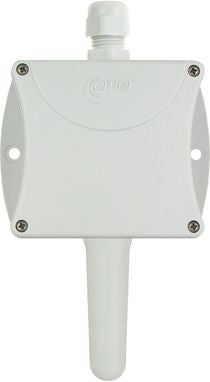

P0120 4-20mA Temperature Sensor Specification
- Output: 4-20mA
- Design: Industrial
- Temperature Measuring Range: -30 to +80°C
- Accuracy of temperature output: ±0.4°C
- Temperature operating range: -30 to +80°C
- IP protection: IP65
- Power: 9-30Vdc, current consumption approximately 6mA
- Dimensions: 88.5 x 148 x 39.5 mm (W x H x D), stem length 53 mm
- Weight: approximately 220g
Installation assistance available
P0120 4-20mA Temperature Sensor Dimensions
P0120 4-20mA Temperature Sensor Specification
- Output: 4-20mA
- Design: Industrial
- Temperature Measuring Range: -30 to +80°C
- Accuracy of temperature output: ±0.4°C
- Temperature operating range: -30 to +80°C
- IP protection: IP65
- Power: 9-30Vdc, current consumption approximately 6mA
- Dimensions: 88.5 x 148 x 39.5 mm (W x H x D), stem length 53 mm
- Weight: approximately 220g
Installation assistance available
P0120 4-20mA Temperature Sensor Dimensions
- Regular price
- £112.50
