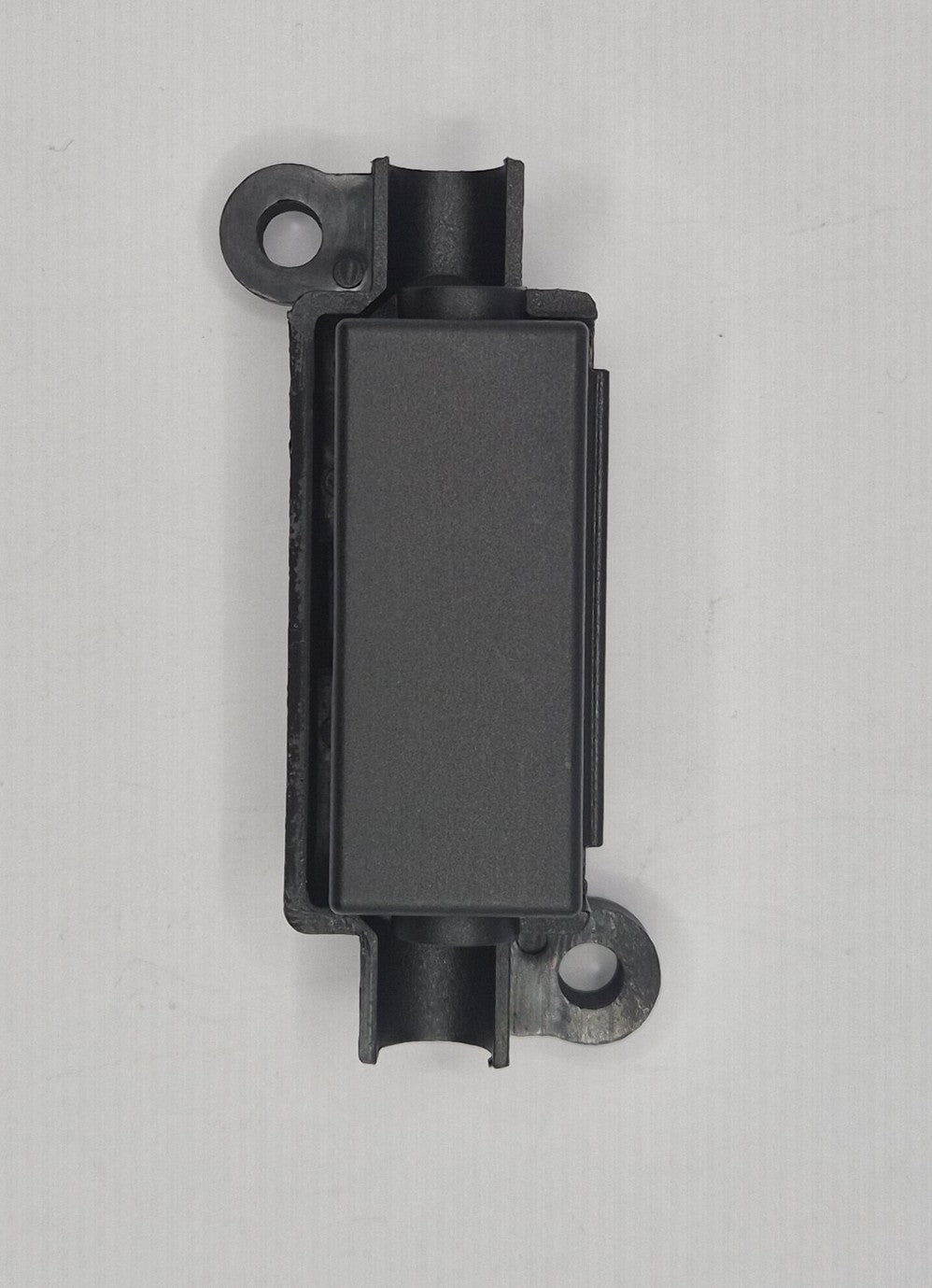

MIDI / Strip Fuse Holder
This MIDI / strip fuse holder provides a secure and convenient way to install a high-current fuse into a DC electrical circuit.
The inline design allows the fuse holder to be installed directly into the power cable, making it suitable for automotive, battery, marine, power distribution and other high-current applications.

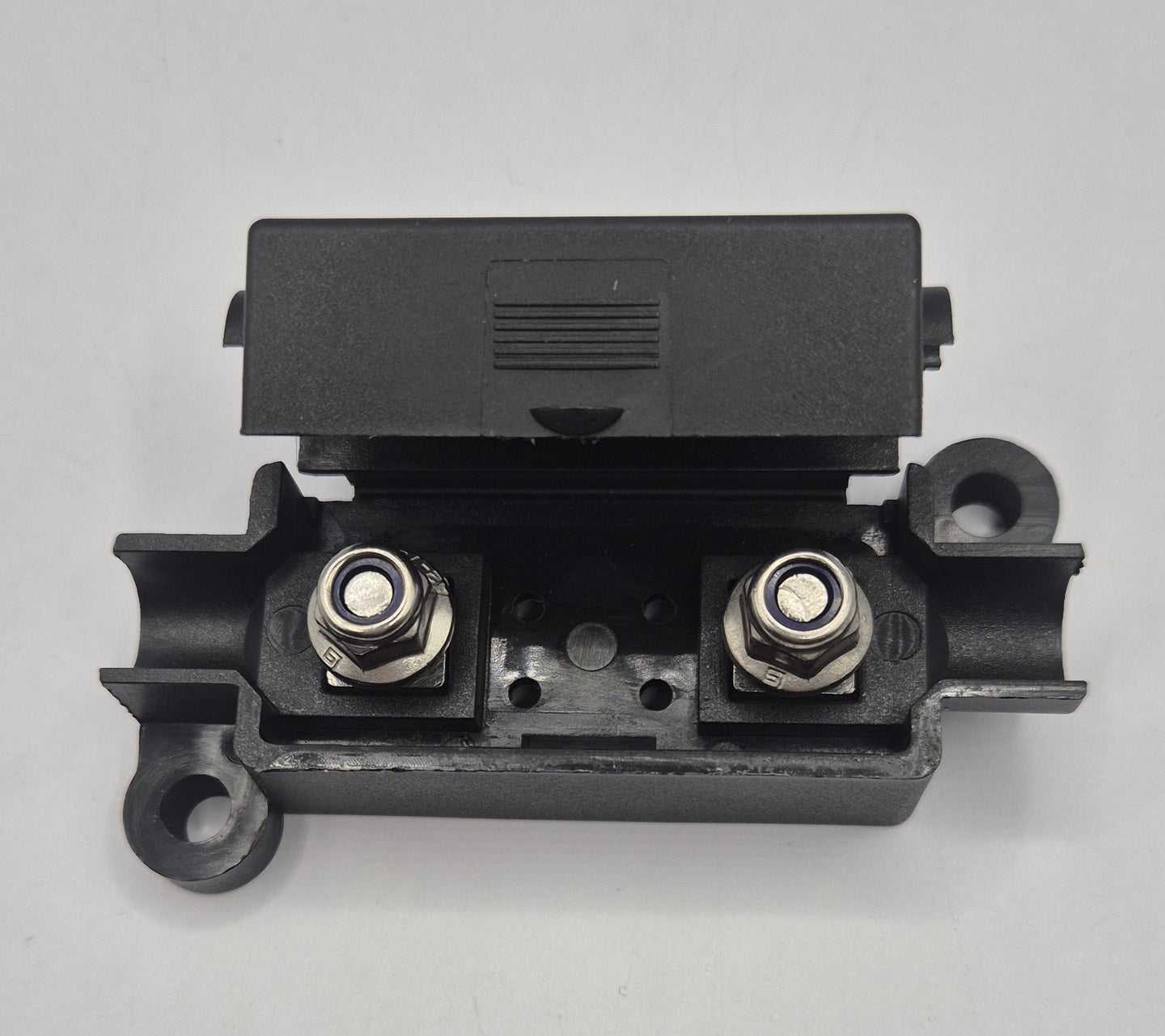

The holder uses 2 × 5mm stud terminals for connecting the power cables and accepts cable sizes up to 16mm². With a maximum current rating of 125A and a voltage rating of 32V DC, it is suitable for a wide range of 12V and 24V electrical systems.
The durable PA66 housing and wide operating temperature range of –40°C to +125°C make this fuse holder suitable for demanding installation environments.
Applications
- Automotive electrical systems
- Car and vehicle battery circuits
- Marine electrical systems
- 12V and 24V power systems
- Battery protection
- Inverters and power distribution
- Auxiliary power circuits
- High-current electrical installations
- DIY and professional electrical projects

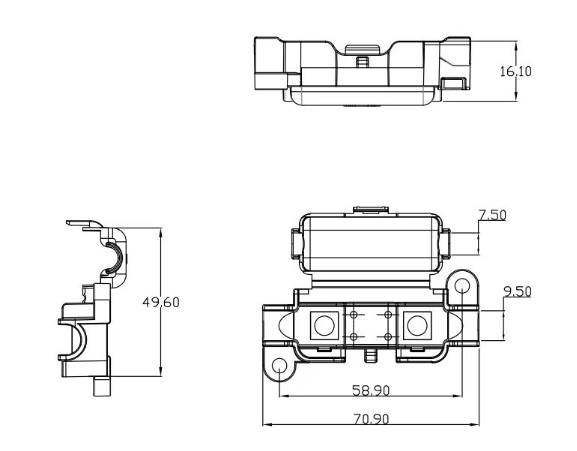

Dimensions
Technical Specifications
| Specification | Details |
|---|---|
| Fuse Type | MIDI / Strip |
| Maximum Current | 125A |
| Voltage Rating | 32V DC |
| Cable Size | 16mm² maximum |
| Connection | 2 × 5mm studs |
| Mounting | Inline |
| Mounting Hole | 4.7mm |
| Number of Fuses | 1 |
| Body Material | PA66 |
| Operating Temperature | –40°C to +125°C |
| Protection Rating | IP40 |
| Dimensions | 70 × 37 × 23mm |
| MOQ | 1 |
Please select a fuse with the correct current rating for your application and ensure the installation is suitably protected and rated for the expected load.
- Regular price
- £3.95
