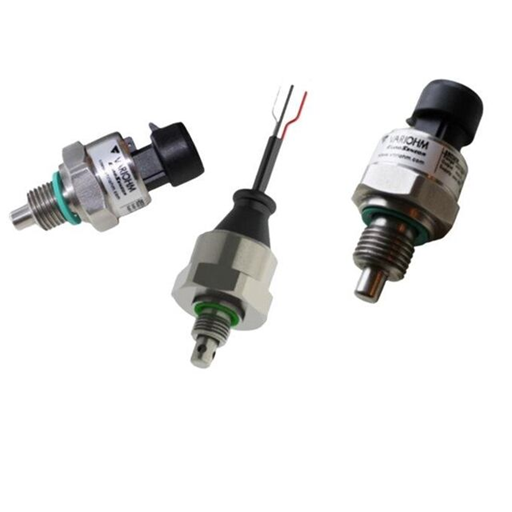

ASL Linear temperature sensor is a popular and established selection for the Autosport industry. With a popular linear voltage output of 0.5V to 4.5V

It has a linear output of 0.5Vdc to 4.5Vdc across a -40°C to 150°C temperature range

The ASL Linear Temp Sensor converts the PT100 RTD resistance temperature element into an accurate Ratiometric 0.5 to 4.5Vdc output temperature sensor.

A hardy robust and reliable sensor designed specifically for the Autosport industry

Linear Output ASL Temp Sensor Overview

• Temperature Measurement Range: -40°C ~ 150°C
• Output Type: Analogue Voltage
• Voltage Supply: 5Vdc or 10-32Vdc
• Accuracy: 1%
• Sealing: IP67
• Current Consumption:<7.5mA
• PT100 element

Linear Output ASL Temperature Sensor Specification

• Electrical Output: Ratiometric 0.5V to 4.5V
• Voltage Supply: 5V
• Current consumption: <7.5mA
• Electrical connection:

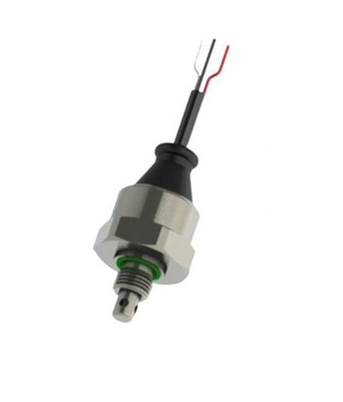

  •  600mm Cable
  • Miniature connector EN175301-803-C
  • Packard Metripac
  • M12x1 Round connector
• Temperature Connection: M10 Probe
• IP Rating: IP67

Linear Output ASL Temp Sensor Output Table

Below is an example of the linear output

Linear Output Temperature Sensor Dimensions

Articles on Ratiometric output

View our Ratiometric output article

Customisation ASL Temp Sensors Available

Please get in touch for any customisation or new design requests
