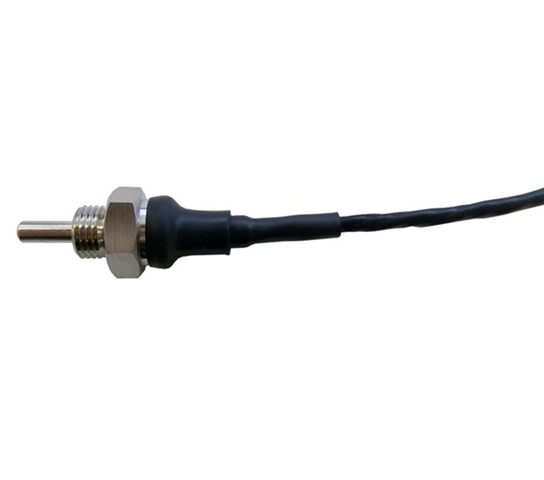

The ETP-AM-SP-100 ASL temperature probe provides a cost-effective measurement solution where heat, dust and moisture are prevalent.

This Autosport temperature sensor and Autosport is available with PT100 , PT1000 and thermistor elements

This Autosport temperature sensor is particularly suitable for demanding temperature
monitoring applications on vehicles it has a fast response time and wide environmental temperature range

The ETP-AM-SP-100 well-equipped for measurement of liquids and gases used in medical equipment, test machinery, industrial instrumentation and process control systems.

ASL Temperature sensor specifications

• Temperature element: Thermistor, PT100B or PT1000A
• Accuracy
  • PT100B ± 0.3K
  • PT1000A ± 0.15K
  • Thermistor ± 0.3 K @ +25 °C Beta Value 3435
• Working Temperature Range: -55°C to 180°C , short term 230°C
• IP Rating: IP67
• Response Time in still wate: 7s
• Material: 316 Stainless Steel
• Connection: FEP 4 core AWG24, tinned copper shield, 3.2 mm OD
• Heatshrink: Elastomer
• Thread: M10 , contact for the M12 version

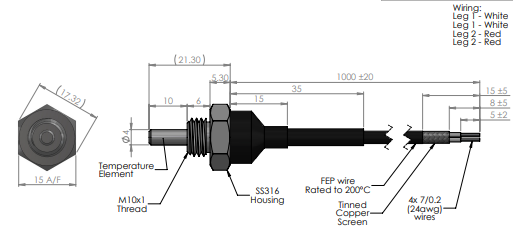

ETP-AM-SP-100- M10 Dimensions

for the M12 version please contact
