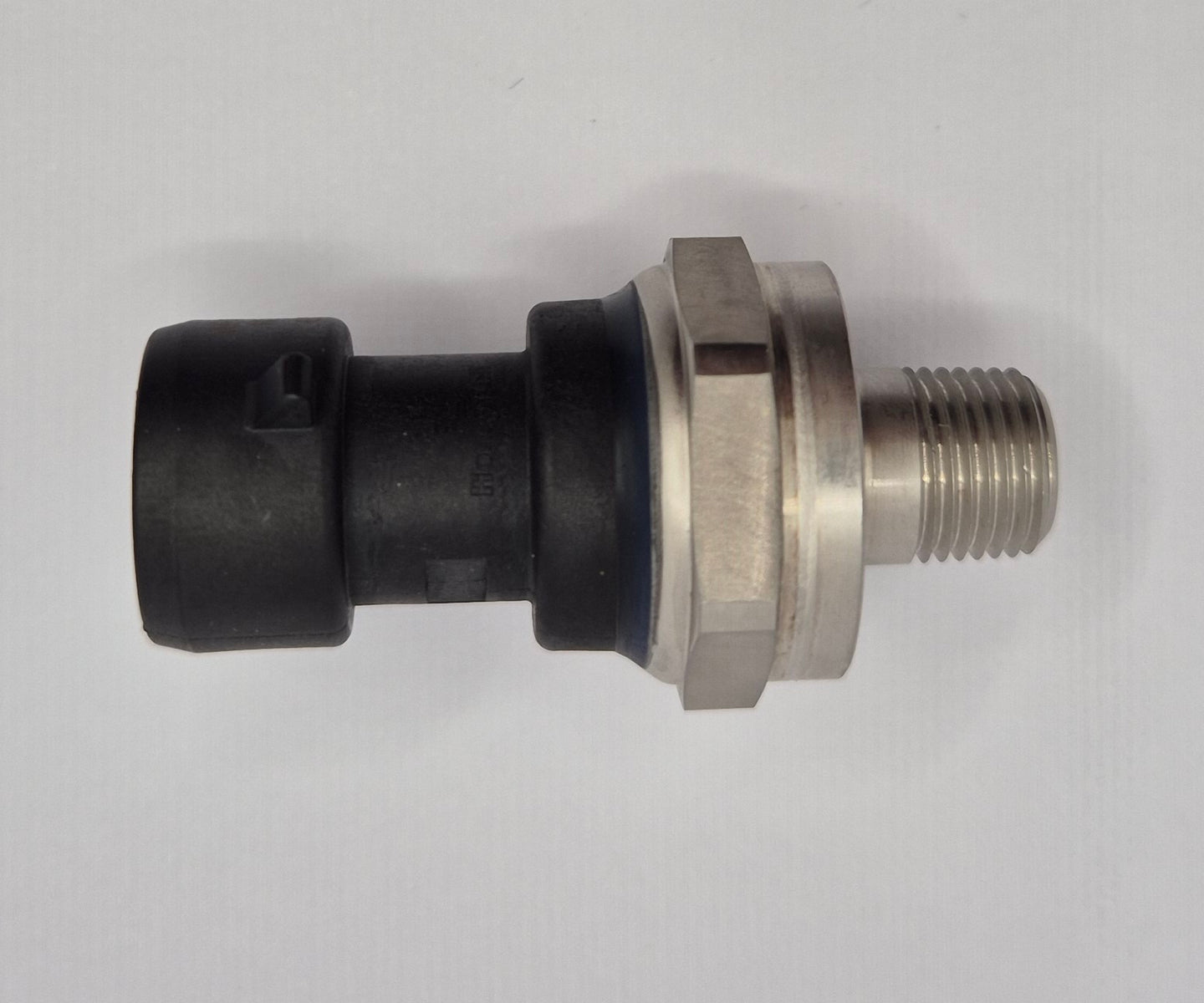

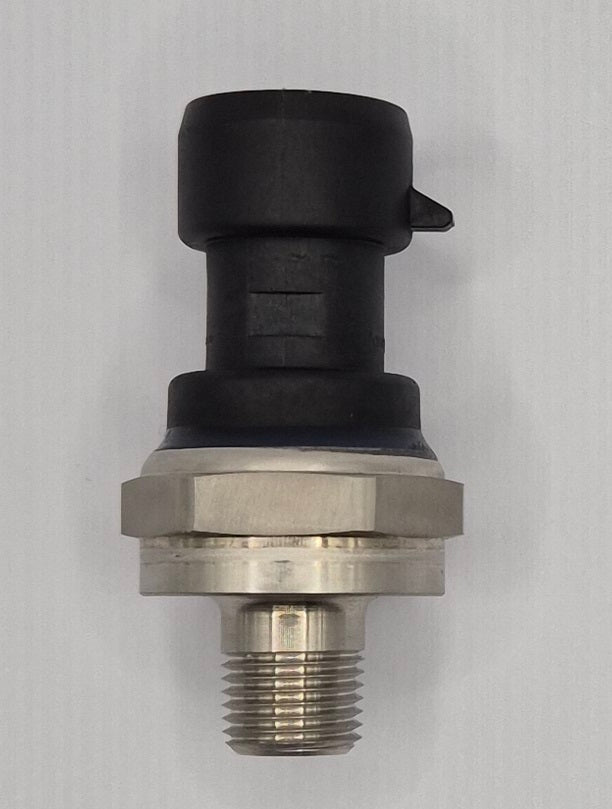

The compact Stainless Steel Series coolant pressure sensors are media-isolated pressure transducers. They are made with a hardy and reliable stainless steel body

✔ Coolant Fluid Media-isolated stainless steel pressure transducer
✔ 0.5–4.5 V output
✔ 5 V supply (4.75–5.25 V)
✔ Multiple pressure range options (from ~29 to 725 PSI)
✔ Multiple thread/port options (G1/4, NPT 1/8, NPT 1/4, M12)
✔ Fast response time: ~1 ms
✔ High accuracy: ±0.15 % FSS BFSL
✔ Wide temperature range: −40 °C to +125 °C
✔ Suitable for Coolant , Fluid and automotive applications
✔ Quick delivery from the UK
✔ Quality guaranteed

A piezoresistive pressure capsule output signal is converted using an ASIC (Application
Specific Integrated Circuit) and conditioned to output 0.5 to 4.5 Voltage output

The electronics and pressure sensor are in a compact stainless steel housing.

Articles and Guides

What is Ratiometric 0.5 to 4.5 output

How to use 0.5 to 4.5V pressure sensors

Specification

• Pressure range: 0 to ranges of  29 to 100PSI
• Supply Voltage: 4.75V to 5.25V
• Electrical Connection : Metric-Pack 150
• Pressure Port : G1/4 , NPT 1/8 NPT 1/4 M12
• Response Time :1ms
• Output Resolution: 0.05% FS Pressure
• Current Consumption: 6.5mA
• Material: Stainless Steel
• Output: Ratiometric 0.5 Vdc to 4.5 Vdc
• Operating temperature: -40°C to 125°C
• Accuracy:±0.15%FSS BFSL
• Long term stability: ±0.25 %FS

Applications

These Stainless Steel 0.5V to 4.5V transducers are especially developed for use with the auto sport industry for aggressive Coolant fluids

Industrial Pumps

• Water
• Hydraulic fluids
• Compressed Air
• HVAC
• Refrigerants

Autosport and Automotive

• Diesel
• Engine oil
• Brake fluid
• Coolant

Temperature Compensation

The MIP Series transducers are fully calibrated and temperature compensated from -40°C
to 125°C [-40°F to 257°F].

Stainless Steel Coolant Pressure Sensor Dimensions

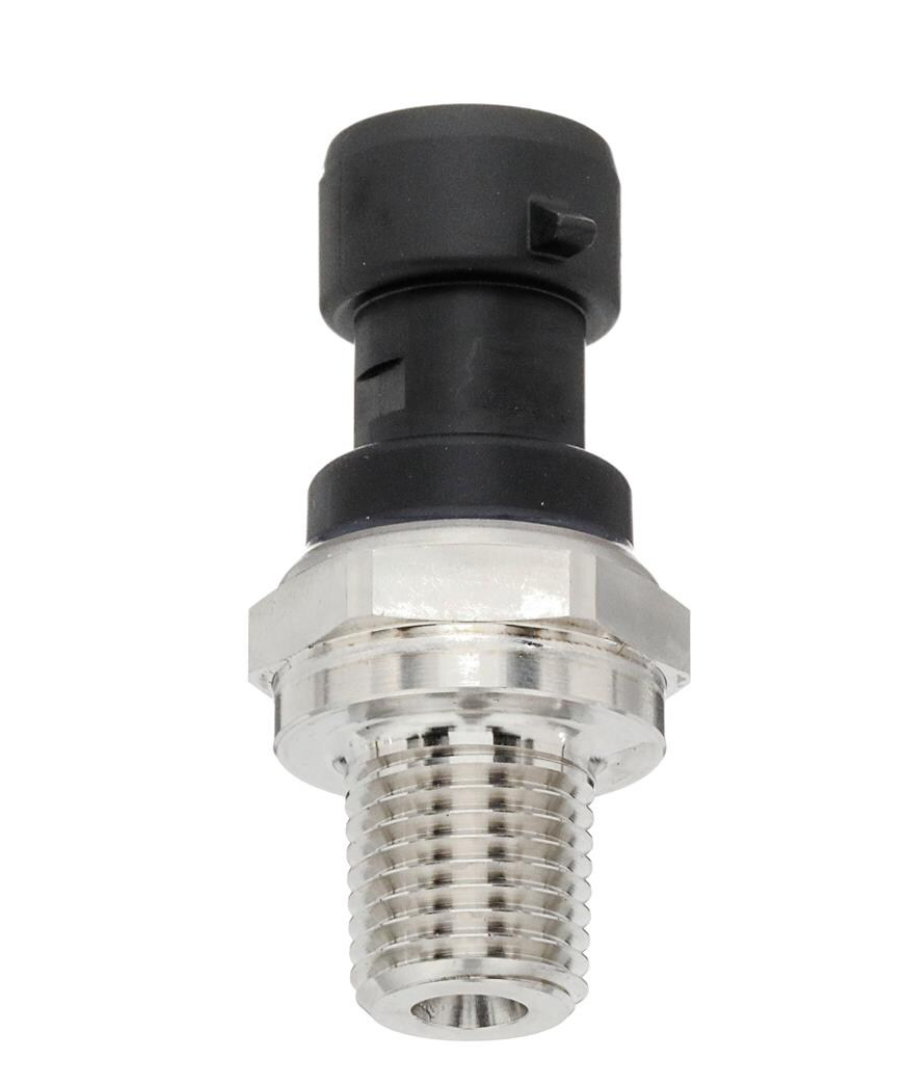

1/4" male NPT

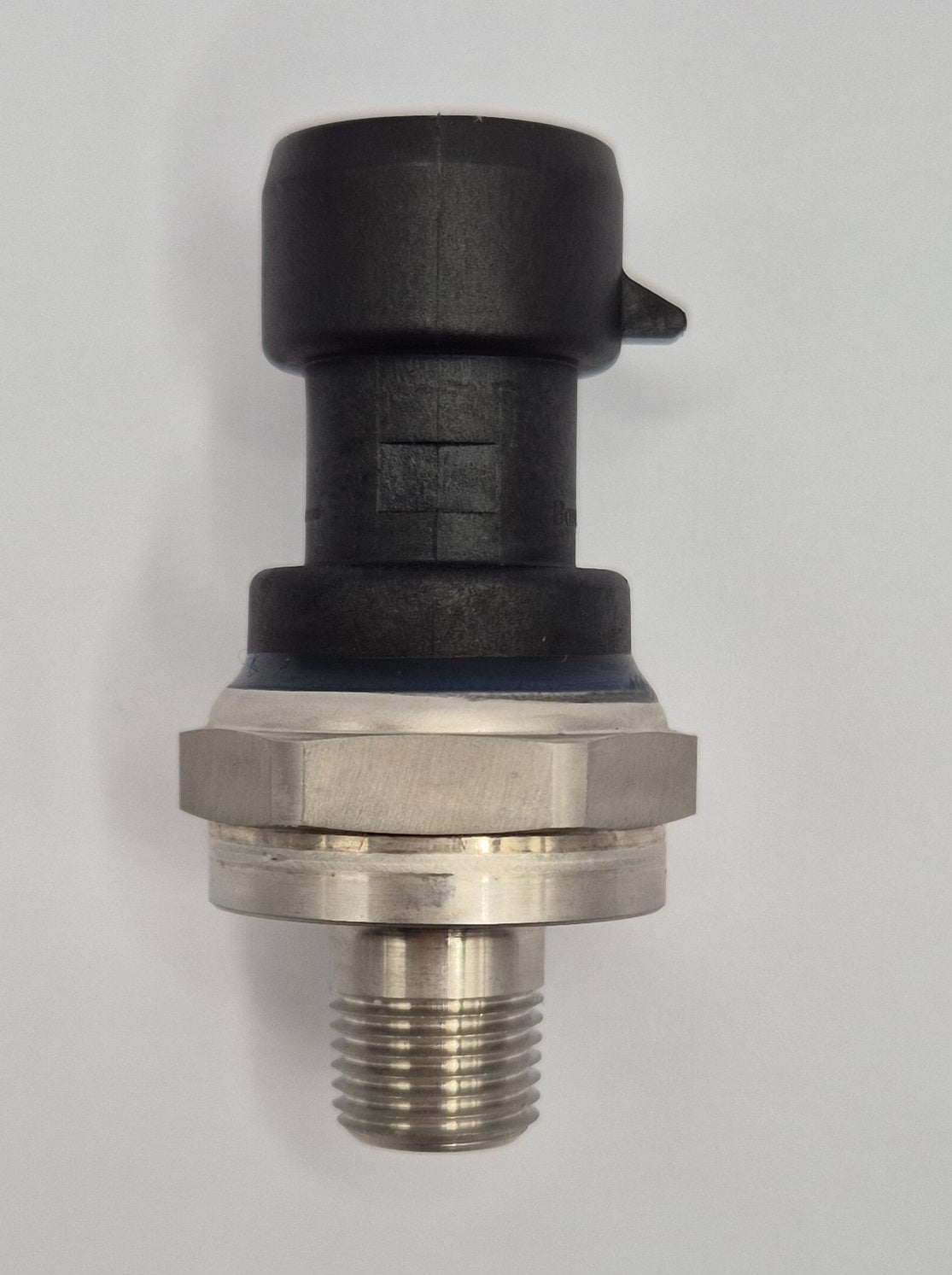

1/8" Male NPT

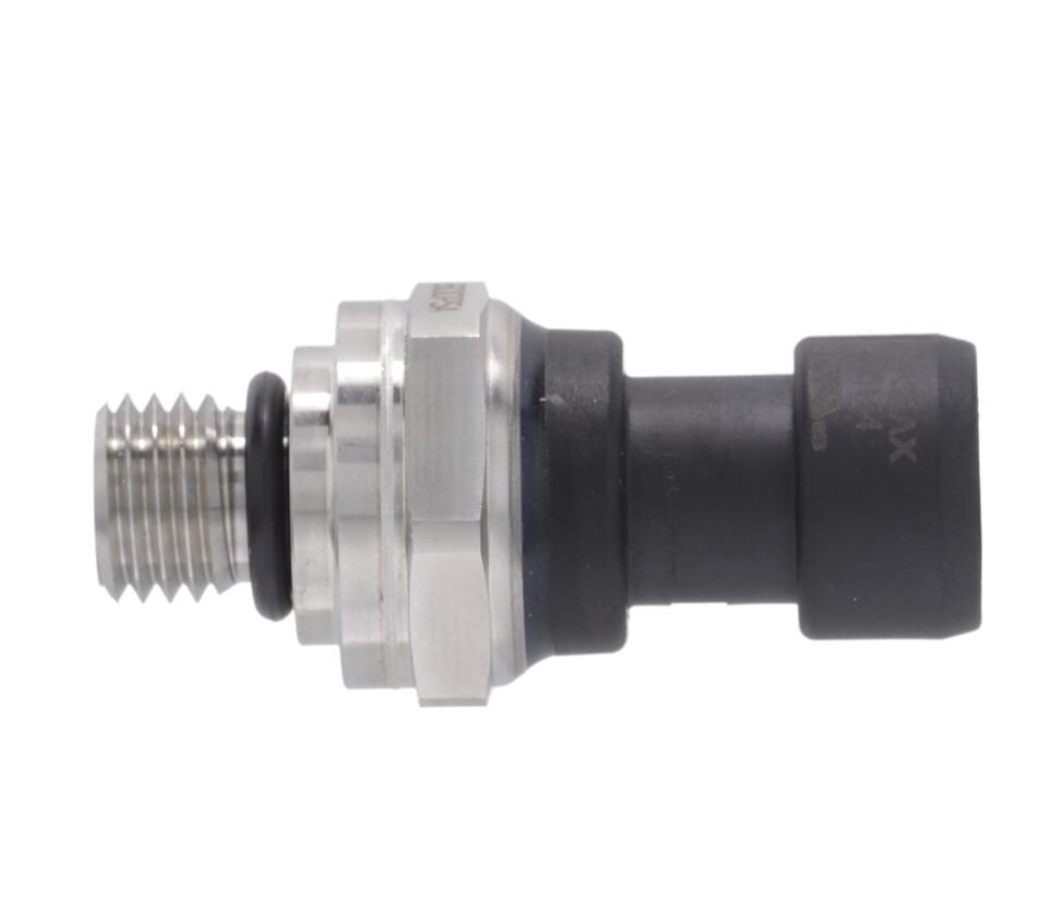

M12 Thread

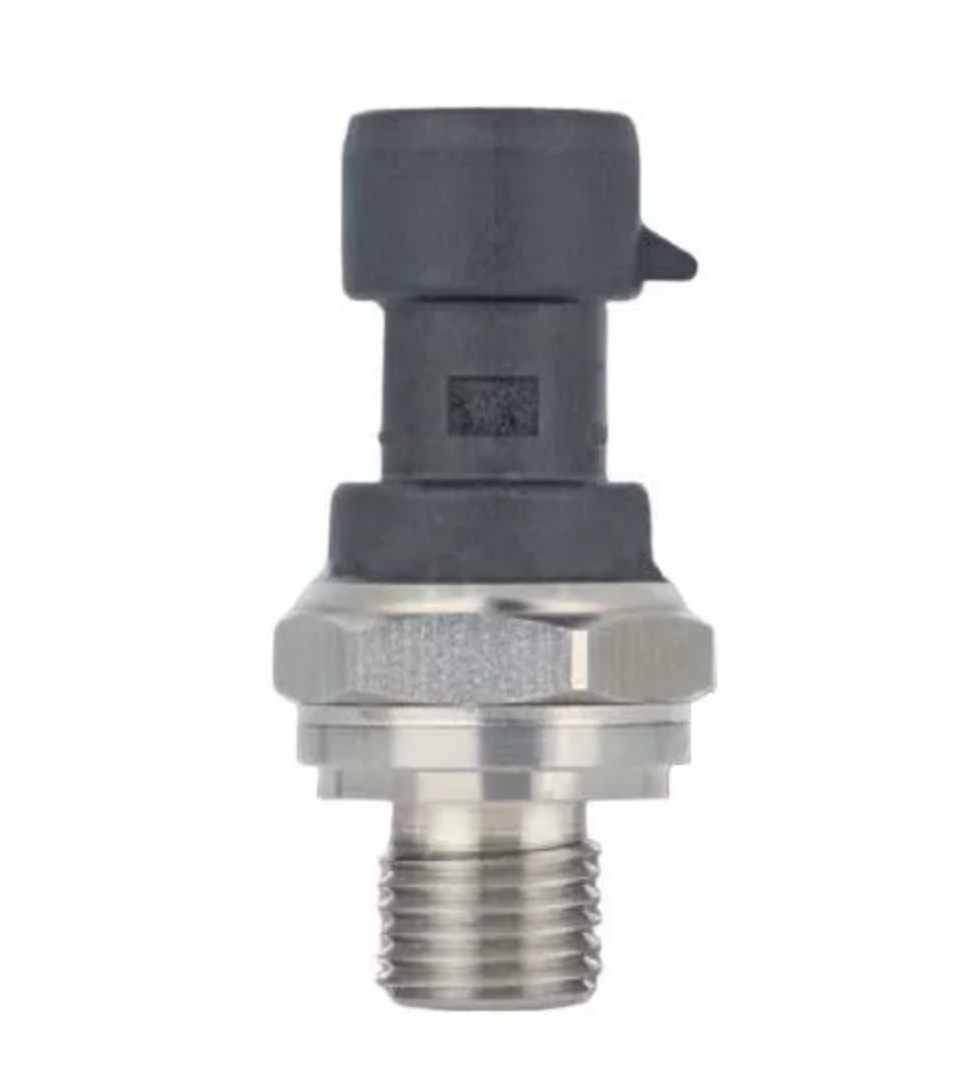

G1/4 Thread

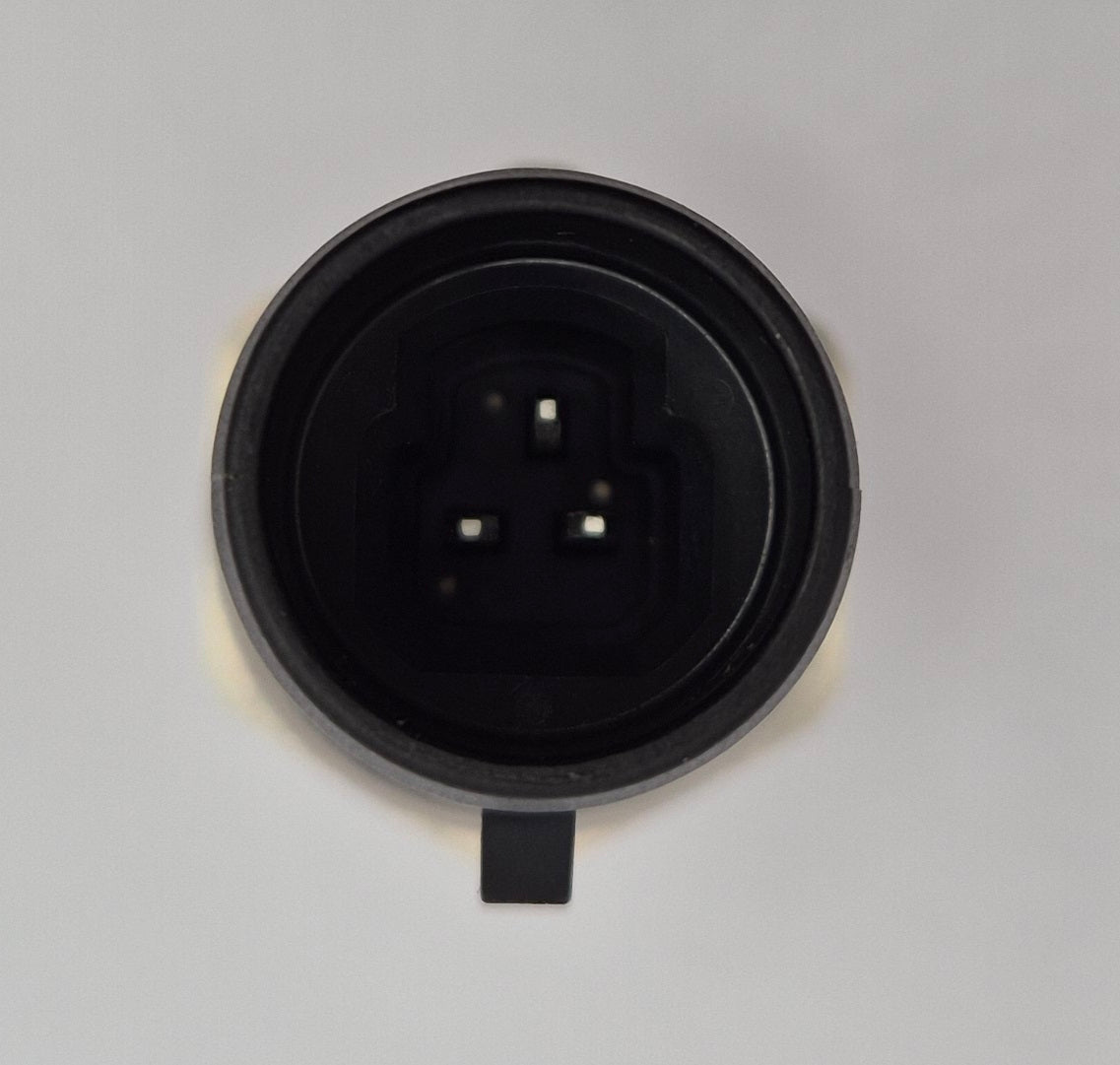

0.5 to 4.5V Metri-Pack 150 Pinout
