OSL Vented Junction Box – Key Features

✔ IP65 Waterproof Enclosure providing reliable protection against dust and water ingress
✔ Integrated Pressure Venting System to balance atmospheric pressure changes for accurate sensor performance
✔ Anti-Condensation Protection helping prevent internal moisture build-up
✔ Dual M16 Cable Glands for secure, weatherproof, and tidy cable entry
✔ DIN Rail Terminal Connections for fast, simple, and efficient wiring installation
✔ Sealed Screw-Fix Lid Design ensuring durability and long-term environmental protection
✔ Quick Installation System a fix to a wall and use the electrical terminals to extend the cable
✔ Cost-Effective Cable Compatibility allowing use of standard cables instead of specialised vented cables

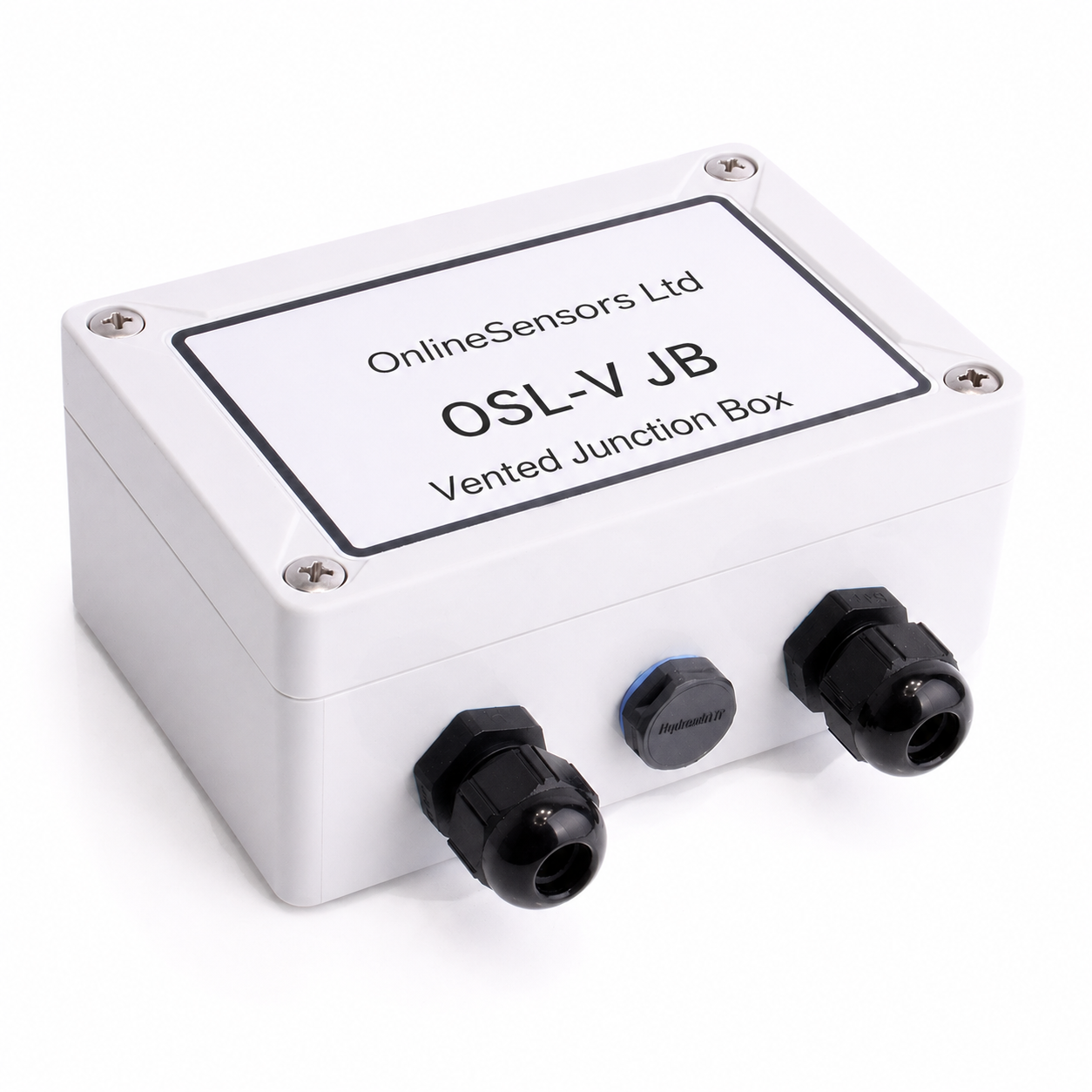

OSL-V-JB Vented Junction Box Overview

OSL-V-JB vented junction box is designed for submersible level sensors, providing secure termination and extending level sensor cables in a protected enclosure.

The integrated venting system allows the internal air pressure to equalise with ambient atmospheric conditions, helping maintain accurate sensor readings while preventing moisture from entering the system. This reduces the risk of condensation affecting sensitive electronics.

Housed in a durable IP65-rated enclosure, the unit offers strong protection in demanding environments. Inside, DIN rail terminals enable straightforward and efficient connection between sensor and extension cables using simple screw terminals.

The design also allows for the use of more economical standard cables, helping reduce overall installation costs without compromising performance.

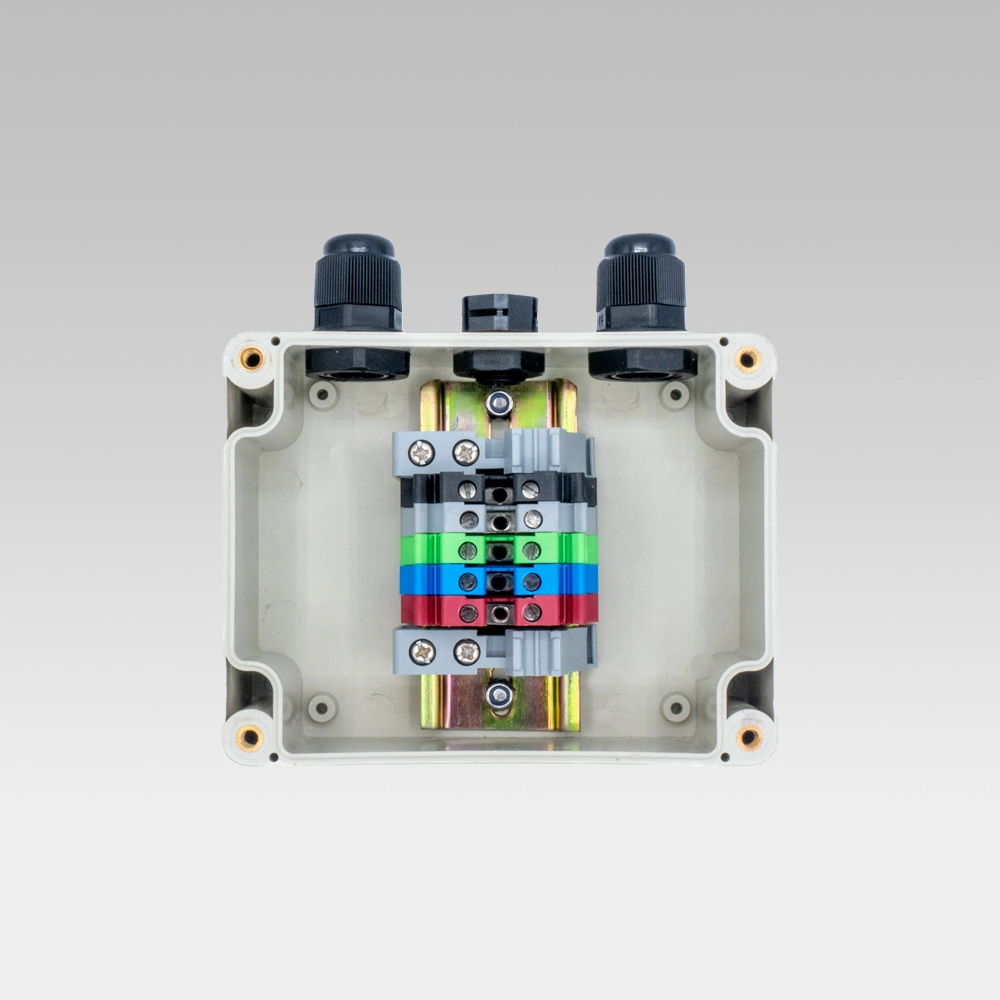

Vented Junction Box Terminals

Sensor Wiring Example

Dimensions
