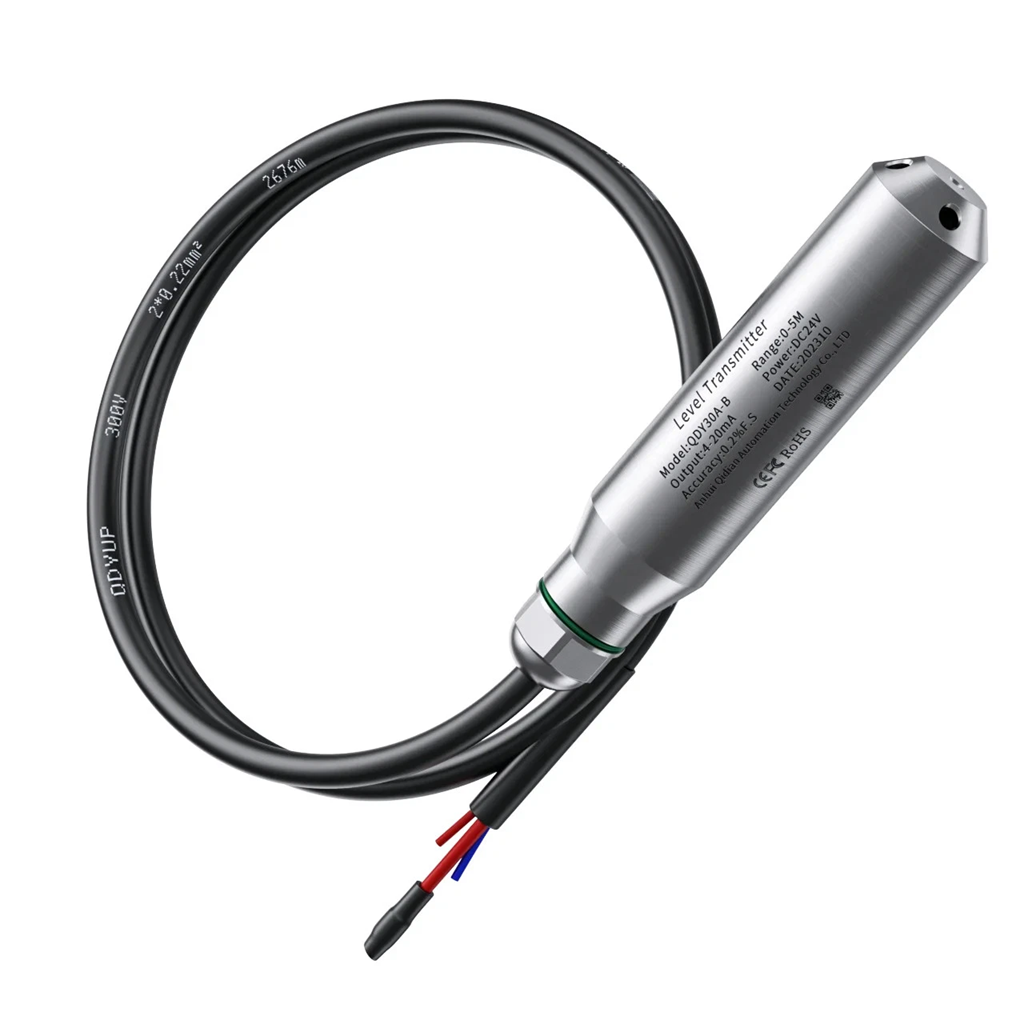

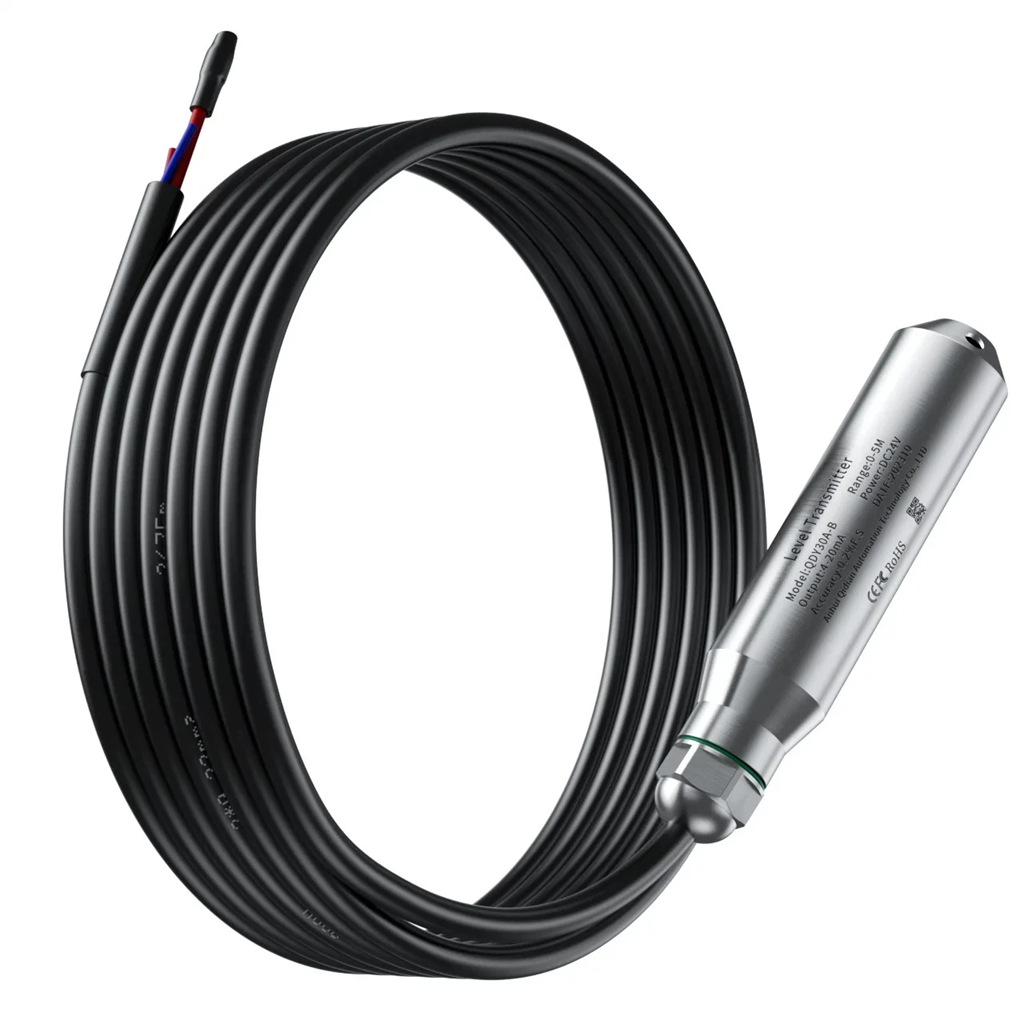

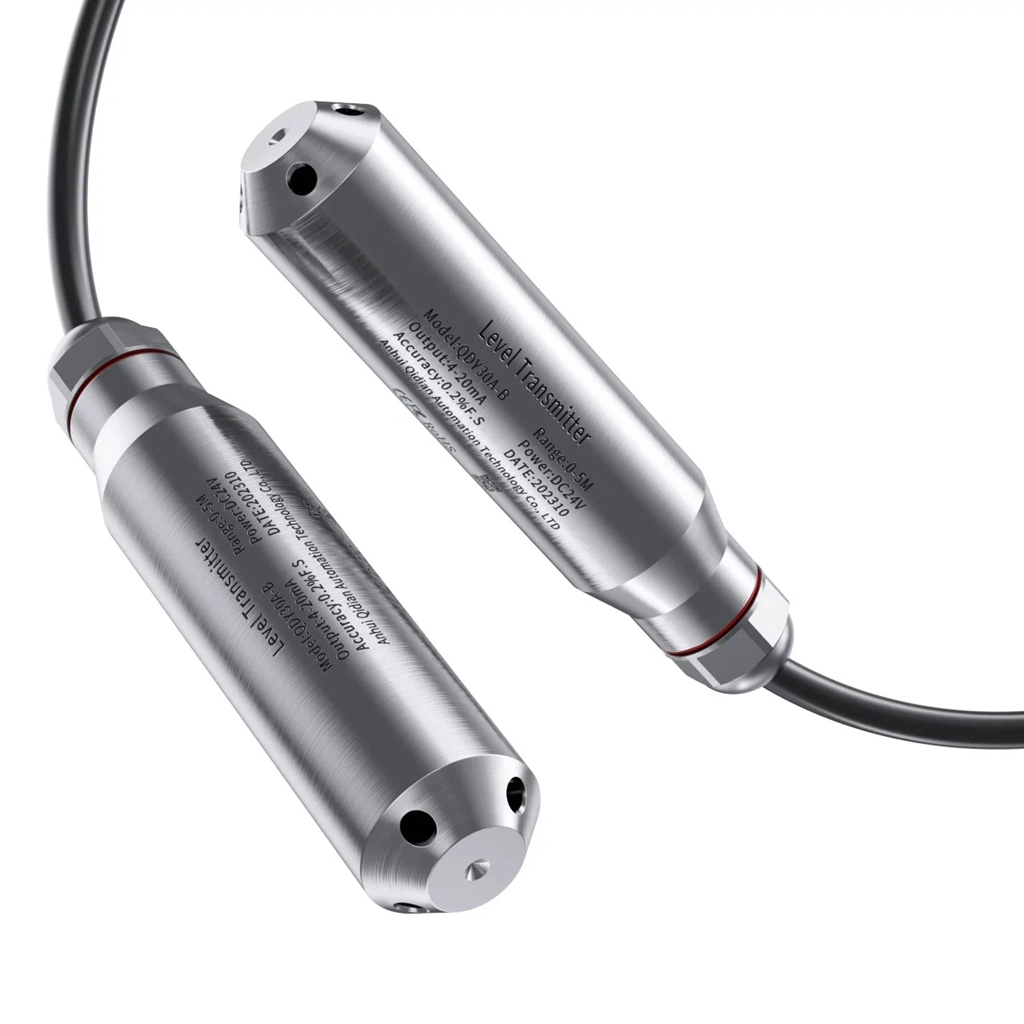

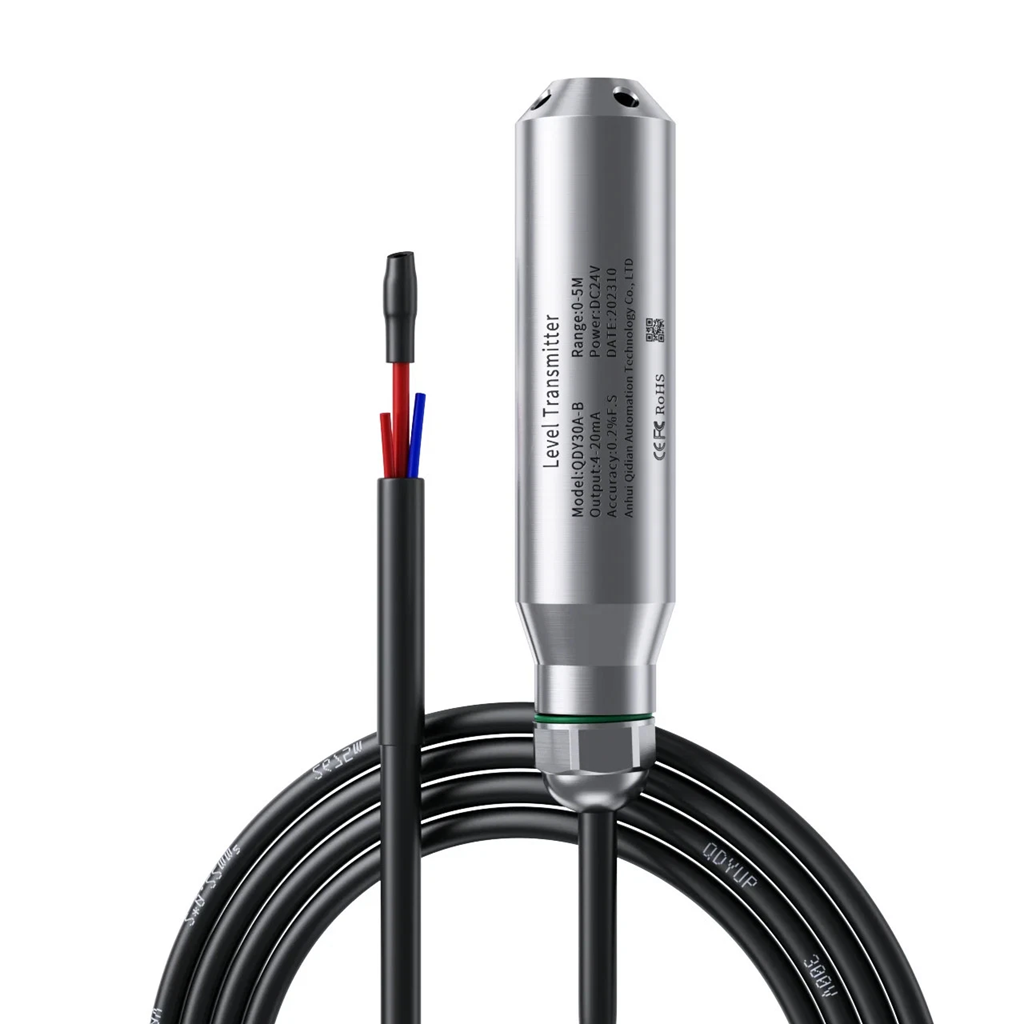

Liquid Level Sensor Low Cost
✔ Selectable Output 4-20mA 0.5 to 4.5V 0-10V 0-5V
✔ Ideal for Arduino and Raspberry Pi
✔ Submersible depth sensor for tanks, boreholes, and reservoirs
✔ Accurate Indicative measurement for cost effective projects
✔ Simplified integration without complex analogue signal conditioning
✔ Cost Effective to suit hobbyist application
✔ 30 Day Return Quality Guaranteed for reliable performance
| Parameter | Specification |
| Sensor Type | Submersible Level Sensor |
| Measuring Range | 1–5m) |
| Output Types | 4–20mA, 0–5V, 1–5V, 0–10V (three-wire) |
| Power Supply Voltage | DC 24V / DC 12V / 5V for 0.5 to 4.5V output |
| Response Time | ≤1ms (up to 90% FS) |
| Medium Temperature | -40°C to 60°C |
| Ambient Temperature | -40°C to 85°C |
| Storage Temperature | -40°C to 125°C |
| Stable Performance | ±0.2% FS/year |
| Zero Temperature Drift | ±2% FS |
| Sensitivity Temperature Drift | ±2% FS |
| Pressure Type | Gauge, Absolute |
| Process Connection | Submersible, directly tested in liquid |
| Shock Resistance | 100g (11ms) |
| Insulation Resistance | 100MΩ / 250VDC |
| Media Compatibility | Various media compatible with 316L stainless steel |
| Housing Material | 304L Stainless Steel 316L diaphragm |
| Application | Water tanks, wells, reservoirs, industrial liquid level monitoring |
| Installation Type | Fully submersible |
| Protection Rating | IP68 |
Level Sensor Outputs
- 4-20mA
- 0.5 to 4.5V
- 0-10V
- 1-5V
- 0-5
Lead Time 3 - 10 working Days
Level Range
- 0-5mWG
Application Examples
- Wnvironmental monitoring.
- Cost effective Arduino level sensor
- Arduino level monitor for pools
- Lake measurement.
- Borehole measurement.

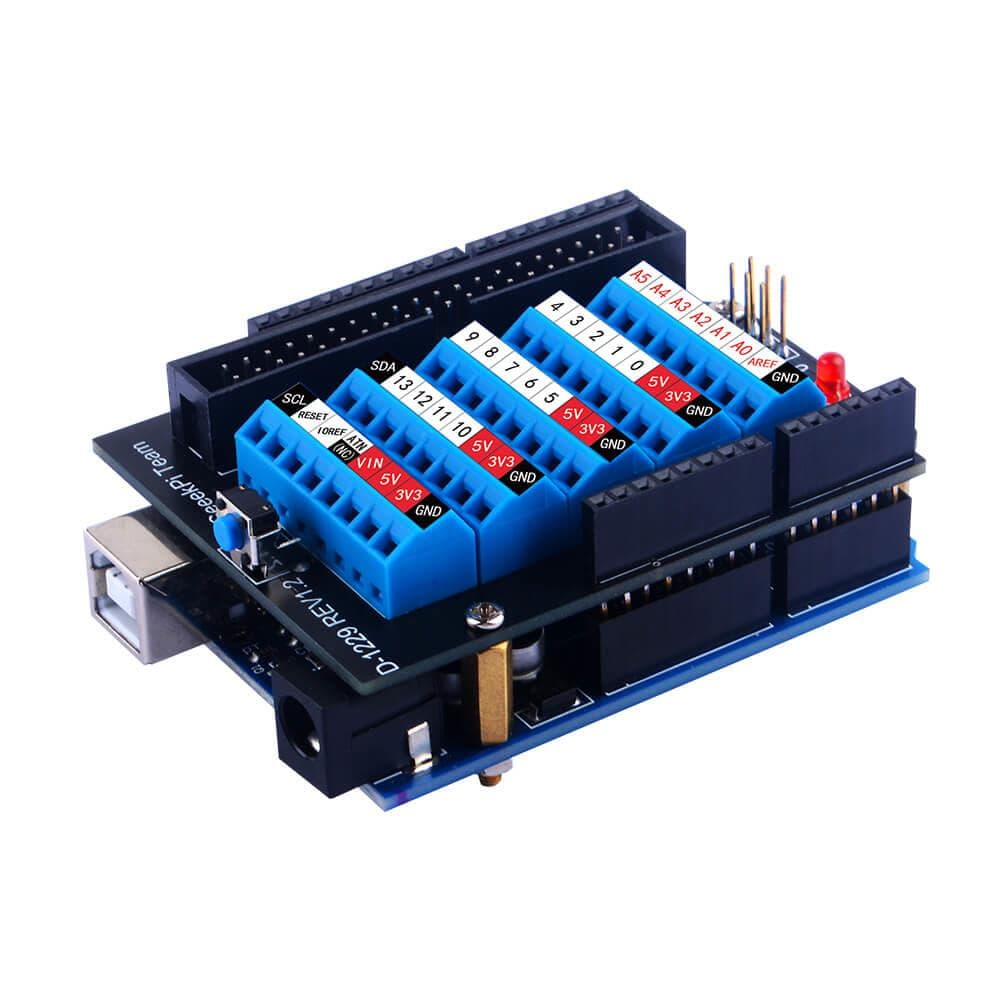

Arduino Level Sensor
The 0.5 to 4.5V output version can be powered from the 5V from the arduino uno. the output signal is then wired int any of the Analog inputs.
Example code is supplied and twill quickly have the level reading output to the serial port.
Liquid Level Sensor Low Cost
✔ Selectable Output 4-20mA 0.5 to 4.5V 0-10V 0-5V
✔ Ideal for Arduino and Raspberry Pi
✔ Submersible depth sensor for tanks, boreholes, and reservoirs
✔ Accurate Indicative measurement for cost effective projects
✔ Simplified integration without complex analogue signal conditioning
✔ Cost Effective to suit hobbyist application
✔ 30 Day Return Quality Guaranteed for reliable performance
| Parameter | Specification |
| Sensor Type | Submersible Level Sensor |
| Measuring Range | 1–5m) |
| Output Types | 4–20mA, 0–5V, 1–5V, 0–10V (three-wire) |
| Power Supply Voltage | DC 24V / DC 12V / 5V for 0.5 to 4.5V output |
| Response Time | ≤1ms (up to 90% FS) |
| Medium Temperature | -40°C to 60°C |
| Ambient Temperature | -40°C to 85°C |
| Storage Temperature | -40°C to 125°C |
| Stable Performance | ±0.2% FS/year |
| Zero Temperature Drift | ±2% FS |
| Sensitivity Temperature Drift | ±2% FS |
| Pressure Type | Gauge, Absolute |
| Process Connection | Submersible, directly tested in liquid |
| Shock Resistance | 100g (11ms) |
| Insulation Resistance | 100MΩ / 250VDC |
| Media Compatibility | Various media compatible with 316L stainless steel |
| Housing Material | 304L Stainless Steel 316L diaphragm |
| Application | Water tanks, wells, reservoirs, industrial liquid level monitoring |
| Installation Type | Fully submersible |
| Protection Rating | IP68 |
Level Sensor Outputs
- 4-20mA
- 0.5 to 4.5V
- 0-10V
- 1-5V
- 0-5
Lead Time 3 - 10 working Days
Level Range
- 0-5mWG
Application Examples
- Wnvironmental monitoring.
- Cost effective Arduino level sensor
- Arduino level monitor for pools
- Lake measurement.
- Borehole measurement.
Arduino Level Sensor
The 0.5 to 4.5V output version can be powered from the 5V from the arduino uno. the output signal is then wired int any of the Analog inputs.
Example code is supplied and twill quickly have the level reading output to the serial port.
- Regular price
- £82.50
