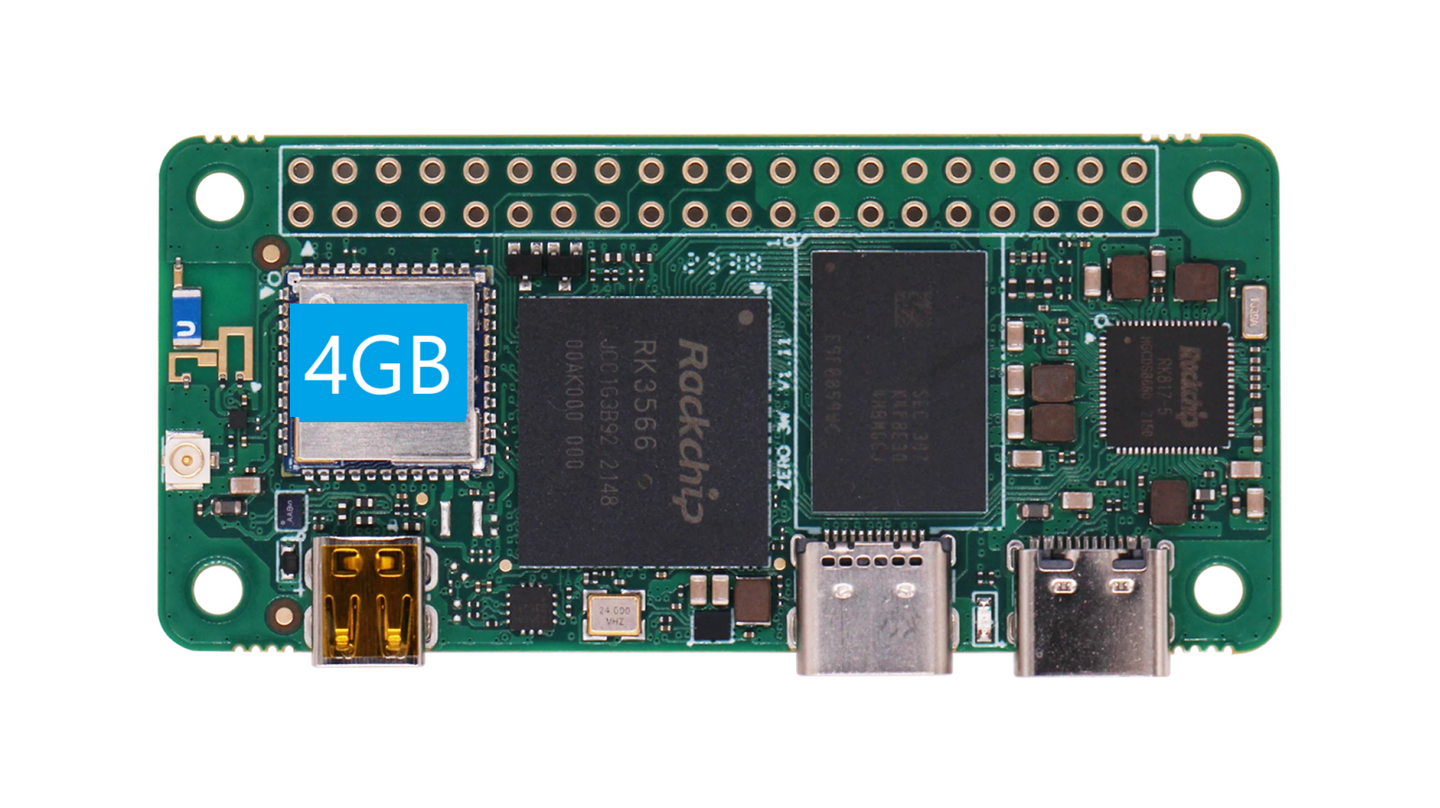

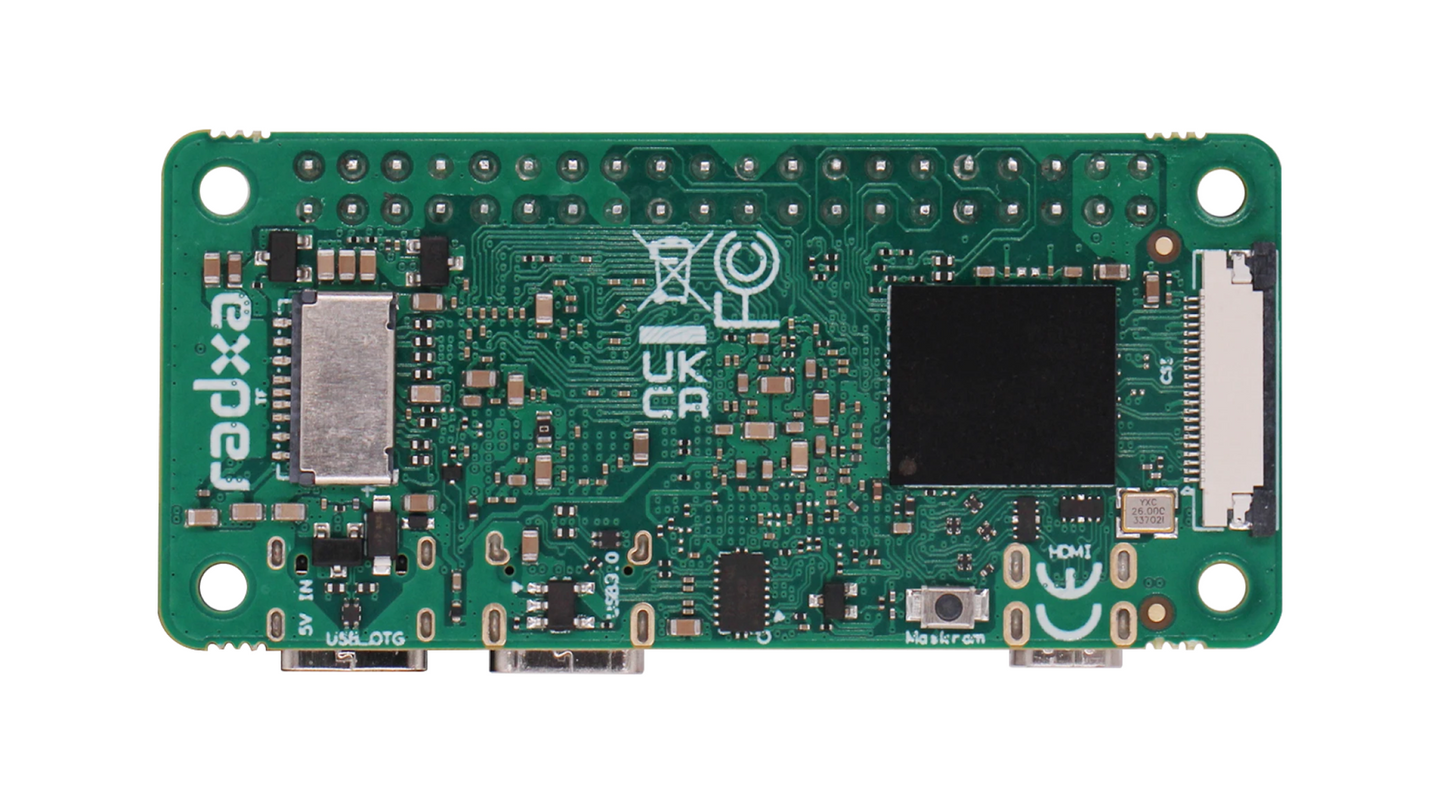

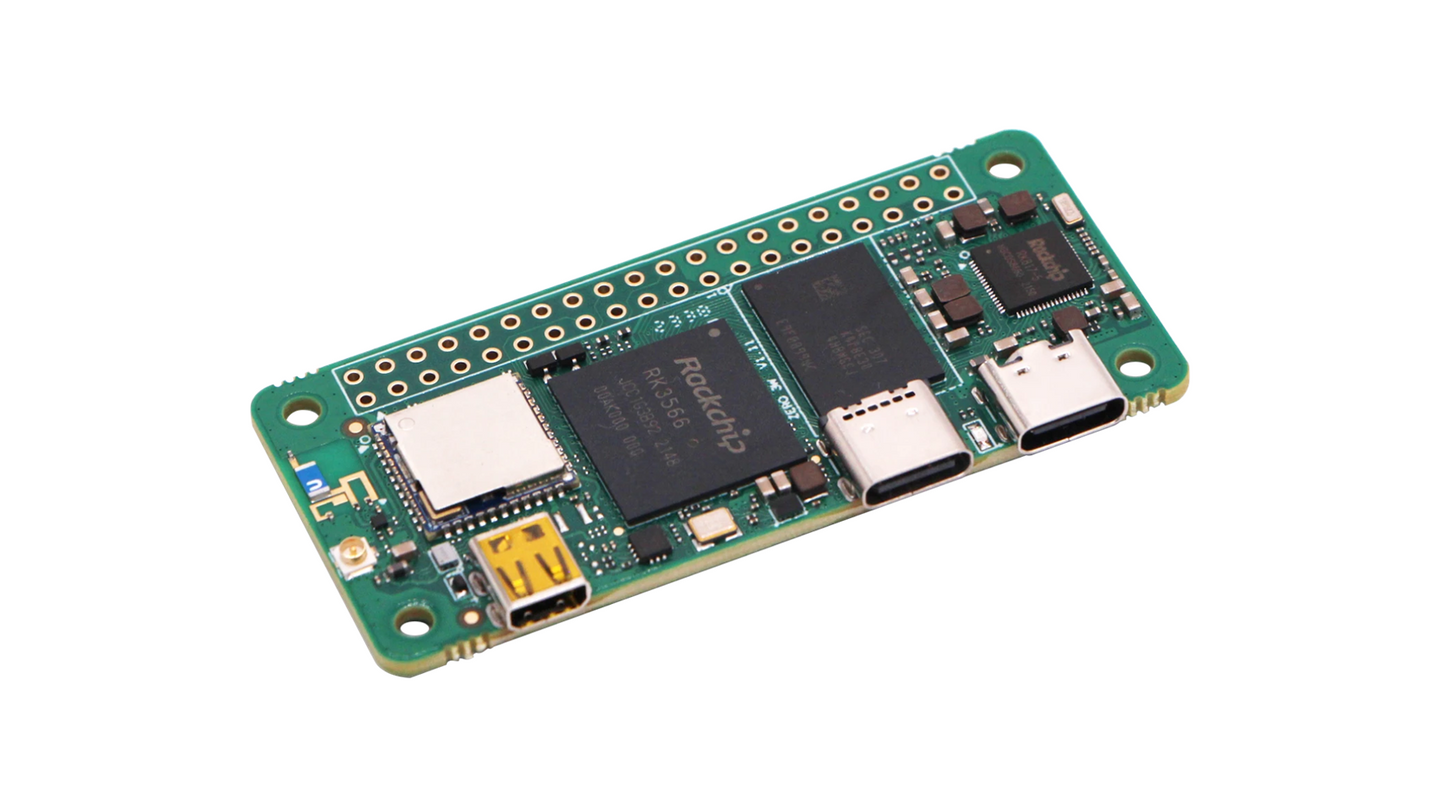

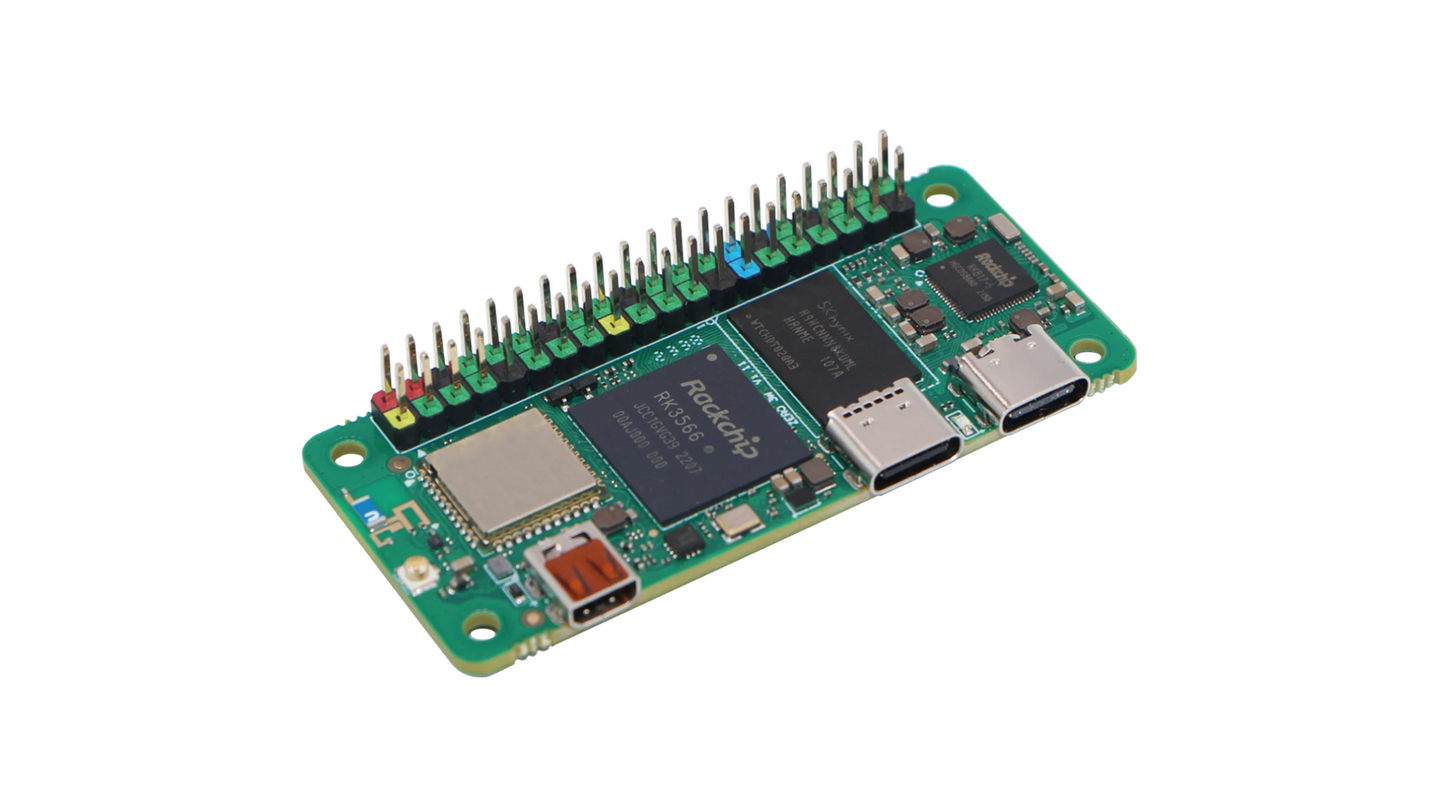

ROCK Zero 3W is a single-board computer (SBC), typically used in embedded systems, industrial applications, and IoT (Internet of Things) devices.

It’s designed to be a low-power, efficient computing solution that is often used in low profile and energy efficiency applications.

Wifi and BLE wireless connection

A perfect Raspberry Pi zero replacement

ROCK Zero 3W specification:

 Hardware

・ RockchipRK3566SoC
・ Quad‑coreArm®Cortex®‑A55(ARMv8)64‑bit@1.6GHz
・ ArmMali™‑G52‑2EE,OpenGL®ES1.1/2.0/3.2, Vulkan® 1.1, OpenCL™2.0
・ 1GB/2GB/4GBLPDDR4RAM
・ OptionalOnboardeMMCModule8GB/16GB/32GB
・ Display via Micro HDMI
・ H.264/H.265decoderupto4K@60fps
・ H.264/H.265encoderupto1080P@60fps

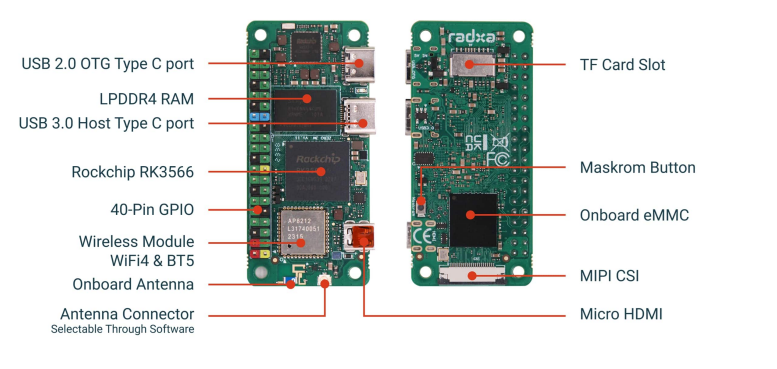

Interfaces

・ 802.11b/g/n (WiFi4) WirelessLAN
・ BT5.0withBLE
・ Onboard or External Antenna Configured by Software
・ 1x TFCardSlot
・ 1x Micro HDMI ports supporting displays up to 1080P@60fpsresolution
・ 1x USB2OTG Type C port for power and data
・ 1x USB3 HOST Type C port
・ 1x MIPICSI
・ 40x user GPIO supporting various interface options:–

• 5x UART
• 1x SPI bus
• 2x I2Cbus
• 1x PCM/I2S
•  6x PWM
•  28x GPIO

– 2x5 VDC power in

– 2x3.3V power pin
