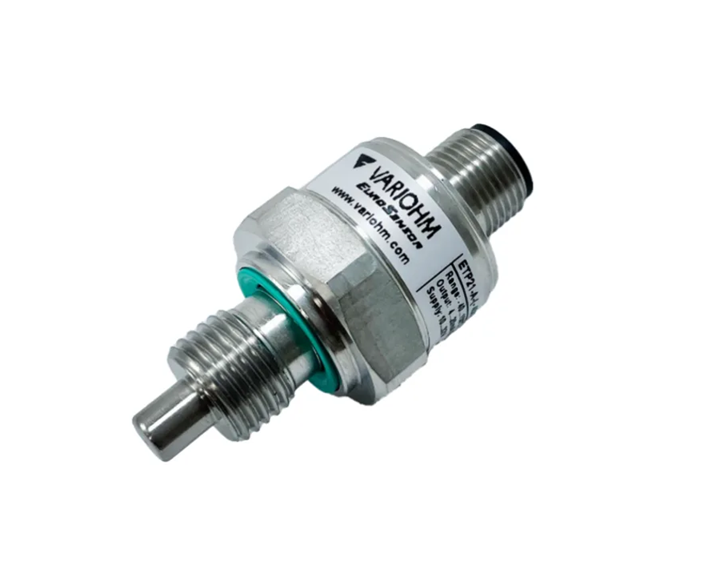

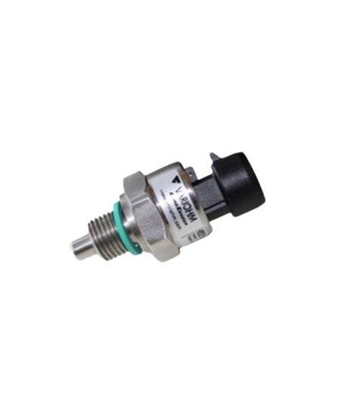

ETP21 Ratiometric 0.5V to 4.5V Temperature sensor is a long life and high performance 0.5V to 4.5V temperature sensor, It converts the PT100 RTD resistance temperature sensor into a high performing 0.5 to 4.5vdc output temperature sensor

ETP21 Ratiometric Temperature Sensor Specifications

  • Temperature Measurement Range: -40°C ~ 150°C
  • Output Type: Analogue Voltage
  • Voltage Supply: 5Vdc
  • Accuracy: 1%
  • Sealing: IP67
  • Current Consumption:<7.5mA
  • PT100 element

ETP21-M10X1-(-40/150)-5-A

  • Electrical Output: Ratiometric 0.5V to 4.5V
  • Voltage Supply: 5V
  • Current consumption: <7.5mA
  • Electrical connection: 600mm Cable
  • Temperature Connection: M10 Probe
  • IP Rating: IP67

Output example table

For model ETP21-M10X1-(-40/150)-5-A the output table will be as follows

Temperature °C -40°C 55°C 150°C
Output V 0.5V 2.5V 4.5V



Ratiometric 0.5V to 4.5V Temperature sensor dimensions

ETP21-M10X1-(-40/150)-5-A

Articles on Ratiometric and 0.5V to 4.5V output

View our Ratiometric output article







OnlineSensors

ETP21 0.5V to 4.5V Temperature Sensor -40°C to 150°C

£134.75

ETP21 Ratiometric 0.5V to 4.5V Temperature sensor is a long life and high performance 0.5V to 4.5V temperature sensor, It converts the PT100 RTD resistance temperature sensor into a high performing 0.5 to 4.5vdc output temperature sensor

ETP21 Ratiometric Temperature Sensor Specifications

  • Temperature Measurement Range: -40°C ~ 150°C
  • Output Type: Analogue Voltage
  • Voltage Supply: 5Vdc
  • Accuracy: 1%
  • Sealing: IP67
  • Current Consumption:<7.5mA
  • PT100 element

ETP21-M10X1-(-40/150)-5-A

  • Electrical Output: Ratiometric 0.5V to 4.5V
  • Voltage Supply: 5V
  • Current consumption: <7.5mA
  • Electrical connection: 600mm Cable
  • Temperature Connection: M10 Probe
  • IP Rating: IP67

Output example table

For model ETP21-M10X1-(-40/150)-5-A the output table will be as follows

Temperature °C -40°C 55°C 150°C
Output V 0.5V 2.5V 4.5V



Ratiometric 0.5V to 4.5V Temperature sensor dimensions

ETP21-M10X1-(-40/150)-5-A

Articles on Ratiometric and 0.5V to 4.5V output

View our Ratiometric output article






£134.75
Process Connection:
Output Signal:
Electrical Connection:
