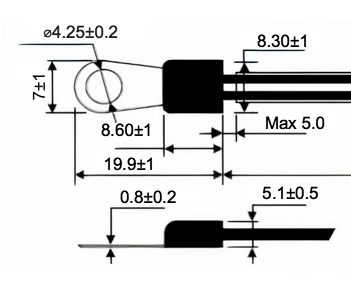

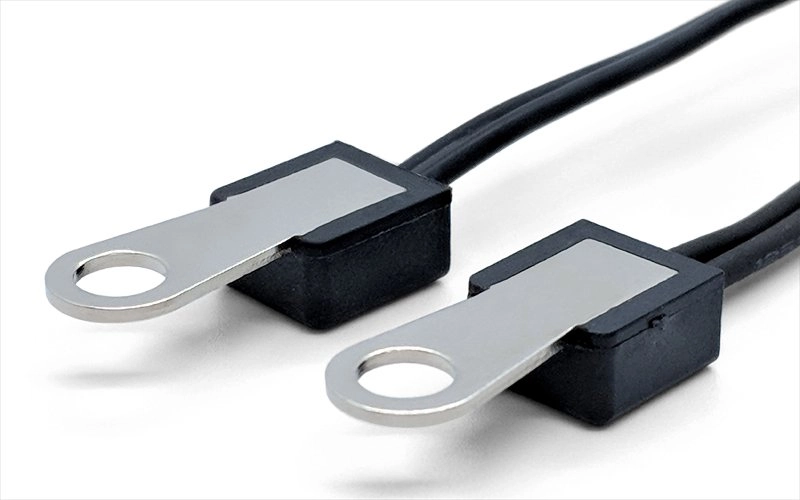

This M4 lug thermistor temperature sensor has

• 1m cable
• 22 AWG
• B3435K
• 10K Ω 1%

The STS2 series ring terminal temperature sensors are available with robust moulded housings as standard with M3 & M4 fixings.

The NTC thermistor sensor is embedded inside the over-moulded design which results in a fast thermal responsiveness.

This type of housing combines good electrical isolation as well as thermal insulation, this aides in minimising heat loss from the sensor helping to minimise heat-loss away from the sensor.

STS2 ring sensors are available with a broad range of lead-wire types and lengths, double-insulated options, connector types and a wide range of NTC thermistors to suit your application.  Larger ring sizes (M5, M6, M8 etc.) and higher-voltage ratings can be achieved by choosing a suitable combination of ring terminal and wire type.  Call us today to discuss our stock and bespoke sensor solutions.

Applications

• Electric vehicle batteries
• E-vehicle fast-charging plugs
• Rechargeable batteries
• Heat-sink monitoring
• Hot water appliances

Features

• Fast response design (Tc ≤ 5s)
• Accuracy ±1% or better
• Interchangeability between NTCs
• Standard ring sizes M3 & M4 (M5, M6, M8 or larger available in metal)
• Operating range up to +150°C
