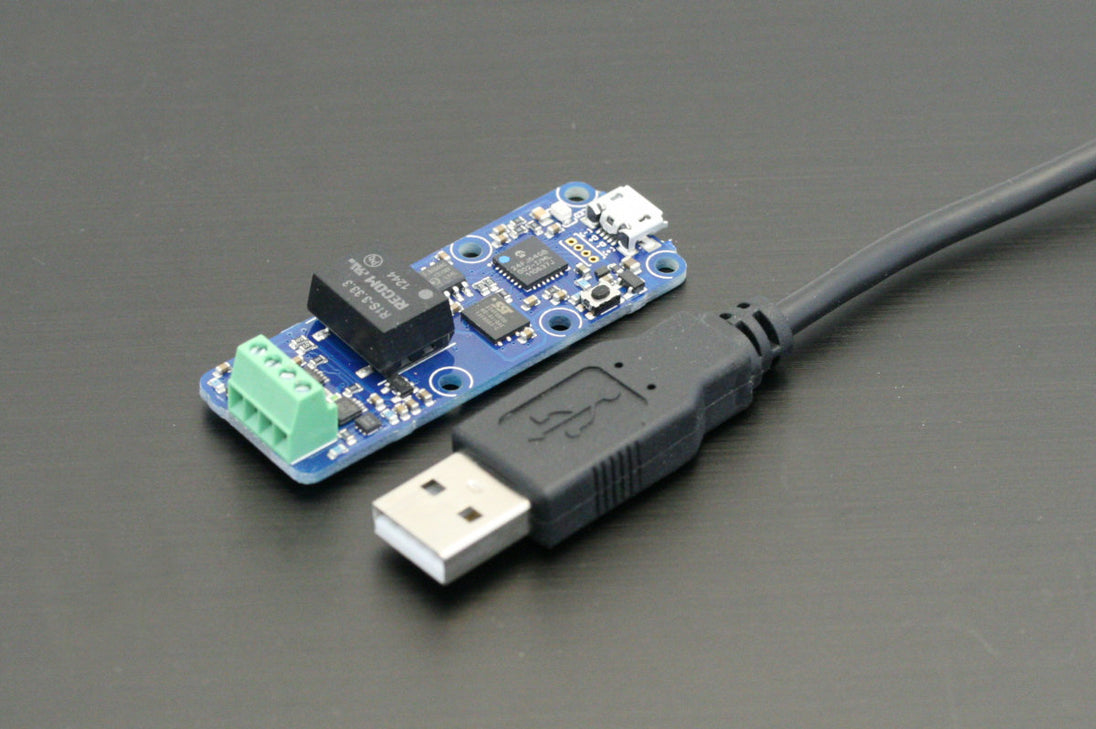

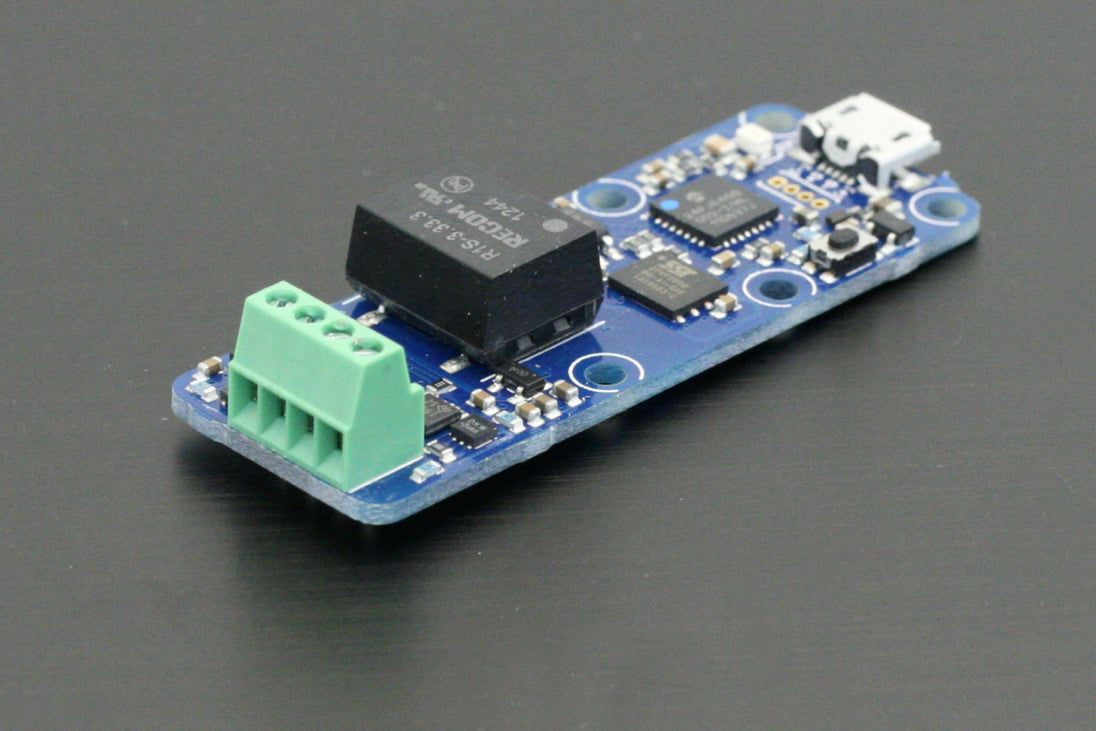

Easily read a PT100 sensor via USB with the Yocto-PT100 PT100 USB Converter.

The Yocto-PT100 is a USB temperature sensor.

It is the most accurate USB temperature measurement device from the Yocto Range. The module uses an external PT100 probe (not included) to make instant temperature measurements, and can also record measures on a built-in flash memory to read them later on through USB.

The  PT100 probe connected to the Yocto-PT100 has a very high stability and accuracy(resolution up to 0.01°C and accuracy up to 0.03°C at 0°C when using a PT100 conforming to IEC 60751 DIN 1/10 B standard). It is particularly well suited for applications such as laboratory measurements, etc.

Delivery

1 Week

General Specifications

• Product Name: Yocto-PT100
• Product ID: PT100MK1
• Hardware Revision: Rev. C
• Country of Manufacture: Switzerland
• RoHS Compliance: RoHS III (2011/65/UE + 2015/863)
• Harmonized Tariff Code: 9032.9000

Technical Specifications

• Channels: 1
• Sensor Type: PT100 (RTD, Resistance Temperature Detector)
• Measuring Range (Temperature): –200°C to +800°C
• Accuracy: ±0.03°C
• Sensitivity: 0.01°C
• Refresh Rate: 15 Hz

Mechanical Specifications

• Dimensions: 55 mm (L) × 20 mm (W) × 10.1 mm (H)
• Weight: 7 g
• USB Connector: Micro-B
• Suggested Enclosure: YoctoBox-Long-Thick-Black
• Cables and Enclosures: Available separately
