The PX3 Series of 0.5 to 4.5V pressure sensors are heavy duty and compact pressure sensors with a Metri-Pack 150 electrical connection

✔ Heavy-duty, compact pressure sensor
✔ 0.5–4.5 V ratiometric output
✔ 5 V supply (4.75–5.25 V)
✔ Wide pressure range options
✔ Metric-Pack 150 electrical connection
✔ Fast response time (~1 ms)
✔ High accuracy (±0.15 % FSS)
✔ Wide operating temperature (−40 °C to +125 °C)
✔ Brass construction
✔ Suitable for HVAC, industrial & automotive use
✔ Quality guaranteed
✔ Check out securely

A piezo resistive pressure capsule output signal is converted using an ASIC (Application
Specific Integrated Circuit) and conditioned to output 0.5 to 4.5 Voltage output

PX3 series are temperature compensated from -40°C to 125°C [-40°F to 257°F].

Articles and Guides

What is Ratiometric 0.5 to 4.5 output

How to use 0.5 to 4.5V pressure sensors

Specification

• Pressure range: 0 to ranges of  29 to 100PSI
• Supply Voltage: 4.75V to 5.25V
• Electrical Connection : Metric-Pack 150
• Pressure Port : Various
• Response Time :1ms
• Output Resolution: 0.05% FS Pressure
• Current Consumption: 6.5mA
• Material: Brass
• Output: 0.5 to 4.5 Vdc
• Operating temperature: -40°C to 125°C
• Accuracy:±0.15%FSS BFSL
• Long term stability: ±0.25 %FS

Wide Application use

These transducers are developed for use with a wide range of media including
aggressive fluids and water, and provide a cost-competitive solution for wide-ranging

Temperature Compensation

The PX3 Series transducers are fully calibrated and temperature compensated from -40°C
to 125°C [-40°F to 257°F].

PX3 0.5 to 4.5V Pressure Sensor Dimensions

1/8" Male NPT

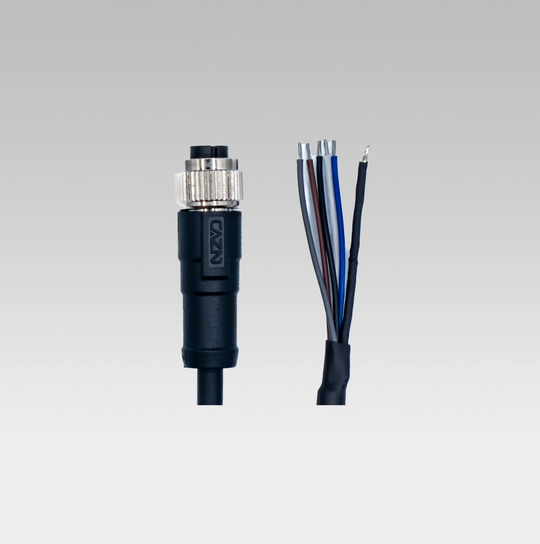

M12

G1/4 Thread

0.5 to 4.5V pressure Sensor Metri-Pack 150 Pinout
