A Classs A P100 RTD element is places into the probe tip. The RTD integrates into internal conditioning electronics that converts the accurate resistive output of the RTD into 4-20mA current loop signal

4-20mA RTD transmitter specifications

  • Output 4-20mA
  • Supply 10V to 30V
  • Accuracy +-0.2°C
  • Probe diameter 6mm
  • Probe length 50mm,100mm,150mm
  • Standard Temp Range 0°C to 100°C
  • Custom Temperature ranges available

Electrical Connections

Standard DIN Hirschmann connection.

Mechanical Dimensions

316 Stainless steel body with 6mm diameter probe with lengths of

  • 50mm
  • 100mm
  • 150mm.

1/2" BSP media process connection with hex.

IP67 Rated and PG7 cable gland suitable for 4.5 to 6mm diameter instrument wires.



OnlineSensors

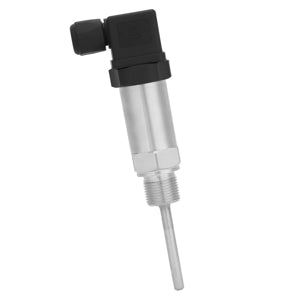

4-20mA Temperature Probe RTD 0-100°C

£130.00

A Classs A P100 RTD element is places into the probe tip. The RTD integrates into internal conditioning electronics that converts the accurate resistive output of the RTD into 4-20mA current loop signal

4-20mA RTD transmitter specifications

  • Output 4-20mA
  • Supply 10V to 30V
  • Accuracy +-0.2°C
  • Probe diameter 6mm
  • Probe length 50mm,100mm,150mm
  • Standard Temp Range 0°C to 100°C
  • Custom Temperature ranges available

Electrical Connections

Standard DIN Hirschmann connection.

Mechanical Dimensions

316 Stainless steel body with 6mm diameter probe with lengths of

  • 50mm
  • 100mm
  • 150mm.

1/2" BSP media process connection with hex.

IP67 Rated and PG7 cable gland suitable for 4.5 to 6mm diameter instrument wires.


£130.00
Probe Length:
Temp Range:
