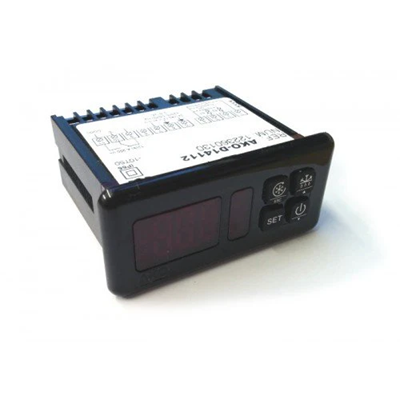

KO-D14112 is a digital thermostat with single set point for control of temperature in heating, cooling or refrigeration applications. It accept 12V or 24V AC/DC power supply.

A 0.1 Degrees resolution, adjustable hysterisis from 0.2 Deg. and scale in C or F, the result is a versatile accurate thermostat.

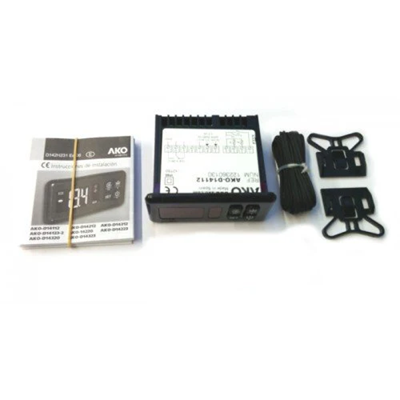

What's included with the D14112

An NTC thermistor sensor is supplied with a range of -50.0 to 99.9 Deg.C or upto 150 Deg.C with a PTC sensor.

Standard 34 x 76mm front panel mounting with IP65 gasket. It's bright display makes for easy reading.

For 230v please see AKOD14123.

The AKO-D14112 is AKO upgrade to the discontinued AKO-14112.

Application Assistance

Need help for setup ? we are happy to help with systems advice and integration set up

AKO D14112 Application Examples

Can be used to control heaters, chillers, fans, pumps, bottle coolers, fridges, display cabinets, heated food trolley, refrigerated transport vehicles etc.
For refrigeration applications, it has off cycle defrosting.

  • Intertek ETL listed digital thermostat. 4003153.
  • Applications
  • Heating or cooling
  • Refrigeration control
  • Chiller temperature control
  • Greenhouse temperature control
  • Cooler control
  • Temperature alarm
  • Off Cycle defrost control
  • Spray booth temperature control
  • Poultry house alarm or temperature control
  • Frost protection
  • Leisure - swimming pool, saunas or steam rooms temperature control
  • Technical Specification

Technical Specifications

  • Power supply                                         12/24V AC/DC +/- 20%
  • Mains frequency                                     50/60Hz
  • Power consumption                                3W
  • SPDT Output Relay:
  • Resistive contact rating                          12 Amp 230V
  • Inductive contact rating                          9 Amp 230V
  • Measuring range (ntc)                           -50.0/99.9 Deg.C
  • Measuring range (ptc)                           -50.0/150 Deg.C
  • Operating temperature                          5/50 Deg.C
  • Measuring precision (Ambient 25 Deg.C)  +/- 1Deg.C typical
  • Overall dimension                                  34 x 76 x 70 mm
  • Panel cut out                                        28.5 x 70.5 mm
  • Front panel protection                            IP65

AKO-D14112 digital thermostat conforms to CE, UL Std.873 Cert. and CAN/CSA Std. C22.2 No. 24-93.

AKO D14112 Wiring Guide

D14112 Thermostat Install

Need a box build? Get in touch and we can offer enclosure installation
