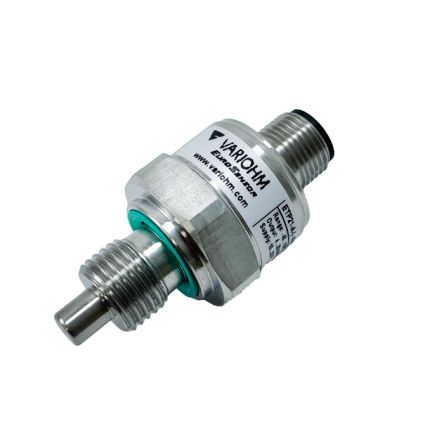

ETP21 4-20mA Temperature sensor is an industry standard and high performance 2 wire current loop temperature sensor. It converts the PT100 RTD resistance temperature sensor into a high performing 2 wire 4-20mA current loop output temperature sensor

ETP21 4-20mA Temperature Sensor Specifications

  • Temperature Measurement Range: -40°C ~ 150°C
  • Output Type:4-20mA current loop (2 wire)
  • Voltage Supply: 10Vdc to 32Vdc
  • Accuracy: 1%
  • Sealing: IP67
  • PT100 element

ETP21-A-(-40/150)-2-F

  • Electrical Output: 4-20mA current loop 2 wire
  • Electrical Connection: M12
  • Voltage Supply: 10Vdc to 32Vdc
  • Electrical connection: 600mm Cable
  • Temperature Connection: M10 Probe
  • IP Rating: IP67

Output example table

For model ETP21-A-(-40/150)-2-F the output table will be as follows

Temperature °C -40°C 55°C 150°C
Output V 4mA 12mA 20mA



ETP21 4-20mA Temperature sensor Pinout

ETP21-A-(-40/150)-2-F

Articles on 4-20mA output

View our 4-20mA output Articles



Amphenol

ETP21 4-20mA -40°C to 150°C M12 Temp Sensor ETP21-A-(-40/150)-2-F

£105.25

ETP21 4-20mA Temperature sensor is an industry standard and high performance 2 wire current loop temperature sensor. It converts the PT100 RTD resistance temperature sensor into a high performing 2 wire 4-20mA current loop output temperature sensor

ETP21 4-20mA Temperature Sensor Specifications

  • Temperature Measurement Range: -40°C ~ 150°C
  • Output Type:4-20mA current loop (2 wire)
  • Voltage Supply: 10Vdc to 32Vdc
  • Accuracy: 1%
  • Sealing: IP67
  • PT100 element

ETP21-A-(-40/150)-2-F

  • Electrical Output: 4-20mA current loop 2 wire
  • Electrical Connection: M12
  • Voltage Supply: 10Vdc to 32Vdc
  • Electrical connection: 600mm Cable
  • Temperature Connection: M10 Probe
  • IP Rating: IP67

Output example table

For model ETP21-A-(-40/150)-2-F the output table will be as follows

Temperature °C -40°C 55°C 150°C
Output V 4mA 12mA 20mA



ETP21 4-20mA Temperature sensor Pinout

ETP21-A-(-40/150)-2-F

Articles on 4-20mA output

View our 4-20mA output Articles


£105.25
