Key Features
✔ Optimised for LoRa®, Sigfox & ISM
✔ Adhesive mount – quick installation
✔ Flexible, compact T-bar design
✔ Omni-directional, high performance
✔ 2.6 dBi peak gain
✔ 50 Ω impedance
✔ SMA-Male connector (custom options available)
✔ 3 m RG174 cable standard (custom lengths available)
✔ Operating temp: -40°C to +85°C
✔ RoHS compliant
✔ Despatch from UK
✔ Quality guaranteed
✔ Design support available
Description

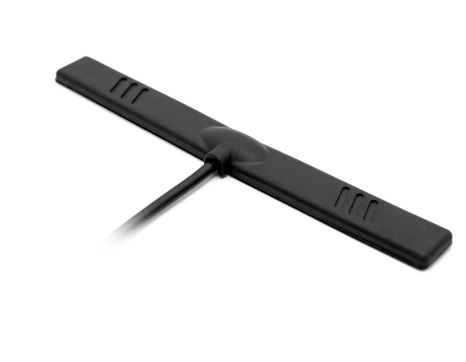

The OS5215P-868 flexible T-bar antenna is ideal for LoRa and Sigfox applications, with customisable cable length and connector type.
- 868MHz ISM
- Adhesive mount
- Flexible housing
- Compact size
- High performance
- Dimensions: 117.4 x 12.5 x 6.5mm
- Customisable cable and connector
Specification
- 868 MHz ISM
- 863-870 MHz
- Adhesive Mount
- Flexible Housing
- Compact Size
- High Performance
- Customizable Cable and Connector
- Dimensions 117.4 x 12.5 x 6.5 mm
Antenna Electrical Specifications
| Parameter | 868 MHz ISM Antenna |
|---|---|
| Standards | ZigBee, ISM, SigFox, LoRa |
| Band (MHz) | 868 MHz |
| Frequency (MHz) | 863–870 |
| Return Loss (dB) | ~-20.3 |
| VSWR | ~1.2:1 |
| Efficiency (%) | ~59.1 |
| Peak Gain (dBi) | ~2.6 |
| Average Gain (dB) | ~-2.3 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
| Max. Input Power (W) | 25 |
| Connector Type | SMA-Male Standard (Other Connectors Available) |
| Cable Length | 300 cm Standard (Any Cable Length Available) |
| Cable Type | RG174 Standard (Other Cables Available) |
Antenna Measurement Conditions:
Mounted on 30 x 30 x 0.25 cm ABS Plate
200 cm RG174 Cable
Measured in Certified CTIA 3D Anechoic Chamber
Mechanical Specifications
| Specifications | OS5215P-868 |
|---|---|
| Mounting Type | Adhesive Mount |
| Dimensions (mm) | 117.4 × 12.5 × 6.5 |
| Radome | TPE |
| Radome Color | Black, White |
| Operating Temperature (°C) | -40 to +85 |
| Storage Temperature (°C) | -40 to +85 |
| Substance Compliance | RoHS |
Dimensions
![]()

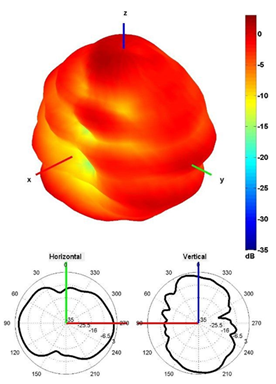

Antenna Characteristics
Key Features
✔ Optimised for LoRa®, Sigfox & ISM
✔ Adhesive mount – quick installation
✔ Flexible, compact T-bar design
✔ Omni-directional, high performance
✔ 2.6 dBi peak gain
✔ 50 Ω impedance
✔ SMA-Male connector (custom options available)
✔ 3 m RG174 cable standard (custom lengths available)
✔ Operating temp: -40°C to +85°C
✔ RoHS compliant
✔ Despatch from UK
✔ Quality guaranteed
✔ Design support available
Description
The OS5215P-868 flexible T-bar antenna is ideal for LoRa and Sigfox applications, with customisable cable length and connector type.
- 868MHz ISM
- Adhesive mount
- Flexible housing
- Compact size
- High performance
- Dimensions: 117.4 x 12.5 x 6.5mm
- Customisable cable and connector
Specification
- 868 MHz ISM
- 863-870 MHz
- Adhesive Mount
- Flexible Housing
- Compact Size
- High Performance
- Customizable Cable and Connector
- Dimensions 117.4 x 12.5 x 6.5 mm
Antenna Electrical Specifications
| Parameter | 868 MHz ISM Antenna |
|---|---|
| Standards | ZigBee, ISM, SigFox, LoRa |
| Band (MHz) | 868 MHz |
| Frequency (MHz) | 863–870 |
| Return Loss (dB) | ~-20.3 |
| VSWR | ~1.2:1 |
| Efficiency (%) | ~59.1 |
| Peak Gain (dBi) | ~2.6 |
| Average Gain (dB) | ~-2.3 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
| Max. Input Power (W) | 25 |
| Connector Type | SMA-Male Standard (Other Connectors Available) |
| Cable Length | 300 cm Standard (Any Cable Length Available) |
| Cable Type | RG174 Standard (Other Cables Available) |
Antenna Measurement Conditions:
Mounted on 30 x 30 x 0.25 cm ABS Plate
200 cm RG174 Cable
Measured in Certified CTIA 3D Anechoic Chamber
Mechanical Specifications
| Specifications | OS5215P-868 |
|---|---|
| Mounting Type | Adhesive Mount |
| Dimensions (mm) | 117.4 × 12.5 × 6.5 |
| Radome | TPE |
| Radome Color | Black, White |
| Operating Temperature (°C) | -40 to +85 |
| Storage Temperature (°C) | -40 to +85 |
| Substance Compliance | RoHS |
Dimensions
![]()
Antenna Characteristics
- Regular price
- £6.75
Frequently Bought Together
-
Vendor: OnlineSensors Ltd

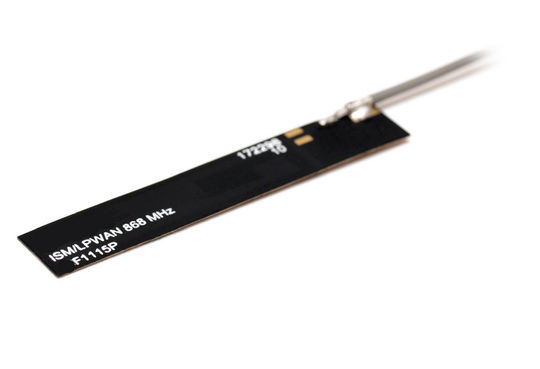

OSF1115P 868MHz ISM flexible (FPC)
