Low profile black push to make switch with round actuator, part of the SCI R13-510 Series. Snap-fit into a 12.7mm panel cut-out.

Key Features

  • SPST contact, Off-(On) operation
  • 3A contact current
  • 250V Voltage
  • Silver-plated brass contact
  • Solder lug Terminal
  • 12.7mm panel
  • Large 9mm actuator button
  • -20°C to +65°C operating temperature
  • 16mm long, 16mm wide, 19.3mm high

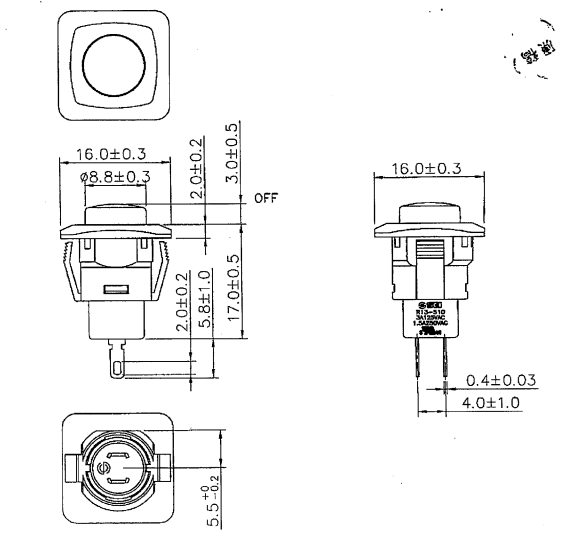

R13-510A SPST Switch Dimensions

OnlineSensors Ltd

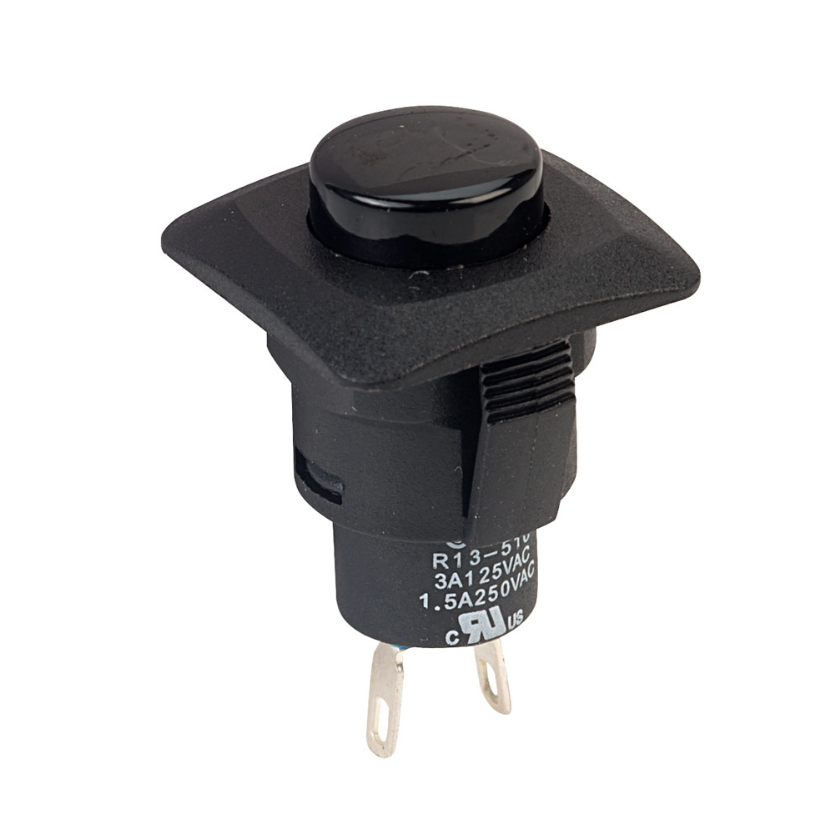

R13-510A Black Off - On Momentary Square Base Low Profile Switch SPST

£1.45
£1.45

Low profile black push to make switch with round actuator, part of the SCI R13-510 Series. Snap-fit into a 12.7mm panel cut-out.

Key Features

  • SPST contact, Off-(On) operation
  • 3A contact current
  • 250V Voltage
  • Silver-plated brass contact
  • Solder lug Terminal
  • 12.7mm panel
  • Large 9mm actuator button
  • -20°C to +65°C operating temperature
  • 16mm long, 16mm wide, 19.3mm high

R13-510A SPST Switch Dimensions
