Key Features

✓ STM32WLE5 LoRaWAN Module
✓ LoRaWAN Class A, B & C
✓ Low Power Consumption
✓ Long-Range LoRa Communication
✓ UART / AT Command Interface
✓ LoRaWAN & P2P Modes
✓ OTAA & ABP Support
✓ Compact, Easy-to-Integrate Design
✓ Multiple Frequency Band Options
✓ UK Despatch – Worldwide Delivery
✓ IoT Design Services Available

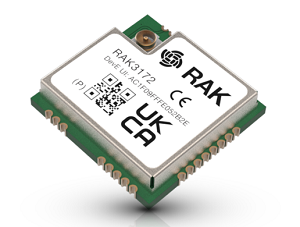

RAK3172-T-8-SM-I-CT = IPEX Antenna + TXCO ( Thermally calibrated Oscilator)

STM32WLE5, EU 868MHZ, with TCXO, FW RUI3, with IPEX antenna connector

RAK3172 Description

The RAK3172 is a low-power, long-range transceiver module designed for LoRa and LoRaWAN applications, based on the STM32WLE5CC chipset. It provides a compact and easy-to-integrate solution for long-range wireless data applications.

The module supports LoRaWAN 1.0.3 Class A, B and C and can connect to popular LoRaWAN network servers. It also supports LoRa Point-to-Point (P2P) communication, making it suitable for building customised long-range wireless networks.

Key Features

✓ LoRa & LoRaWAN transceiver module
✓ Based on STM32WLE5CC
✓ Low-power, long-range wireless communication
✓ LoRaWAN 1.0.3 – Class A, B & C
✓ LoRa Point-to-Point (P2P) support
✓ RUI3 API compatible
✓ AT & Binary command support
✓ Frequency range: 150 MHz – 960 MHz
✓ Supports EU433, CN470, RU864, IN865, EU868, AU915, US915, KR920 & AS923
✓ Ideal for Smart City, Smart Agriculture & Smart Industry applications
✓ UK Despatch – Worldwide Delivery
✓ IoT Design Services Available

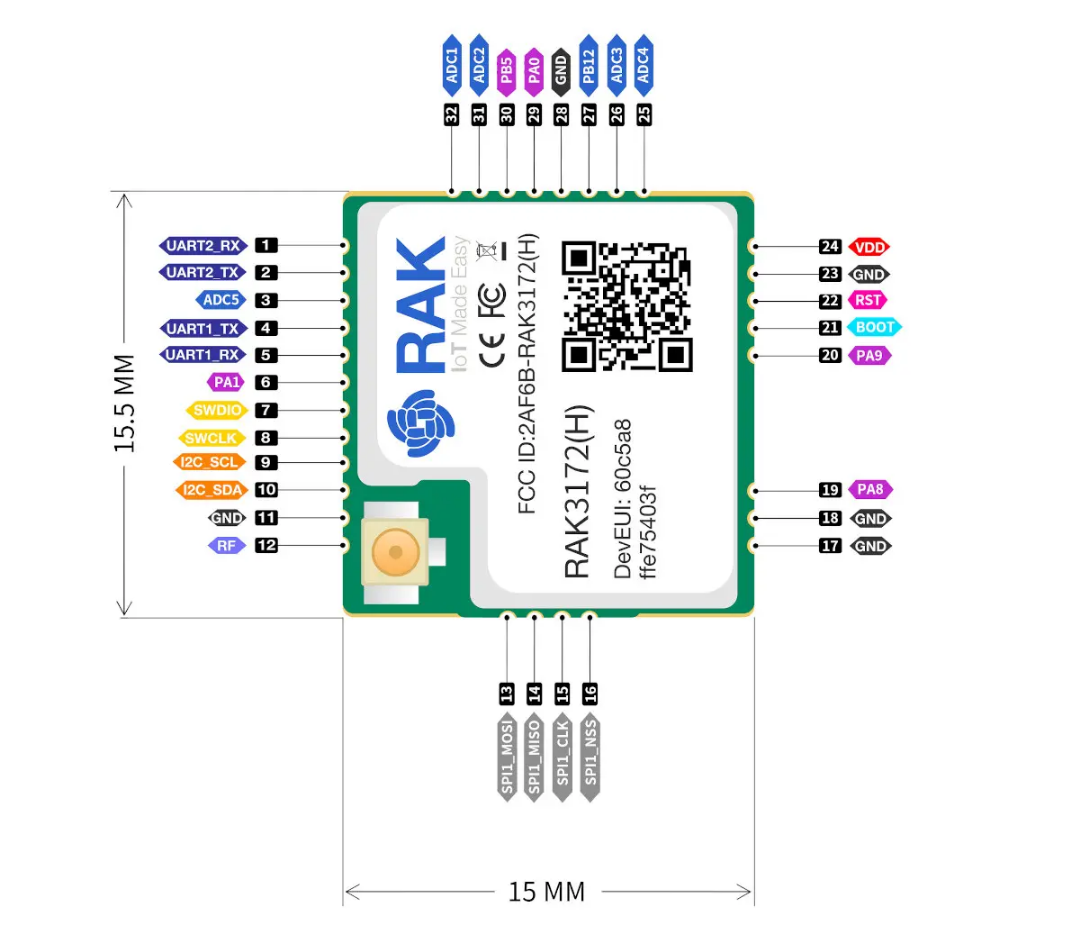

RAK3172 Pinout

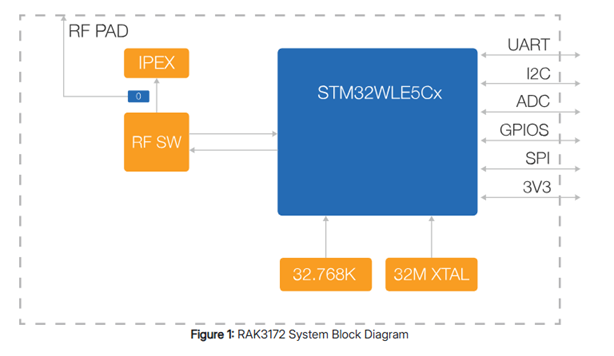

RAK3172 Block Diagram

Module Dimensions

RAK3172 PCB Layout
