The Ratiometric pressure sensor uses a voltage signal to represent the pressure.

This voltage signal is proportional to the supply voltage, therefore the output is a percentage of the supply voltage.

This type of pressure sensor is ideal for Raspberry Pi , Arduino and Embedded systems.

View the Ratiometric pressure sensor Article post for examples and further information on the Ratiometric Pressure sensor

Therefore integration is simplified by avoiding complex analogue circuitry.

Ratiometric Pressure sensor Output Example

for example a Ratiometric pressure sensor with a range of 0-10Bar and the supply

Ratiometric output if supply voltage is 5V

0Bar = 0.5V = 10%

10Bar=4.5V =90%

Ratiometric output if Supply voltage is 3V

0 Bar = 0.3V = 10%

10Bar = 2.7V=90%

Pressure Range

  • 0-200 Bar

Ratiometric Pressure transducer overview

  • 3.3-5Vdc.
  • Low power consumption.
  • 3 wires required VDD +, VSS - ,Signal
  • Zero = 10% of Supply voltage
  • Full output = 90% of Supply Voltage
  • Arduino compatible
  • USB serial adaptor

OSL Ratiometic Pressure sensor Specifications

  • Pressure ranges from 0.5 to 700 Bar
  • Ceramic sensor for corrosive resistance
  • Gauge or Absolute
  • Accuracy choice from ±0.25 to ±0.10% NLH ( BFSL)
  • Media Temperature -40 °C to +125 °C








OnlineSensors Ltd

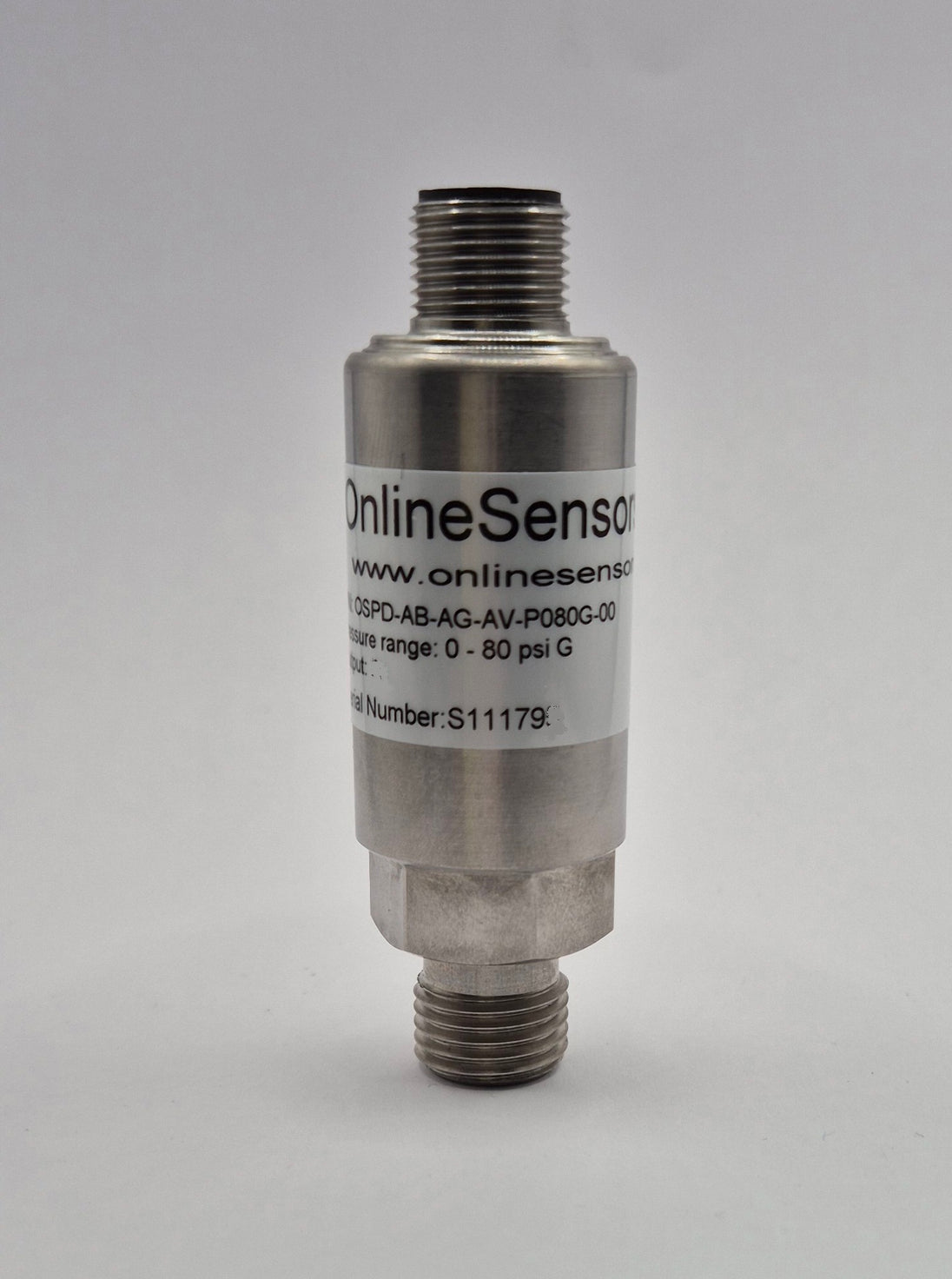

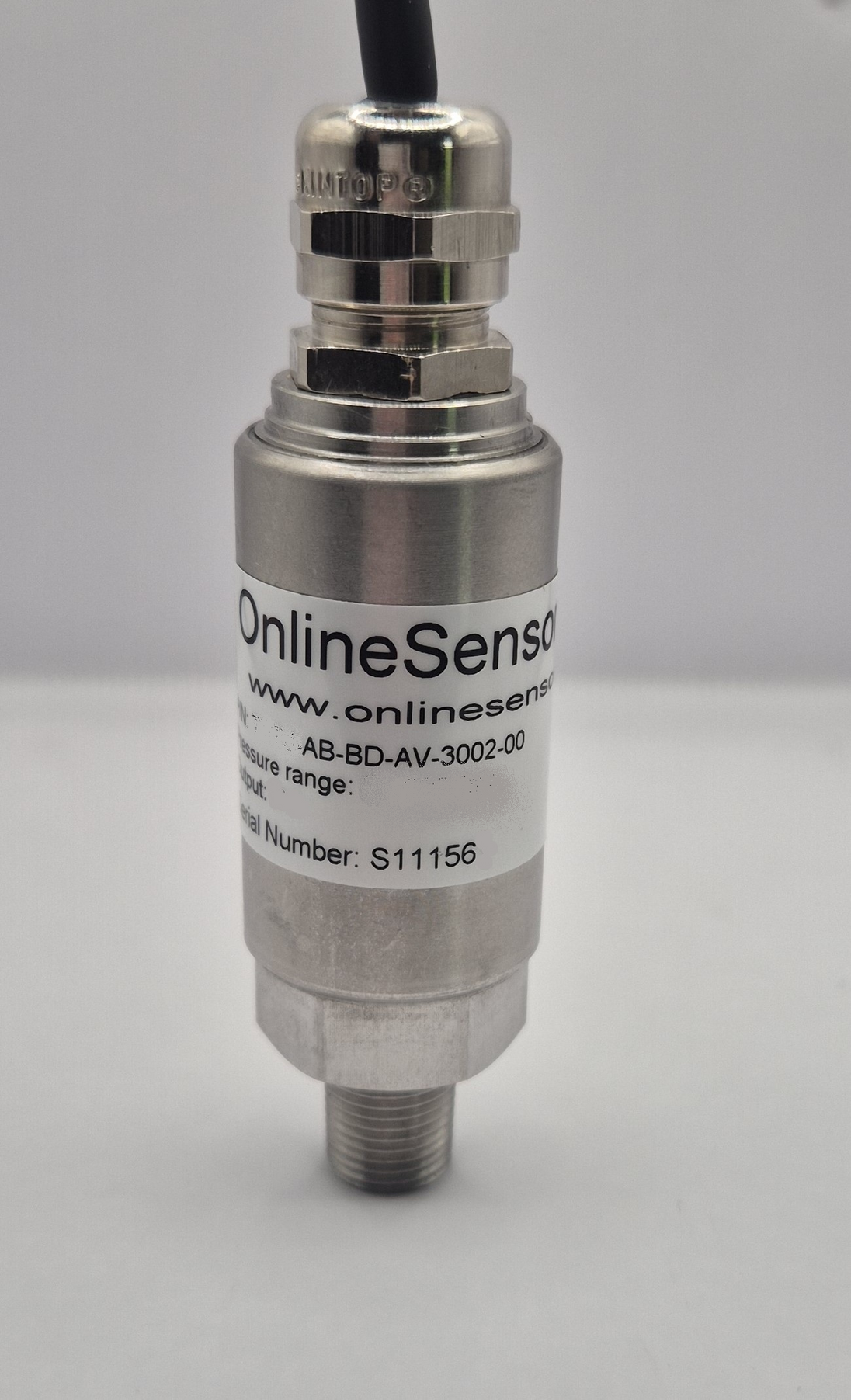

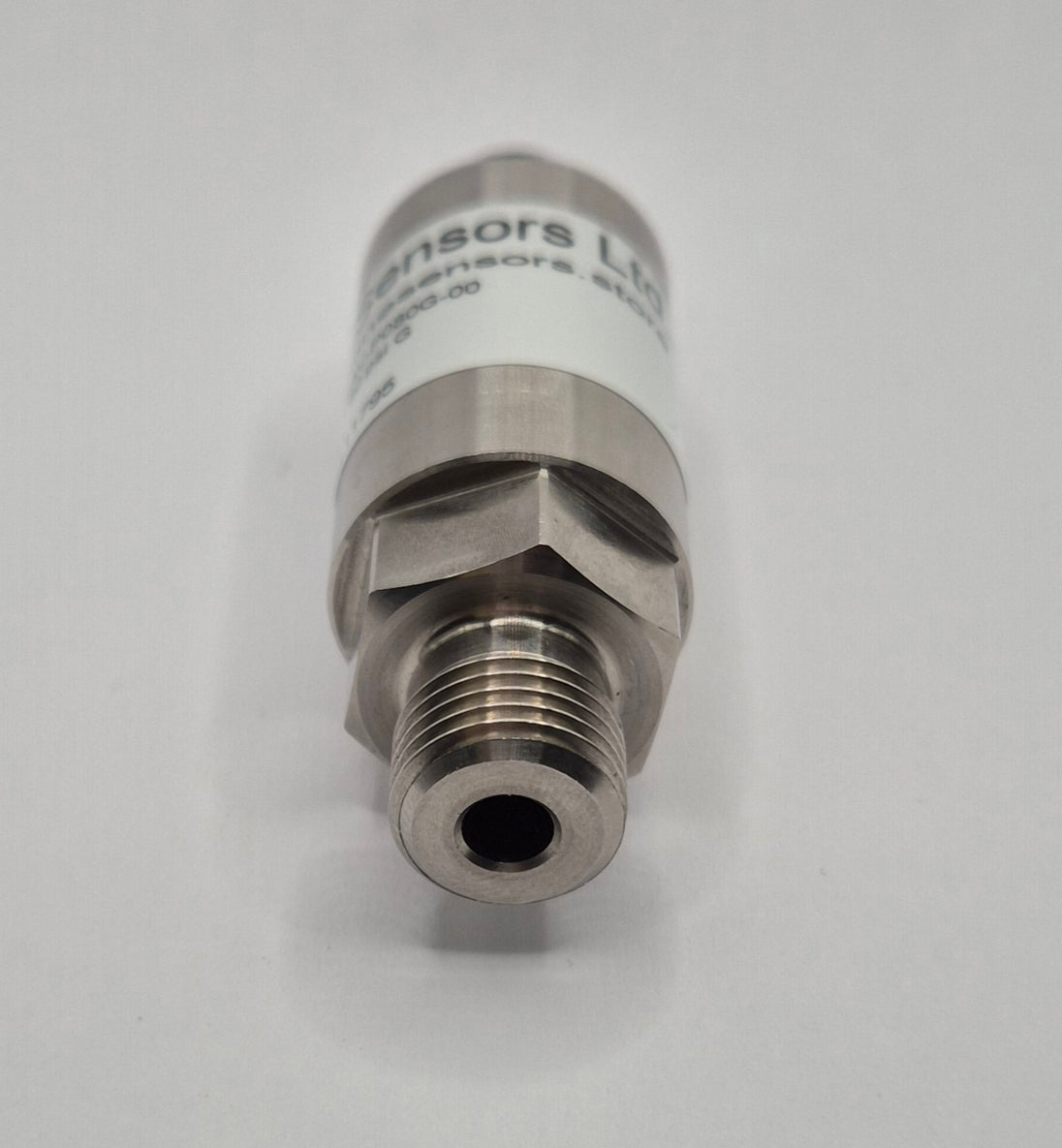

Ratiometric Pressure Sensor 0.5V to 4.5V

£165.55

The Ratiometric pressure sensor uses a voltage signal to represent the pressure.

This voltage signal is proportional to the supply voltage, therefore the output is a percentage of the supply voltage.

This type of pressure sensor is ideal for Raspberry Pi , Arduino and Embedded systems.

View the Ratiometric pressure sensor Article post for examples and further information on the Ratiometric Pressure sensor

Therefore integration is simplified by avoiding complex analogue circuitry.

Ratiometric Pressure sensor Output Example

for example a Ratiometric pressure sensor with a range of 0-10Bar and the supply

Ratiometric output if supply voltage is 5V

0Bar = 0.5V = 10%

10Bar=4.5V =90%

Ratiometric output if Supply voltage is 3V

0 Bar = 0.3V = 10%

10Bar = 2.7V=90%

Pressure Range

  • 0-200 Bar

Ratiometric Pressure transducer overview

  • 3.3-5Vdc.
  • Low power consumption.
  • 3 wires required VDD +, VSS - ,Signal
  • Zero = 10% of Supply voltage
  • Full output = 90% of Supply Voltage
  • Arduino compatible
  • USB serial adaptor

OSL Ratiometic Pressure sensor Specifications

  • Pressure ranges from 0.5 to 700 Bar
  • Ceramic sensor for corrosive resistance
  • Gauge or Absolute
  • Accuracy choice from ±0.25 to ±0.10% NLH ( BFSL)
  • Media Temperature -40 °C to +125 °C







£165.55
Pressure Range:
Electrical Connection:
Process Connection:
