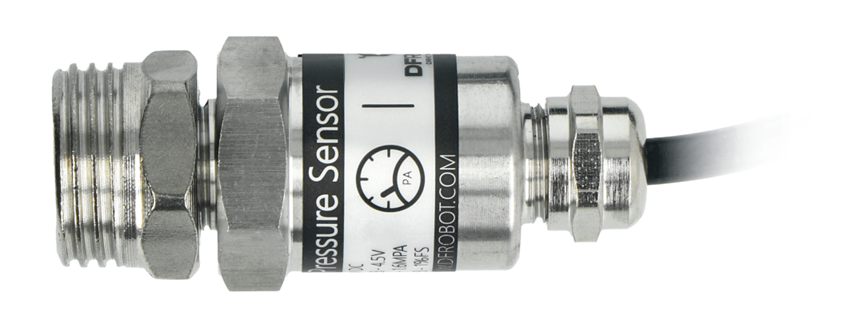

SEN0257 Analog Water Pressure Sensor -

This Arduino and microcontroller compatible level sensor offers high measurement accuracy with a precision of 0.5%, ensuring reliable data collection. It features a wide output voltage range from 0.5 V to 4.5 V,

Adaptable to various applications. Designed for compatibility with Arduino and other similar development boards, it is ideal for hobbyists and professionals alike.

OnlineSensors  provide a comprehensive user guide that includes project descriptions and sample code, simplifying integration and development. Additionally, a built-in G1/2 to G1/4 adapter enhances its versatility. Engineered for use in diverse environments such as residential areas, outdoor water bodies, and tanks.

It has been designed for integration with Arduino and any other microcontroller.

SEN0257 Arduino Level Sensor Technical Overview

  • Module: analogue water pressure sensor
  • Pressure rating 16MPa = 1631.6mwg

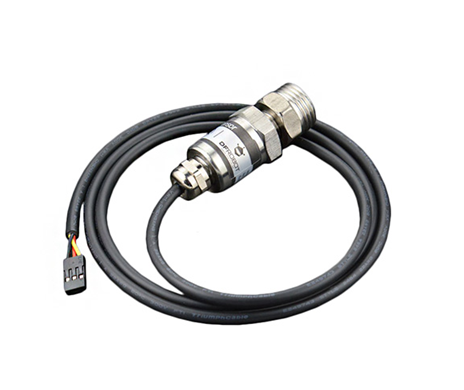

  • Connections: 3 x cable (Signal - VCC - GND)
  • Pressure measurement range: 0 MPa to 1,6 MPa
  • Measurement accuracy: 0.5%
  • Input voltage: 5 V DC
  • Output voltage range: from 0.5 V to 4.5 V

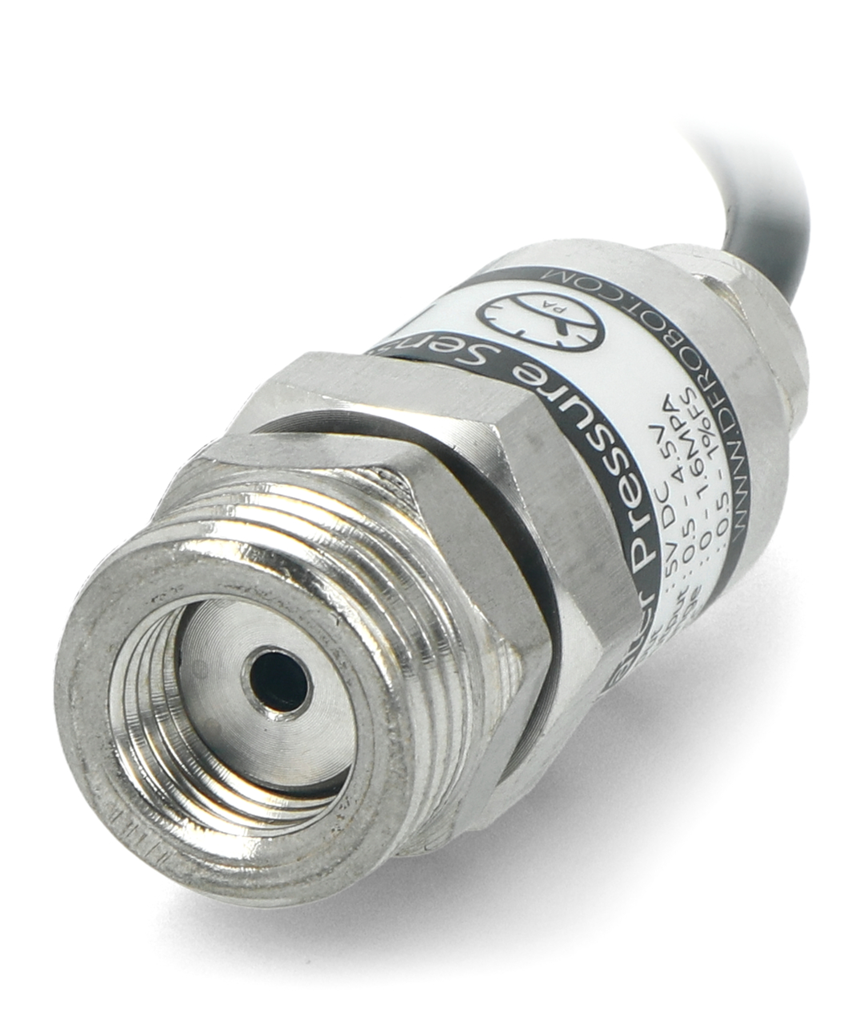

  • Thread: G1 / 4
  • Adapter: G1 / 2 to G1 / 4
  • Response time: < 2 ms
  • Rest current: 2.8 mA
  • Operating pressure: < 2 MPa
  • Fault pressure: ≥3.0 MPa
  • Service life: ≥ 10 million measurements
  • Working temperature: from -20°C to 85°C
  • Module dimensions: 49 x 14 mm

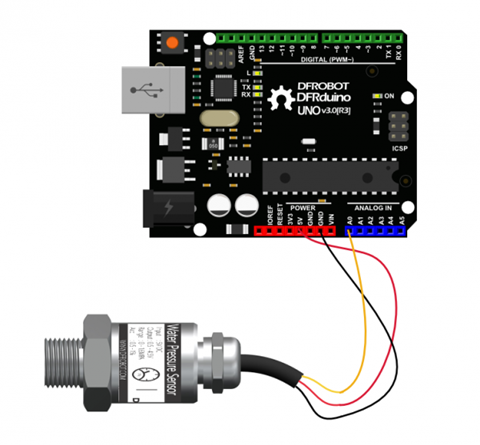

Arduino water level sensor example

Level and Pressure sensor output Graph



DF Robot

SEN0257 Analog Water Level Sensor 0.5Vdc to 4.5Vdc

£24.75

SEN0257 Analog Water Pressure Sensor -

This Arduino and microcontroller compatible level sensor offers high measurement accuracy with a precision of 0.5%, ensuring reliable data collection. It features a wide output voltage range from 0.5 V to 4.5 V,

Adaptable to various applications. Designed for compatibility with Arduino and other similar development boards, it is ideal for hobbyists and professionals alike.

OnlineSensors  provide a comprehensive user guide that includes project descriptions and sample code, simplifying integration and development. Additionally, a built-in G1/2 to G1/4 adapter enhances its versatility. Engineered for use in diverse environments such as residential areas, outdoor water bodies, and tanks.

It has been designed for integration with Arduino and any other microcontroller.

SEN0257 Arduino Level Sensor Technical Overview

  • Module: analogue water pressure sensor
  • Pressure rating 16MPa = 1631.6mwg
  • Connections: 3 x cable (Signal - VCC - GND)
  • Pressure measurement range: 0 MPa to 1,6 MPa
  • Measurement accuracy: 0.5%
  • Input voltage: 5 V DC
  • Output voltage range: from 0.5 V to 4.5 V
  • Thread: G1 / 4
  • Adapter: G1 / 2 to G1 / 4
  • Response time: < 2 ms
  • Rest current: 2.8 mA
  • Operating pressure: < 2 MPa
  • Fault pressure: ≥3.0 MPa
  • Service life: ≥ 10 million measurements
  • Working temperature: from -20°C to 85°C
  • Module dimensions: 49 x 14 mm

Arduino water level sensor example

Level and Pressure sensor output Graph


£24.75
