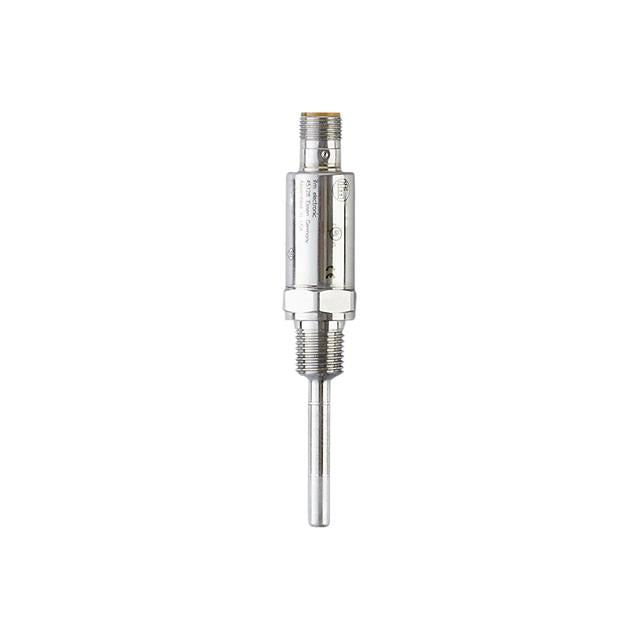

TA3313 4-20mA Temperature sensor is an industry standard and high performance 2 wire current loop temperature sensor. It converts the PT1000 RTD resistance temperature sensor into a high accuracy 2 wire 4-20mA current loop output temperature sensor.

TA3313 4-20mA Temperature Sensor Specifications

• Temperature Measurement Range:-18°C to 149°C 0°F to 300 °F
• Output Type:4-20mA current loop (2 wire)
• Voltage Supply: 10Vdc to 32Vdc
• Process Connection: 1/4" NPT external
• Electrical Connection: M12
• Current consumption: <30mA
• Accuracy: 0.3%
• IP rating: IP68
• PT1000 Class A element
• Electrical Output: 4-20mA current loop 2 wire
• Voltage Supply: 10Vdc to 32Vdc
• Electrical connection: 600mm Cable
• Temperature Connection: M10 Probe

Output example table

For model TA3313 the output table will be as follows

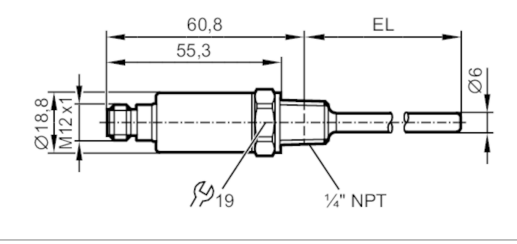

TA3313 4-20mA Temperature sensor Dimensions
