Key Features

✓ Class B PT1000 RTD temperature sensor for accurate temperature measurement
✓ Wide temperature range of -40°C to +200°C
✓ IP67 rated probe for reliable use in demanding environments
✓ Robust 316 stainless steel capped probe construction
✓ Compact 50 mm × 6 mm stainless steel sensing probe
✓ 1.4 m cable for flexible installation
✓ Good thermal response with durable probe construction
✓ Suitable for industrial, HVAC, process and general temperature measurement
✓ Same-day dispatch from the UK

The TT4-PT1000B is stocked and supplied from the UK.

PT1000 Sensor Technical Specifications

e.

Dispatch Times

Same Day despatch from the UK

Description

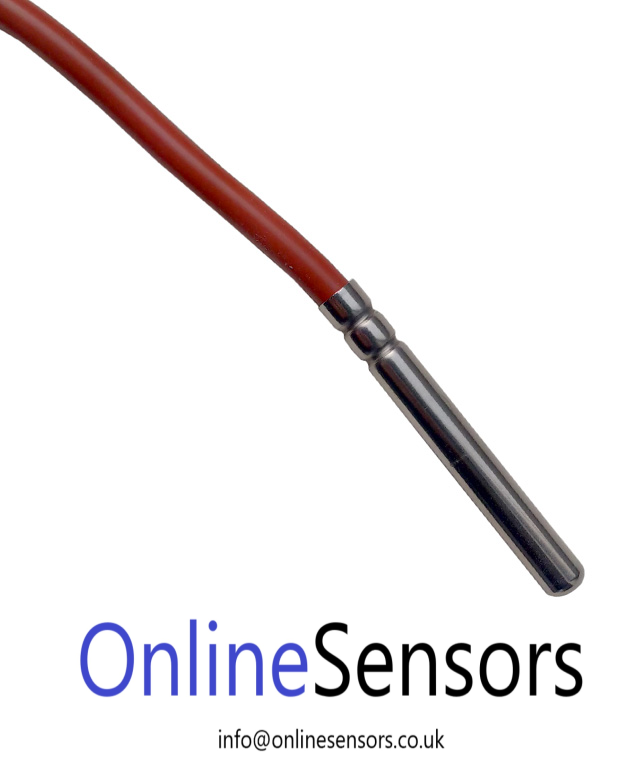

The TT4-PT1000B is a robust Class B PT1000 RTD temperature sensor designed for reliable temperature measurement across a wide operating range of -40°C to +200°C.

The sensing element is housed inside a durable 316 stainless steel probe, providing a compact and robust solution for industrial and general-purpose temperature monitoring.

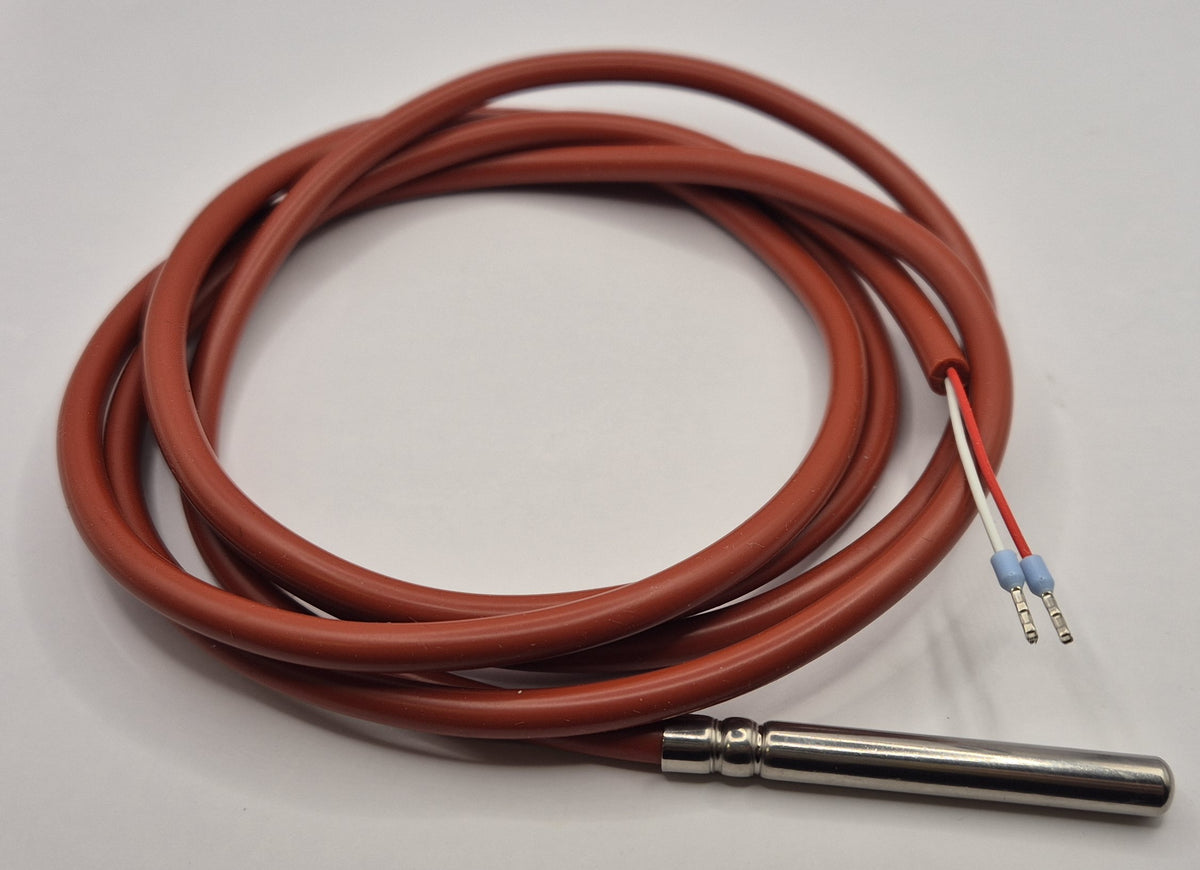

With a 50 mm long × 6 mm diameter probe and approximately 1.4 m of cable, the TT4-PT1000B is suitable for applications where a reliable wired PT1000 sensor is required.

The IP67-rated construction provides protection against dust and temporary water exposure, making the probe suitable for a wide range of industrial and environmental applications.

PT1000 RTD Technology

PT1000 sensors are platinum resistance temperature detectors (RTDs) with a nominal resistance of 1000 Ω at 0°C.

The resistance changes predictably with temperature, allowing the sensor to be connected to temperature controllers, PLCs, data acquisition systems, instrumentation and other RTD-compatible electronics.

Class B provides a defined tolerance according to the relevant RTD standard, making this sensor suitable for many industrial temperature measurement applications.

Applications

The TT4-PT1000B can be used for:

• Industrial temperature monitoring
• HVAC and building systems
• Process temperature measurement
• Machinery and equipment monitoring
• Heating and cooling systems
• Control panels and instrumentation
• Data acquisition systems
• Environmental temperature monitoring
• General-purpose PT1000 applications

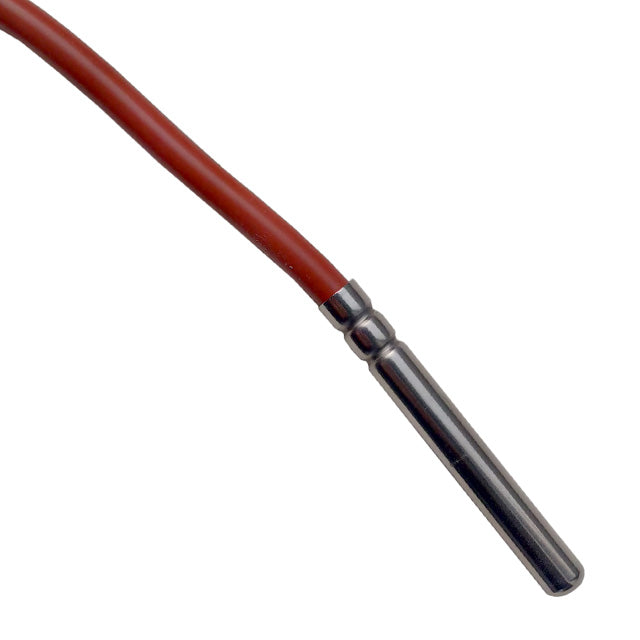

Probe Construction

The sensing probe is manufactured using 316 stainless steel, providing a durable construction suitable for industrial environments.

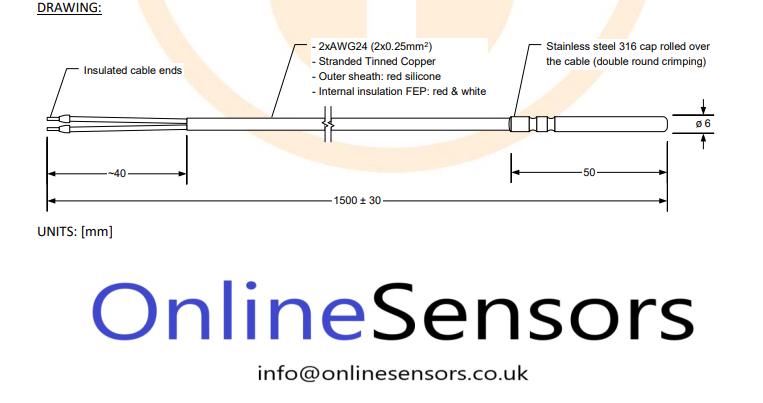

Probe dimensions:

• Length: 50 mm
• Diameter: 6 mm
• Material: 316 stainless steel
• Protection: IP67

The compact 6 mm diameter makes the probe suitable for installations where available space is limited.

Temperature Range

-40°C to +200°C

This wide operating range allows the TT4-PT1000B to be used for both low-temperature and elevated-temperature applications.
