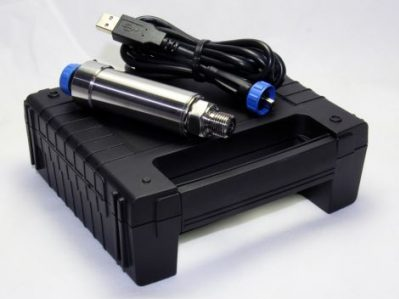

UPS-HSR USB Pressure Sensor

Pressure Ranges: -1 to +2.5 bar…0 to 5000 bar sealed gauge
Output Signal: USB
Accuracy: 0.15% FS
Electrical Connections: USB mini B cable
Media Compatibility: Titanium alloy
Process Connections: G1/4 or 1/4 NPT ≤ 1500 bar, and AE F-250-C female > 1500 bar
Special Features: Sampling rate up to 1000 Hz, resolution of 21 bits ≤ 5 Hz, or 16 bits > 5 Hz, compatible with C#, VB, Labview and Excel

USB pressure sensor Description

The UPS-HSR has been designed and developed for ease of use, reliable data collection and real time monitoring, to cover the majority of applications where a simple interface to a computer is required. Without the fuss of complicated interfaces, converters, external power supplies and USB driver issues, the UPS-HSR interface is simply a USB cable that powers the pressure sensor and has automatic recognition of the sensors that connect to the software.

The GS4200-USB© Digital Pressure Transducer has been designed to measure, analyse and record pressure directly on your computer without the need for costly I/O interface boards. It allows the user to measure up to 16 pressure inputs simultaneously and easily create customised test certificates.

The transducer is powered by the computer's USB port, data is then presented on the PC via the ESI-USB© configurable Windows Interface software. It has instant connection with auto-detection, and will configure automatically with your desktop, laptop or Windows tablet via USB protocol. The sample rate enables dynamic pressures to be measured with up to 21 bit resolution. For real-time analysis, data transferred to the PC is achieved without loss of accuracy or bandwidth. This pressure transducer is USB 2.0 compatible, the ESI-USB© interface configuration and analysis software is compatible exclusively with Windows© 8, 8.1 and 10. Data can be displayed in graphical or tabular form, with a choice of pressure units and fully adjustable scales. Data can be saved to a file or exported to Excel/ PDF.

Plug and play USB connection

Each UPS-HSR is supplied with a USB mini B socket, when properly connected to the supplied mating cable assembly with USB connection it provides IP66 protection to the pressure sensor which is ideal if you are installing the pressure sensor in wet or arduous conditions. Power is provided to the sensor from the computer’s USB port so no additional connections are required. The USB cable is 2m in length as standard, or alternatively this can be extended if required.

Product Description

UPS-HSR USB Pressure Sensor

Pressure Ranges: -1 to +2.5 bar…0 to 5000 bar sealed gauge
Output Signal: USB
Accuracy: 0.15% FS
Electrical Connections: USB mini B cable
Media Compatibility: Titanium alloy
Process Connections: G1/4 or 1/4 NPT ≤ 1500 bar, and AE F-250-C female > 1500 bar
Special Features: Sampling rate up to 1000 Hz, resolution of 21 bits ≤ 5 Hz, or 16 bits > 5 Hz, compatible with C#, VB, Labview and Excel

USB pressure sensor Description

The UPS-HSR has been designed and developed for ease of use, reliable data collection and real time monitoring, to cover the majority of applications where a simple interface to a computer is required. Without the fuss of complicated interfaces, converters, external power supplies and USB driver issues, the UPS-HSR interface is simply a USB cable that powers the pressure sensor and has automatic recognition of the sensors that connect to the software.

The GS4200-USB© Digital Pressure Transducer has been designed to measure, analyse and record pressure directly on your computer without the need for costly I/O interface boards. It allows the user to measure up to 16 pressure inputs simultaneously and easily create customised test certificates.

The transducer is powered by the computer's USB port, data is then presented on the PC via the ESI-USB© configurable Windows Interface software. It has instant connection with auto-detection, and will configure automatically with your desktop, laptop or Windows tablet via USB protocol. The sample rate enables dynamic pressures to be measured with up to 21 bit resolution. For real-time analysis, data transferred to the PC is achieved without loss of accuracy or bandwidth. This pressure transducer is USB 2.0 compatible, the ESI-USB© interface configuration and analysis software is compatible exclusively with Windows© 8, 8.1 and 10. Data can be displayed in graphical or tabular form, with a choice of pressure units and fully adjustable scales. Data can be saved to a file or exported to Excel/ PDF.

Plug and play USB connection

Each UPS-HSR is supplied with a USB mini B socket, when properly connected to the supplied mating cable assembly with USB connection it provides IP66 protection to the pressure sensor which is ideal if you are installing the pressure sensor in wet or arduous conditions. Power is provided to the sensor from the computer’s USB port so no additional connections are required. The USB cable is 2m in length as standard, or alternatively this can be extended if required.
