The USB C temperature sensor measures and logs the temperature Via USB C
USB C Temperature Sensor overview
It can stream temperature as well as record and log the temperature data on its internal flash for later retrieval when connected again by USB. This tiny USB C thermometer is ideal for monitoring the temperature of a computer or server room and raising an alert.

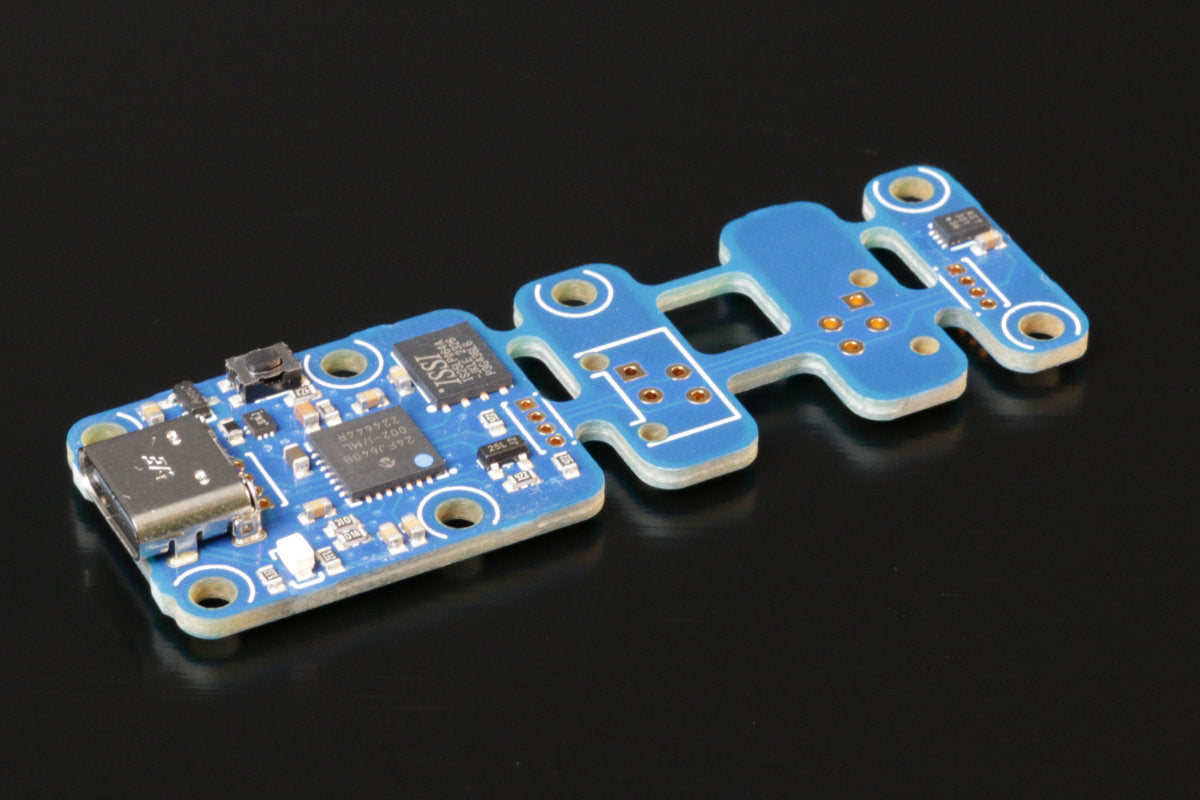

This circuit has been designed so that the sensor itself can be moved further away from the USB connector simply split the board into two parts and solder a 4-wire cable on the designated pads.
This device can be connected directly to an Ethernet network using a YoctoHub-Ethernet, to a WiFi network using a YoctoHub-Wireless-n and to a GSM network using a YoctoHub-GSM.
Sensor Technology
-
Model: MCP9804 (Microchip)
Accuracy Performance
- Measuring Range: -40 °C to +125 °C
- Accuracy: ±0.25 °C
- Sensitivity: 0.1 °C
- Refresh Rate: 10 Hz
Environmental Ratings
- Normal Operating Temperature: 5 °C to 40 °C
- Extended Operating Temperature: -30 °C to 85 °C
- Protection Class (IEC 61140): Class III
Software Compatibility
- Operating Systems: Windows (PC + IoT), Linux (Intel + ARM), macOS, Android
- Drivers: Driverless (Plug & Play)
- API / SDK / Libraries:
- Full USB Support: C++, Objective-C, C#, VB.NET, UWP, Delphi, Python, Java, Android, LabVIEW
- TCP Only: JavaScript, Node.js, PHP
Compliance and Accessories
- RoHS Compliance: RoHS III (2011/65/UE + 2015/863)
- Harmonized Tariff Code: 9032.9000

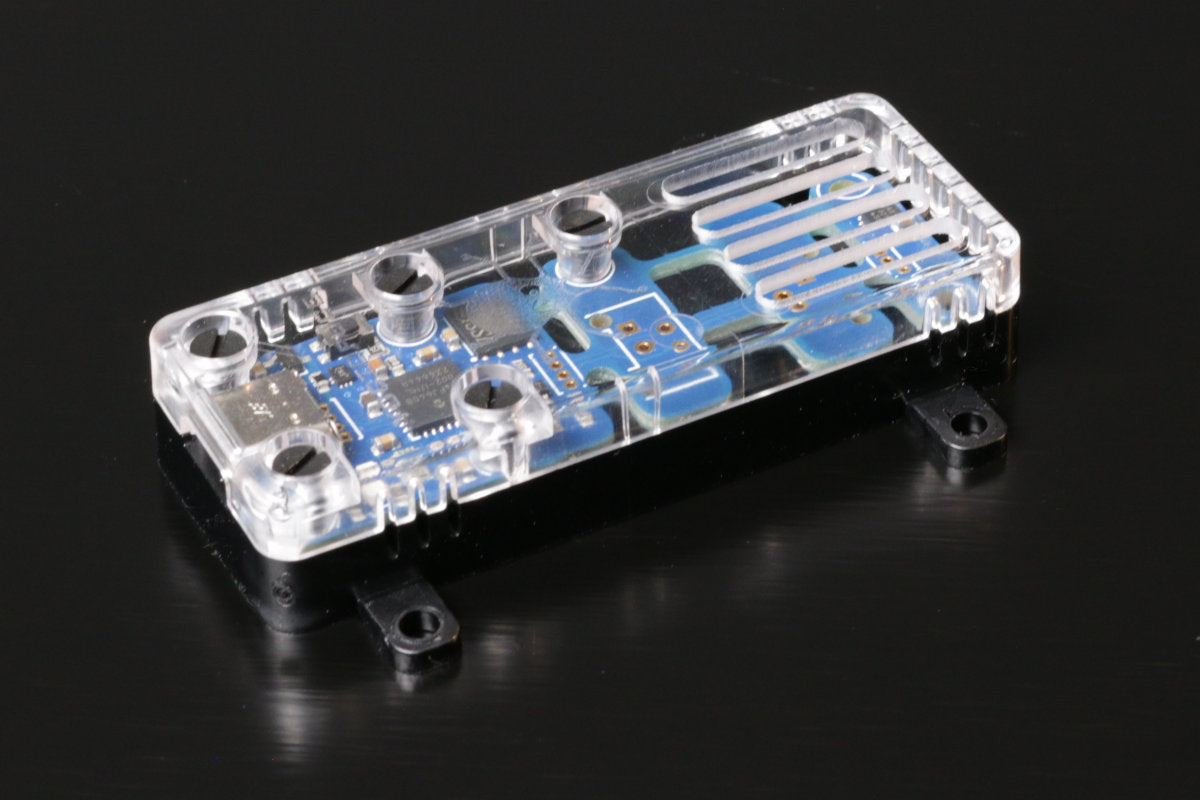

- Suggested Enclosure: YoctoBox-Long-Thin-Black-Vents
- Cables & Enclosures: Sold separately
OEM USB C Temperature Sensor
for bulk orders and/ or OEM applications please contact us for discounts and customisations
The USB C temperature sensor measures and logs the temperature Via USB C
USB C Temperature Sensor overview
It can stream temperature as well as record and log the temperature data on its internal flash for later retrieval when connected again by USB. This tiny USB C thermometer is ideal for monitoring the temperature of a computer or server room and raising an alert.
This circuit has been designed so that the sensor itself can be moved further away from the USB connector simply split the board into two parts and solder a 4-wire cable on the designated pads.
This device can be connected directly to an Ethernet network using a YoctoHub-Ethernet, to a WiFi network using a YoctoHub-Wireless-n and to a GSM network using a YoctoHub-GSM.
Sensor Technology
-
Model: MCP9804 (Microchip)
Accuracy Performance
- Measuring Range: -40 °C to +125 °C
- Accuracy: ±0.25 °C
- Sensitivity: 0.1 °C
- Refresh Rate: 10 Hz
Environmental Ratings
- Normal Operating Temperature: 5 °C to 40 °C
- Extended Operating Temperature: -30 °C to 85 °C
- Protection Class (IEC 61140): Class III
Software Compatibility
- Operating Systems: Windows (PC + IoT), Linux (Intel + ARM), macOS, Android
- Drivers: Driverless (Plug & Play)
- API / SDK / Libraries:
- Full USB Support: C++, Objective-C, C#, VB.NET, UWP, Delphi, Python, Java, Android, LabVIEW
- TCP Only: JavaScript, Node.js, PHP
Compliance and Accessories
- RoHS Compliance: RoHS III (2011/65/UE + 2015/863)
- Harmonized Tariff Code: 9032.9000
- Suggested Enclosure: YoctoBox-Long-Thin-Black-Vents
- Cables & Enclosures: Sold separately
OEM USB C Temperature Sensor
for bulk orders and/ or OEM applications please contact us for discounts and customisations
- Regular price
- £44.75
