The Yocto-Light-V5-C device is a USB ambient light sensor (lux meter) which allows you to measure ambient light. Measurements can be read directly via USB or stored on the device internal flash for later retrieval when connected again by USB.

USB Ambient Light Sensor Range

Version 5 of the Yocto-Light features a particularly wide measurement range: it can measure from 0.001 to 143'000 lux, at a maximum sample rate of 20Hz.

USB Ambient Light Sensor modularity

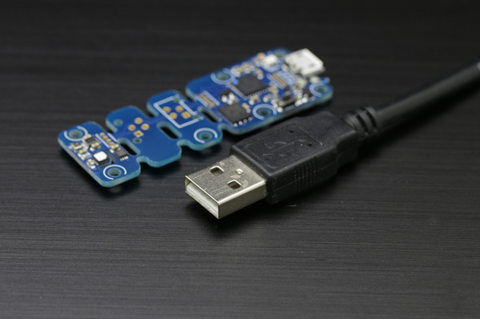

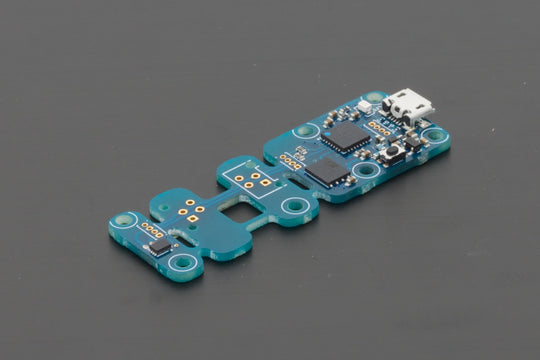

This circuit has been designed so that the sensor itself can be moved away from the USB part by a few meters: simply split the board into two parts and solder a 4-wire cable on the designated pads.

USB C Ambient Light Sensor Specifications

Product ID:LGHTMK5C
Product name:Yocto-Light-V5-C
USB connector:type C
Width:20mm
Length:35mm
Weight:3g
Sensor:TI OPT4003
Refresh rate:20Hz
Measuring range:0.001..143'000lx
Protection class, according to IEC 61140:class III
Normal operating temperature:5...40°C
Extended operating temperature¹:-40..85°C
Supported Operating Systems:Windows (PC + IoT), Linux (Intel + ARM), macOS, Android
Drivers:Driverless, no driver needed
API / SDK / Libraries:C++ Obj-C C# VB.NET UWP Delphi Python Java Android LabVIEW
API / SDK / Libraries (TCP only):Javascript Node.js PHP
RoHS compliance:RoHS III (2011/65/UE+2015/863)
Suggested enclosure:YoctoBox-Short-Thin-Black
Harmonized tariff code:9032.9000
Made in:Switzerland
