USB Temperature Sensor UTS-T11  IP67 -24°C to +103°C with USB [Plug and Play]

USB Temperature Sensor UTS-T11 IP67 -24°C to +103°C with USB [Plug and Play]

USB Temperature Sensor -24°C to +105°C with USB connection


UTS-T11 is a General purpose USB Digital thermometer TPE probe with USB serial connection, based on genuine high quality temperature sensors that provides an accurate 0.5 °C degree Celsius resolution .
Fuss free and easy to use no wiring required only a free USB Port for hobbyists industrial and commercial applications , customization is also available for the USB temperature sensor UTS-GP-T11-xx model
Perfect solution for monitoring IoT projects with a Raspberry Pi , temperature with a PC ,air temperature at home, in a greenhouse or in a server room.
  • IoT Projects
  • Raspberry Pi temperature sensor projects
  • Monitor server rooms
  • measuring temperature with PC
  • Greenhouse monitoring
  • industrial and commercial temperature measuring



Technical Details

  • Measuring range: –24 °C to +103 °C
  • USB Serial output
  • Accuracy: 0.5 °C
  • Resolution: 0.5 °C
  • Sampling frequency 10 Hz (100ms) with the Graphical user interface , 100 Hz
  • Works under Linux™ with kernel version at least 5.5 (Debian 11+, Fedora 32+, Mageia 8+, Manjaro 20.2.1+, OpenWrt 22.03+, Raspberry Pi OS 2022-04-04+, Rosa 12+, Ubuntu 20.10+ etc.) and Windows® 7, 8, 8.1, 10 and 11. CPU architecture independent: works also on MIPS and ARM (e.g. Raspberry Pi) .
  • Supported by OnlineSensors Python C++ code available , any support required can be supplier


Connection details for Serial Port

Baudrate115200 or 9600
8 Data bits
1 Stop Bytes
Parity None

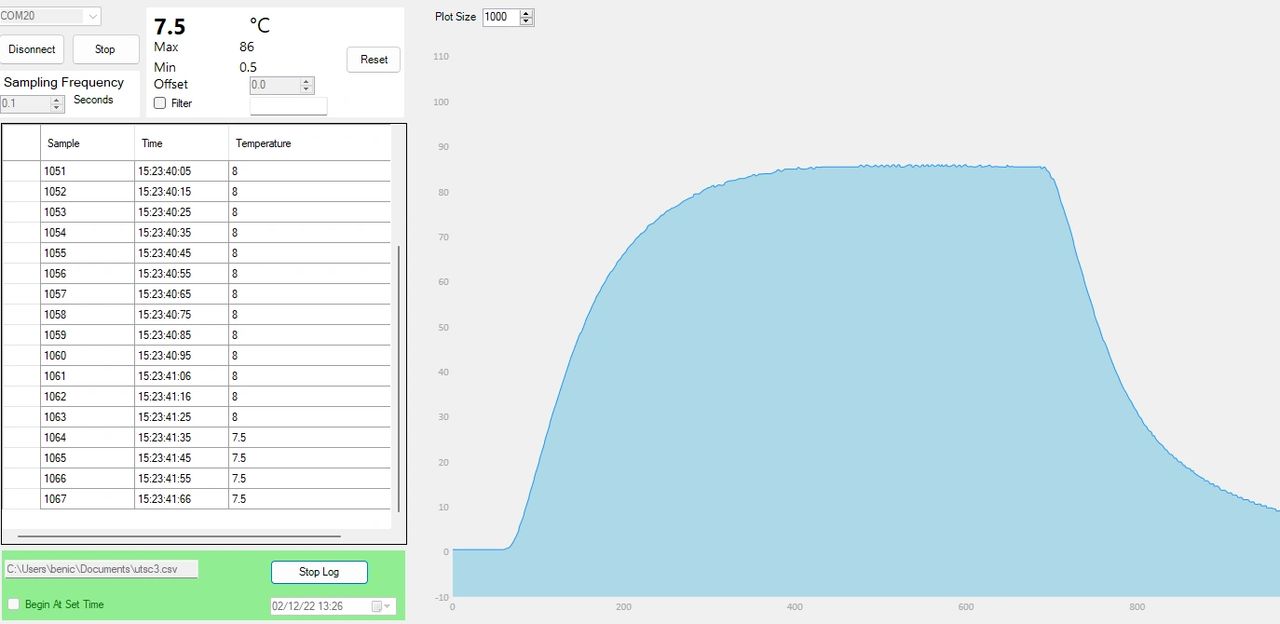

Temperature output Graphical user interface

The free graphical user interface UTS++ is used to log , sample and visualise data. Compatible with Windows® 7, 8, 8.1, 10 and 11.
the UTS++ GUI is available for download from the product page UTS-T11

USB temperature logging software


Raspberry Pi and Linux Temp Output

Using the example code that is supplied for free on the product page, temperature can be read out onto the Raspberry Pi interface, this is also portable to any Linux system with a USB serial port input
view the full Raspberry Pi linux temperature logging Article with the full guide o n how to integrate Linux with the USB temperature sensor

C++ USB Temperature Output

 Any Programming language that can interface with the USB serial port can log and monitor the temperature. We have C++ examples to demonstrate the ease of integration.
Raspberry Pi temperature sensor
