OnlineSensors Ltd supply pressure sensors to the autosport and motorsport industries also known as ASL,  they are compact and robust to handle the harsh automotive environment.

✔ 0.5–4.5V Ratiometric Output: Stable analog signal for accurate pressure readings
✔ Wide Pressure Range: Options from 1 to 100 Bar for autosport and industrial use
✔ Motorsport-Grade Design: Built for harsh environments — fuel, oil, brake and hydraulic systems
✔ Ideal for Embedded Systems: Compatible with Arduino, PIC, STM32, ESP32, Raspberry Pi & PLCs
✔ Direct ADC Connection: No external signal conditioning required
✔ Multiple Fittings Available: M10, NPT 1/8 and AN-03 options
✔ Wide Temperature Range: Reliable operation from –40 °C to +125 °C
✔ Secure Payments: Safe checkout with trusted payment providers
✔ Quick Delivery: Fast dispatch to keep your projects moving

if another pressure range is required please look through our products or contact us

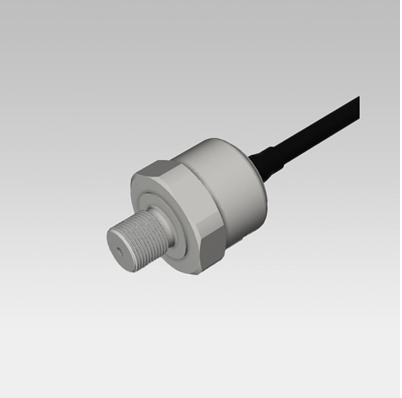

OSL 0-10 Bar Oil and Fuel Pressure Sensor Specifications

• Pressure range 0-10 Bar
• Supply 3-5Vdc
• Accuracy 0.5% NLH ( BFSL)
• Output ratiometric 0.5-4.5V Output
• Media Temperature -40 °C to +125 °C
• 26AWG FEP Screened Cable
• Datum Sealed Gauge
• Ceramic sensor for corrosive resistance
• M10 NPT1/8 and AN-03 Fittings available

10 Bar Autosport Pressure Sensor Applications

• Oil
• Fuel
• Coolant
• Boost
• Water

Autosport Fuel Pressure sensor  Description

These sensors are used in many vehicles in the automotive industry such as motorbikes and race cars.

They have a 0.5 to 4.5Vdc (at 5Vdc) ratiometric output Please see our Ratiometric output article for more information on this type of output.

A Peroxide cured o ring is used to seal the pressure sensor. this is compatible with corrosive media such as fuel and oil.

• M10 NPT1/8 and AN-03 Fittings available

We have automotive industry experts on hand to answer any queries or customisations get in touch.

Motorsport and Autosport 10 Bar pressure sensor

Pressure sensor Customisation and Design

What sets OnlineSensors Ltd apart from other instrumentation companies is that we are open to work with our customers to customise to their requirements , an example of what we can modify is below.

• Pressure ports
• Housing and enclosures
• Pressure Range
• Output connections

The above are just some examples , the best advice is to get in touch with us
