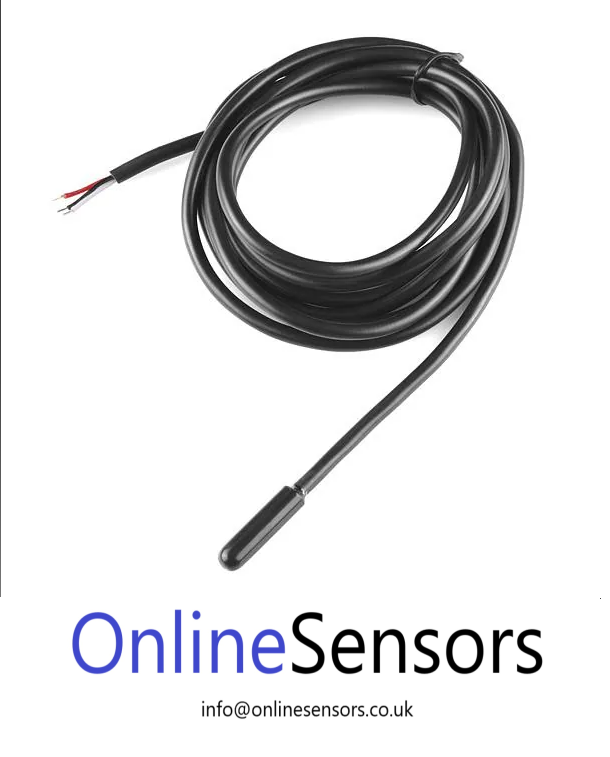

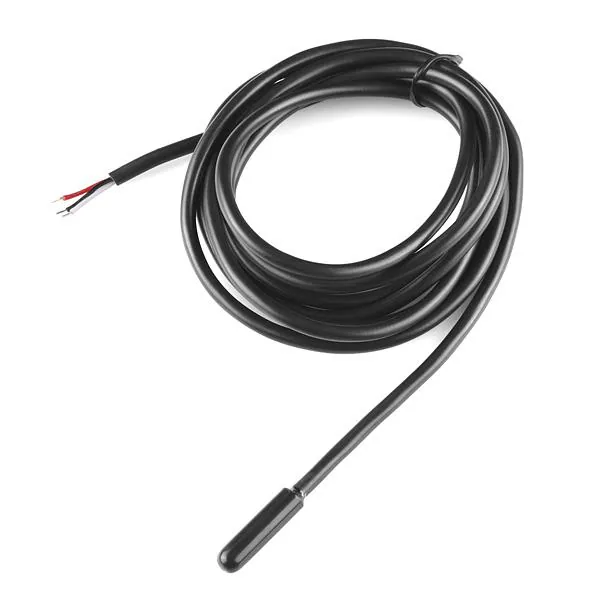

Thermistor probes offer protection to harsh and exposed environments. view our thermistor probe range here . Custom probes are also available. mor information on Thermistors can be found in our What...
Digital temperature sensors have an Internal Integrated circuit that will handle the temperature conversion.
The temperature value is placed in a digital register location. This temperature reading is available and transmitted when the correct command protocol has been used with the relevant addresses and instructions.
protocols include I2C , SPI and OneWire.
Digital temperature sensors can simplify electronic design and sometimes reduce amount of code needed to successfully read the temperature , however they are normally more expensive than passive temperature sensors.
USB Temp Sensor Description
USB Thermometer is a USB Temperature Sensor .
The OnlineSensors Ltd USB Temperature Sensor range are an easy way for engineering projects , OEMs and the end user to visualize, log and monitor the temperature, with a fast ASCII serial output rate of 7ms the USB Temperature Sensor is a simple accurate and cost effective USB Sensor.
Implementation support , customisations and command sets is provided for those who want to integrate the USB temperature sensor into their own systems.
Output - No Decoding
USB Temperature Sensor has USB serial ASCII format so any system with a USB serial port can interface with the USB Sensor. The temperature can be logged with the free USB Temperature Sensor GUI or by a bespoke system easily with the USB Temperature sensor embedded command set.
Use Cases
- PC Temperature
- Weather station
- ROCK Pi
- Raspberry Pi
- Environmental chamber monitoring
- Temperature control
- Server room
- 3d printers
- commercial fridges and cold rooms
Integrations
- ASCII Command set
- Raspberry Pi
- Linux
- Windows
- Free User GUI.
- Customisable user interface on request
