Fuel pressure sensors for the autosport and motorsport industries also known as ASL,  they are compact and robust to handle the harsh automotive environment.

Typically Fuel  pressure sensors are 10 bar or 20 bar however other ranges are selectable , if the required pressure range for the Fuel pressure sensor is not listed please proceed and contact with the required pressure range

Fuel Pressure Sensor Specifications

• Pressure range 0-100 Bar
• Ratiometric Supply 3-5Vdc
• Fixed Supply 8-16Vdc
• Accuracy 0.5% NLH ( BFSL)
• Output ratiometric 0.5-4.5V
• Media Temperature -40 °C to +125 °C

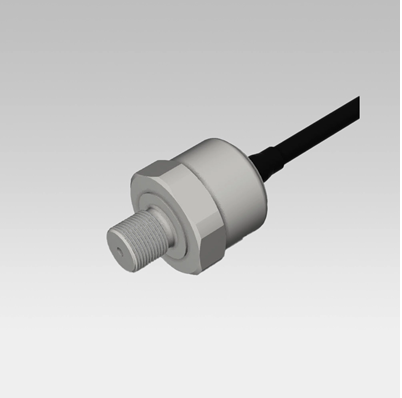

• 26AWG FEP Screened Cable 350mm
• Datum Sealed Gauge
• Ceramic sensor for corrosive resistance

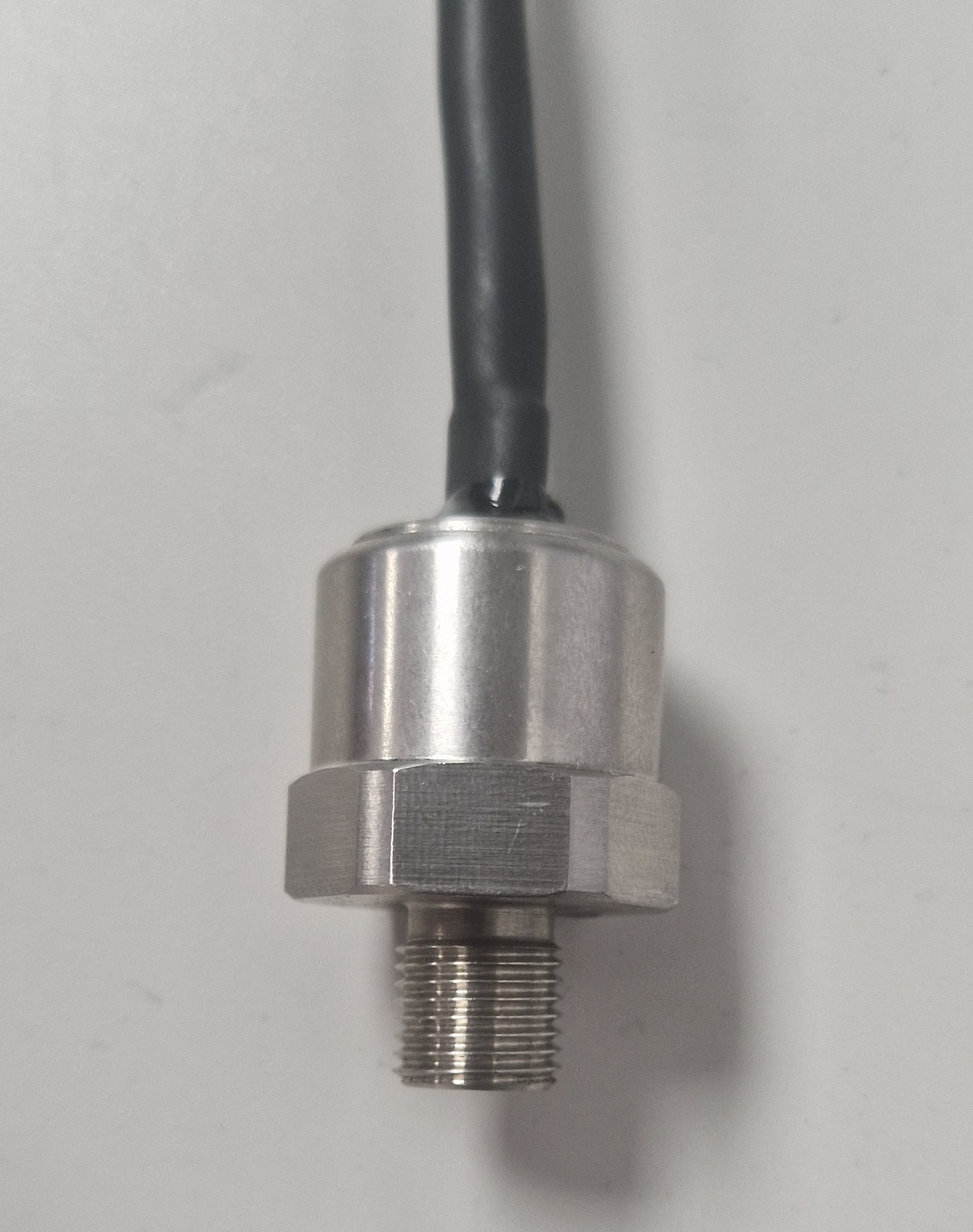

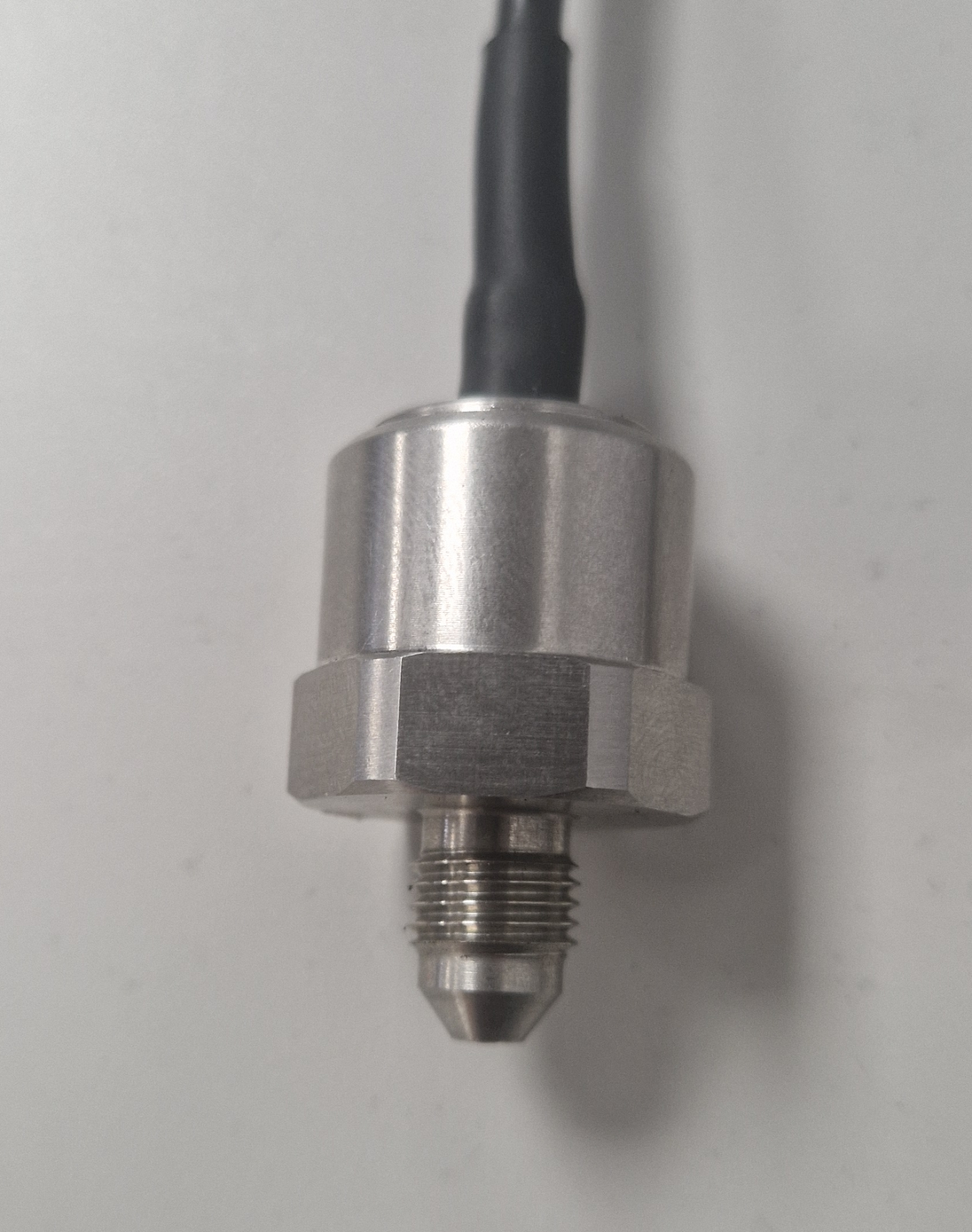

• M10 NPT1/8 and AN-03 Fittings available

Autosport Fuel Pressure sensor Applications

• Oil
• Fuel
• Coolant

• Water

Fuel Pressure sensor Description

These Fuel sensors are used in many vehicles in the automotive industry such as motorbikes standard cars and race cars. They are built for the automotive industry.

ASL Fuel Pressure sensors have a 0.5 to 4.5Vdc (at 5Vdc) ratiometric output Please see our Ratiometric output article for more information on this type of output.

A Peroxide cured o ring is used to seal the pressure sensor. this is compatible with corrosive media such as fuel and oil.

• M10 NPT1/8 and AN-03 Fittings available

We have automotive industry experts on hand to answer any queries or customisations get in touch.

Motorsport and Autosport Oil pressure sensor Customisation

What sets OnlineSensors Ltd apart from other instrumentation companies is that we are open to work with our customers to customise to their requirements , an example of what we can modify is below.

• Pressure ports
• Housing and enclosures
• Pressure Range
• Output connections

The above are just some examples , the best advice is to get in touch with us
