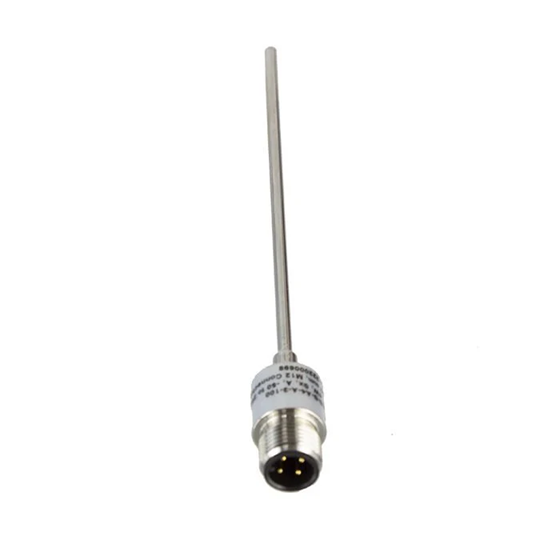

PT100 RTD 3mm industrial probe temperature sensor M12 connector 4-Wire as per IEC 751, Class A +/- 0.15ºC. Connecting cable available.

PT100 RTD 3mm industrial probe temperature sensor M12 connector is used in process industries where accuracy is required. They are manufactured with a 4 wire connection which is the highest you can achieve with RTD sensors. They have sealed ends to ensure long life and protection.

Technical Guidance on PT100 RTD Probes

View Our Articles on PT100 and PT100 RTD Temperature Sensors

• How to measure PT1000 Sensors
• RTD Temperature Converter

Features

• Pt100 Class A RTD element
• 316 stainless steel wetted parts
• ½” BSPP process and instrument connection
• 150mm PFA insulated flexible lead wires
• Can be used in 2, 3 or 4 wire configuration
• Standard sheath lengths of 50, 100, 150, and 200 mm

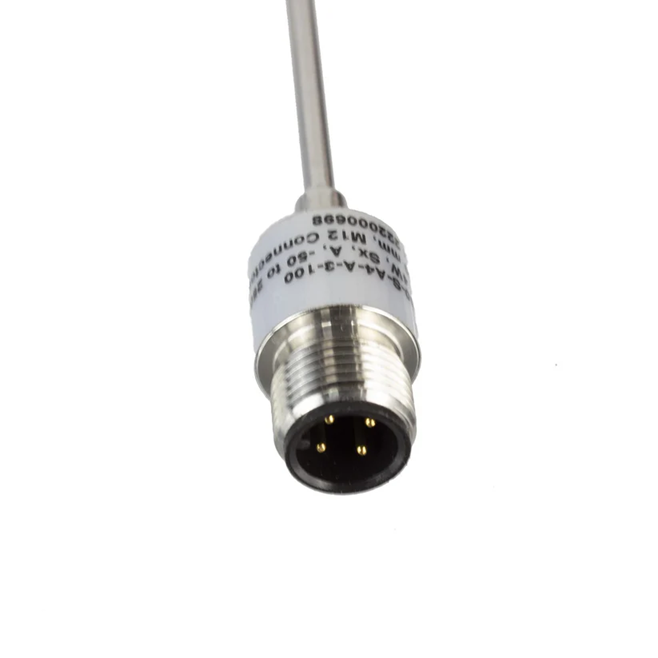

• IP67 Moulded 4-Pin A-Coded M12 Connector

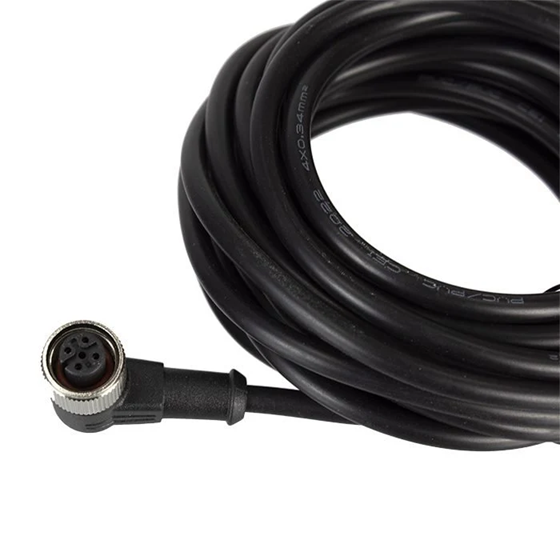

• Use with M12 female extension cables.
• In-Line, Remote and Wireless Transmitters Available

Details

• Type: Pt100, 4-Wire as per IEC 751
• No. of circuits: One (Single element)
• Accuracy: Class A (+/- 0.15ºC at 0ºC and +/- 0.3ºC at 100ºC)
• Sheath diameter: 3 mm
• Sheath Material: SS316L (1.4404)

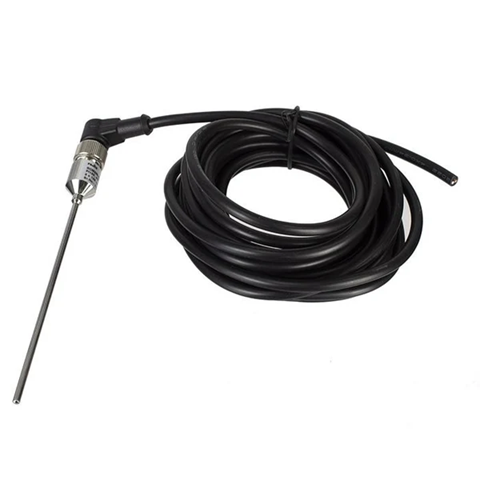

• Process Connection: M12 4pin right angle male plug with 5m cable
• Connection tip rating: 0 to 250ºC

Applications

• Field Replacement of Sensors
• Industrial Process Control
• Pharmaceuticals & Chemical Plants.
