Key Features

✓ 1N4007 standard rectifier diode
✓ 1A maximum average forward current
✓ 1000V maximum repetitive peak reverse voltage
✓ DO-41 axial through-hole package
✓ 30A peak surge current
✓ Low forward voltage drop
✓ Suitable for power supplies, rectification and general-purpose electronics
✓ Supplied on tape packaging
✓ Available for individual projects and production quantities

1N4007 rectifier diodes are supplied from the UK with fast dispatch.

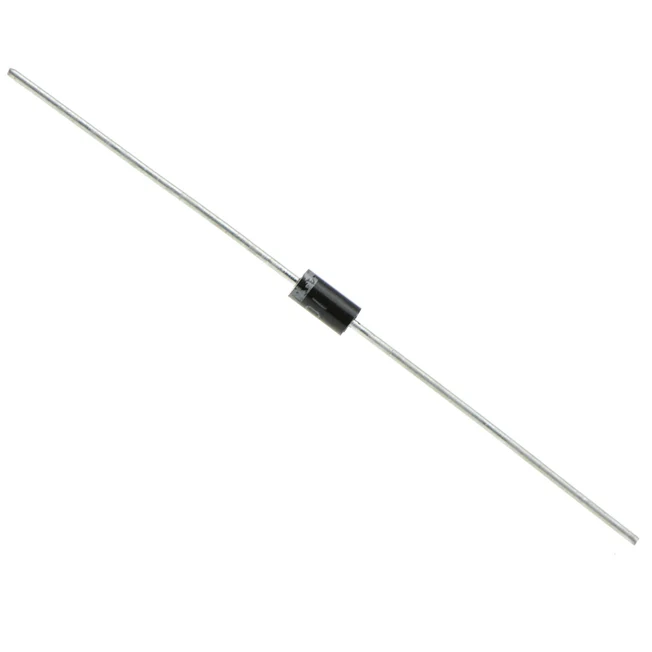

1N4007 Rectifier Diode

The 1N4007 is a widely used general-purpose silicon rectifier diode designed for applications requiring reliable AC-to-DC rectification and reverse-voltage protection.

With a 1A average rectified current rating and 1000V peak reverse voltage rating, the 1N4007 is a versatile choice for power supplies, electronic circuits, control equipment and general-purpose rectification.

The axial DO-41 through-hole package makes the diode straightforward to install on PCBs, prototype boards and wired assemblies.

Typical Applications

• AC-to-DC power supply rectification
• Bridge rectifier circuits
• Reverse-polarity protection
• Flyback and protection circuits
• General-purpose power electronics
• DIY and prototype electronics
• PCB and through-hole assembly

Technical Specifications
