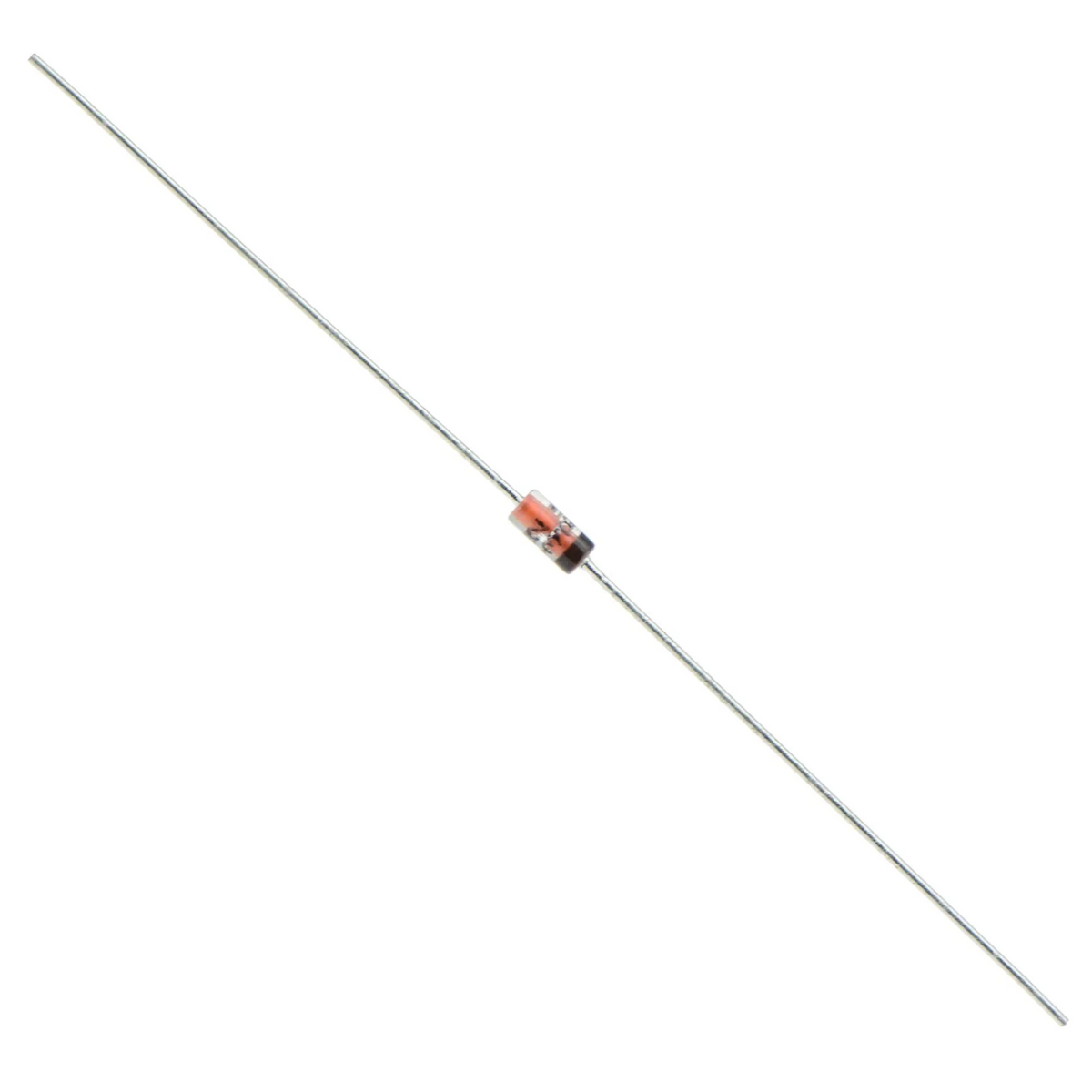

1N4148 at a Glance
100V Peak Reverse Voltage • 150mA Average Forward Current • Fast Switching • DO-35 • Through Hole
Key Features
- 100V maximum repetitive peak reverse voltage
- 150mA average forward current
- High-speed switching performance
- Silicon epitaxial planar construction
- Compact DO-35 glass axial package
- Through-hole mounting
- Low reverse leakage current
- Suitable for general-purpose signal switching
- 500mW power dissipation
- Suitable for prototypes, repairs and production electronics
Technical Specifications
| Specification | Details |
|---|---|
| Part Number | 1N4148 |
| Device Type | Small Signal Switching Diode |
| Technology | Silicon |
| Peak Reverse Voltage | 100V |
| Maximum Reverse Voltage | 75V |
| Average Forward Current | 150mA |
| Forward Continuous Current | 300mA |
| Maximum Forward Voltage | 1V |
| Peak Surge Current | 2A |
| Power Dissipation | 500mW |
| Reverse Recovery Time | Approx. 4ns* |
| Package | DO-35 |
| Mounting | Through Hole |
| Packaging | Tape |
| Body Dimensions | Approx. 3.5 × 1.5mm |
| Lead Length | Approx. 25.4mm |
| Operating Temperature | -65°C to +150°C* |
- Regular price
- £0.10
