The A-1511U is an isolated USB to RS232, RS422 or RS485 converter with automatic RS485 flow control, automatic switching between RS422 and RS485 and automatic baud rate selection. Features a minimum of 3000 VDC isolation protection and transient suppression on the RS-485 data lines for use in the harshest industrial environments. Supports Windows, Linux and Android operating systems.
A-1571U USB to RS485 Application Examples
- USB to RS485 Converter
- USB to MODBUS converter
- Enable a PC to communicate via USB
- Enable Raspberry Pi or ROCK to communicate with RS485
A-1571U USB to RS485 Converter specifications
- Isolated USB to RS-232/RS-422/RS-485 Converter
- Automatic Direction Flow Control On RS-485
- Screw terminals for RS232, RS422 and RS485
- Support Full(4-Wire)/Half-Duplex Communication.
- Minimum 3000 VDC Isolation Protection
- Auto Switching For RS-232 To RS-422 Or RS-485
- Auto Switching Baud Rate 300~115200bps
- Max. 1,200 m for speed 9.6 K bps; Max. 400 m for speed 115.2 K bp
- Maximum of 256 devices (Without repeater)
- Supplied with USB Lead
- DIN rail mount included
- Power: USB Port
- FTDI USB Driver
- Supports all Windows, Linux, Android
- Operating Temperature: -20°C to 75°C
The A-1511U is an isolated USB to RS232, RS422 or RS485 converter with automatic RS485 flow control, automatic switching between RS422 and RS485 and automatic baud rate selection. Features a minimum of 3000 VDC isolation protection and transient suppression on the RS-485 data lines for use in the harshest industrial environments. Supports Windows, Linux and Android operating systems.
A-1571U USB to RS485 Application Examples
- USB to RS485 Converter
- USB to MODBUS converter
- Enable a PC to communicate via USB
- Enable Raspberry Pi or ROCK to communicate with RS485
A-1571U USB to RS485 Converter specifications
- Isolated USB to RS-232/RS-422/RS-485 Converter
- Automatic Direction Flow Control On RS-485
- Screw terminals for RS232, RS422 and RS485
- Support Full(4-Wire)/Half-Duplex Communication.
- Minimum 3000 VDC Isolation Protection
- Auto Switching For RS-232 To RS-422 Or RS-485
- Auto Switching Baud Rate 300~115200bps
- Max. 1,200 m for speed 9.6 K bps; Max. 400 m for speed 115.2 K bp
- Maximum of 256 devices (Without repeater)
- Supplied with USB Lead
- DIN rail mount included
- Power: USB Port
- FTDI USB Driver
- Supports all Windows, Linux, Android
- Operating Temperature: -20°C to 75°C
- Regular price
- £72.25
Couldn't load pickup availability

Frequently Bought Together
-
Vendor: OnlineSensors
A-1051 RS485 Modbus IO Unit 16 Digital Inputs
Regular price £93.60 -
Vendor: OnlineSensors

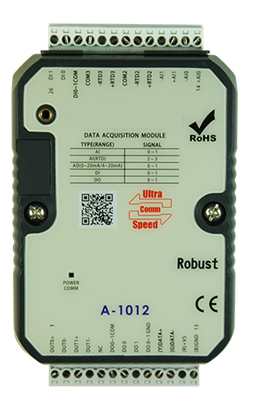

A-1012 RS485 and USB Modbus Multifunction IO Unit
