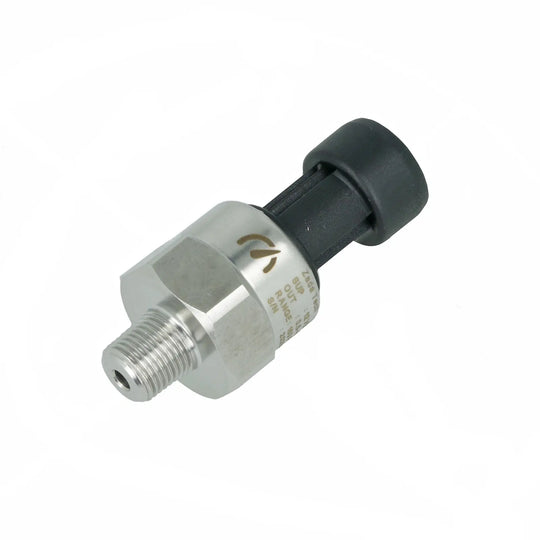

The P51‑15‑G‑UB‑I36‑4.5V‑000‑000 is an accurate 15PSI pressure sensor (vented gauge) from Amphenol’s MediaSensor™ P51 series. Designed for reliable performance in industrial automation, it provides an amplified analog voltage output and robust temperature compensation making it ideal for automotive, industrial and commercial applications.

P51 0.5V to 4.5V 16 PSI Technical Overview

• Pressure Type: Vented Gauge
• Operating Pressure: 15 PSI (≈ 103.4 kPa)
• Output: Analog Voltage, 0.5 V → 4.5 V
• Accuracy : ±1 %
• Supply Voltage: 5 V
• Electrical Connection: Cable + Wire
• Temperature Range: −40 °C → +105 °C
• Port Size: Male 1/8″ (3.18 mm) NPT, Threaded
• Termination: Integrated 3" cable = 7.5cm cable
• Package / Case: Cylinder, Box packaging
• Unique Features: Amplified output, temperature-compensated
• Series: MediaSensor™ P51
• Applications: Industrial automation systems
• Part Status: Active
• RoHS / REACH: RoHS‑compliant; REACH unaffected

P51 15PSI 0.5V to 4.5V Product Highlights

• Precise Low-Pressure Sensing: Ideal for measuring pressures up to 15 psi with consistent accuracy across extended temperature ranges.
• Ready-to-Use Analog Output: Delivers 0.5 – 4.5 V directly—perfect for integration with microcontrollers or analog data acquisition systems.
• Durable and Compact: Rugged metal body with a compact cylindrical form factor mounts easily via threaded NPT port.
• Built-in Compensation: Maintains accuracy across operating temperatures thanks to its temperature-compensated design.
• Easy Connectivity: Comes with a pre-attached 3" cable, simplifying installation and eliminating separate cabling.
• Quality and Compliance: Manufactured to industrial-grade standards, RoHS compliant, and currently available
