Key Features

✓ Class B PT100 RTD temperature sensor for reliable temperature measurement
✓ Wide temperature range of -40°C to +200°C
✓ IP67 rated probe for demanding environments
✓ Robust 316 stainless steel probe construction
✓ Compact 50 mm × 6 mm sensing probe
✓ 1.4 m cable for flexible installation
✓ Durable probe construction with good thermal response
✓ Suitable for industrial, HVAC, process and general temperature measurement
✓ Fast dispatch from the UK
✓ Technical support available from OnlineSensors Ltd

TT4-PT100B probes are stocked and shipped from the UK.

PT100 Technical Specifications

Description

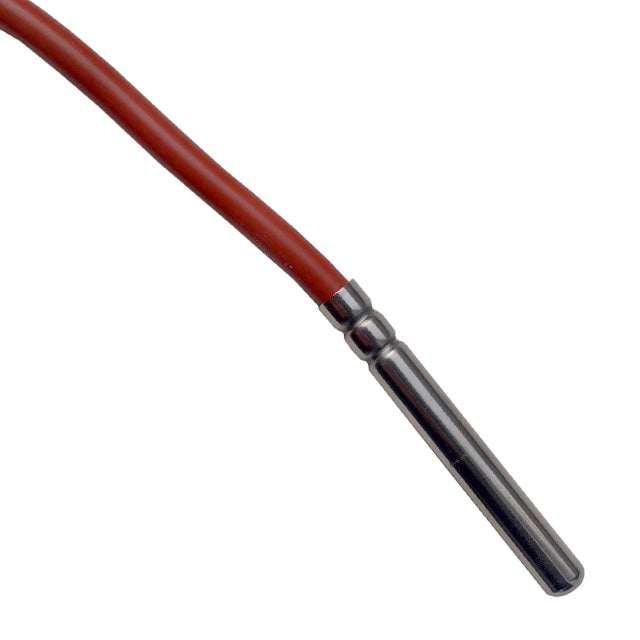

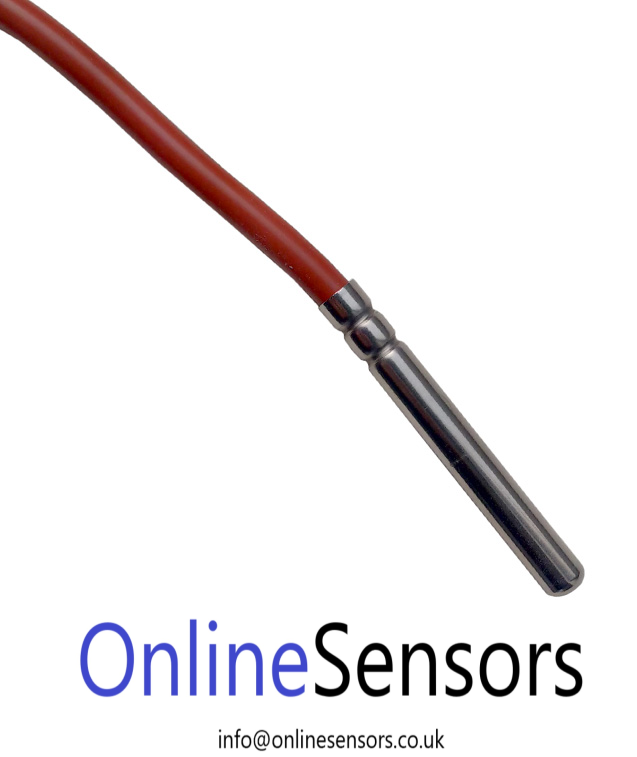

The TT4-PT100B is a robust Class B PT100 RTD temperature sensor designed for reliable temperature measurement over a wide temperature range of -40°C to +200°C.

The sensor uses a durable 316 stainless steel capped probe, providing a strong and compact solution for industrial and general-purpose temperature measurement.

The 50 mm long × 6 mm diameter probe is suitable for installations where a compact stainless-steel temperature sensor is required.

The sensor is supplied with a 1.4 m cable, providing convenient connection to temperature controllers, PLCs, data acquisition equipment and other PT100-compatible instrumentation.

PT100 RTD Technology

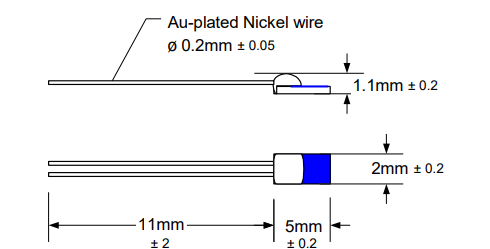

PT100 sensors are platinum resistance temperature detectors (RTDs) with a nominal resistance of 100 Ω at 0°C.

The electrical resistance of the platinum element changes predictably with temperature. This allows PT100 sensors to provide accurate and repeatable temperature measurements when connected to suitable RTD instrumentation.

The Class B specification provides a defined accuracy tolerance and makes the TT4-PT100B suitable for a wide range of industrial temperature measurement applications.

Applications

The TT4-PT100B can be used for:

• Industrial temperature monitoring
• HVAC systems
• Heating and cooling equipment
• Process temperature measurement
• Machinery and equipment monitoring
• Control panels
• PLC temperature monitoring
• Data acquisition systems
• Environmental monitoring
• General-purpose PT100 applications

316 Stainless Steel Probe

The sensing probe is constructed from 316 stainless steel, providing a durable solution for industrial temperature measurement.

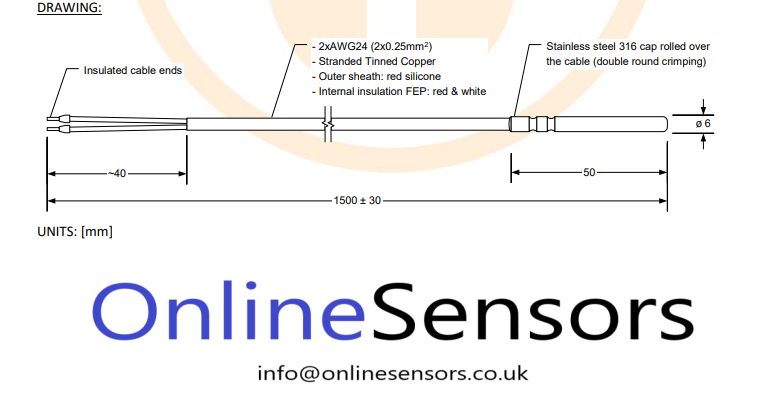

Probe Dimensions

• Probe length: 50 mm
• Probe diameter: 6 mm
• Material: 316 stainless steel
• Protection: IP67

The compact 6 mm diameter allows the probe to be installed where space is limited.

Temperature Range

-40°C to +200°C

The wide operating range makes the TT4-PT100B suitable for both low-temperature and elevated-temperature measurement applications.

IP67 Protection

The IP67-rated probe provides protection against dust ingress and temporary water immersion.

This makes the TT4-PT100B suitable for many industrial environments where the sensor may be exposed to dust, moisture or occasional water contact.
